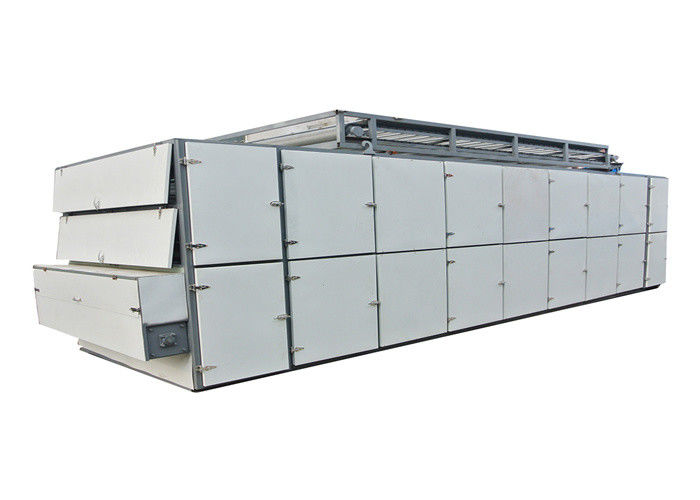

150-900kg/h Stainless Steel Belt Dryer machine Cassava Chip Dryer 41.9kw

Product Details

Brand Name: JingSu ShengMan

Certification: CE and ISO9001

Model Number: DW

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD20000-USD300000

Packaging Details: Plywood Cases

Delivery Time: 60-90days

Payment Terms: L/C, T/T

Supply Ability: 10sets

Get Best Price
High Light:

900kg/H Steel Belt Dryer

,

900kg/H Cassava Chip Dryer

,

Cassava Chip Dryer 41.9kw

Place Of Origin:
Jiangsu China
Condition:
New
Voltage:
220v-450v
Warranty:
1 Year
Drying Strength:
150-900kg/h
Quantity Of Uni:
4*3 -5*3
Length Of Drying:
24m-30m
Material:
Stainless Steel, Carbon Steel
Temperature:
50-140℃
Power:
35.3-72.5kw
Place Of Origin:
Jiangsu China
Condition:
New
Voltage:
220v-450v
Warranty:
1 Year
Drying Strength:
150-900kg/h
Quantity Of Uni:
4*3 -5*3
Length Of Drying:
24m-30m
Material:
Stainless Steel, Carbon Steel
Temperature:
50-140℃
Power:
35.3-72.5kw
150-900kg/h Stainless Steel Belt Dryer machine Cassava Chip Dryer 41.9kw



Heat Pump Garlic Pepper Ginger Seasoning Spice Seeds Meat Vegetable Mesh Belt Dryer Drying Machine





Production Description



The mesh belt dryer is a drying device that uses a steel mesh as a conveyor belt to carry out continuous drying. Since the conveyor belt is mesh-shaped, it is suitable for drying rules or irregular various blocks (such as charcoal, various mineral powder forming, food, vegetables, etc.). This unit can be used with other equipment. It can also be used alone. The equipment can be widely used in metallurgy, building materials, ceramics, chemical industry, etc., and the mesh belt dryer is also an ideal equipment for drying and processing food, vegetables, Chinese herbal medicines and vacuum packaging products.






150-900kg/h Stainless Steel Belt Dryer machine Cassava Chip Dryer 41.9kw 0







Operation



The utility model is provided with a door on both sides of the baking room to facilitate the installation and maintenance of the equipment in the baking room and the troubleshooting of the equipment;An observation hole is set on the door to observe the baking condition in real time.The baking tray is arranged on the chain. Driven by the chain, continuous baking can be realized.The chain and the baking sheet are connected by a movable matching connection, which can quickly remove the baking sheet and put the baking sheet on the baking sheet;The driving device is driven by a frequency conversion motor, which can adjust the running speed of the chain according to the required baking time.The utility model USES electric heating elements to heat and the temperature of the baking room can be adjusted by a temperature control device.The utility model can realize continuous baking operation with high thermal efficiency and baking efficiency.The utility model has simple structure, reliable operation and is suitable for drying the flower and leaf of industrial hemp.





150-900kg/h Stainless Steel Belt Dryer machine Cassava Chip Dryer 41.9kw 1





Technical parameters



spec unit DW3-1.2-8 DW3-1.2-10 DW3-1.6-8 DW3-1.6-10 DW3-2-8 DW3-2-12
unit number   4*3 5*3 4*3 5*3 4*3 5*3
drying length  m 24 30 24 30 24
thickness of material mm 10-80
temperature 60-130
steam pressure Mpa 0.2-0.8
steam consumption kg 360-1350
drying strength kg/h 150-900
power kw 35.3 41.9 46.5 55.5 60.5 72.5



Remark:

1. Parameters above in the table are regular model for reference;

2. We could make special model / size according to the customer's actual situation or requirement, please contact sales team to konw more details about vegetable dryer.



150-900kg/h Stainless Steel Belt Dryer machine Cassava Chip Dryer 41.9kw 2





Application of Mesh Belt Dryer




The mesh belt dryer machine mainly used for fruit and vegetable, traditional Chinese medicinal materials and other agricultural and sideline products mass continues dewatering drying, the equipment easy to operate, variation of environment factors, drying process health and protect environment.





Advantage:



1. For the whole processing line need 1-2 people to operate.
2. rech drying experience and have many sucess working sites can vist.
3. Saving energy,for our flakes drying machine not only according to heat to dry,but also according to strong air.So the drying efficiency and capacity improve alot.
4.For our drying machine is low speed rotation,so it dont have spare parts and easy to maintenance.
5.Stainless steel material to ensure the product reach hygienic standard.
6.After make contract and the seller will dispatch engineer to buyer's working sites help buyer install the machine until the machine get good drying effect,then our engineer will back to our country.



150-900kg/h Stainless Steel Belt Dryer machine Cassava Chip Dryer 41.9kw 3




Company Introduction



Jiangsu Shengman Drying Equipment Engineering Co.,Ltd, established in 2011, known as a local leading high-tech enterprise, is located in Zhenglu town, Changzhou, Jiangsu, China. Shengman is a large-scale production enterprise in China drying industry with a registered capital of 35,000,000 RMB, specialized in designing &manufacturing various kinds of dryers, granulators, mixers, grinders ,dust removers, etc. Shengman owns an area of over 200,000㎡, and realizes annual sales of over 70,000,000RMB for consecutive years. Shengman has passed European Union CE authentication, ISO 9001 quality management system certification and got good bank credit for AAA. Now Shengman has been one of the largest drying equipment production enterprises in East China and keeping leading the drying industry’s development.
