Product Details
Place of Origin: CHANGZHOU
Brand Name: Xin Shengman
Certification: ISO9001 and CE
Model Number: Hollow Paddle Dryer
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Price: USD1,5000-USD20,3000
Packaging Details: Plywood cases
Delivery Time: 30-60 days
Payment Terms: T/T
Supply Ability: 6sets/Month
Voltage: |
Customized |
Power: |
Variable |
After-sales Service: |
Engineers Available To Service Machinery Overseas |
Warranty: |
1 Year |
Material: |
304 Stainless Steel |
Heating Method: |
Hot Water/steam/oil |
Capacity: |
As U Requirement |
Heating Source: |
Steam+electricity |
Model: |
KJG-9 KJG-13 KJG-18 KJG-24 KJG-62, ETC |
Condition: |
New |
Application: |
Sludge |
Voltage: |
Customized |
Power: |
Variable |
After-sales Service: |
Engineers Available To Service Machinery Overseas |
Warranty: |
1 Year |
Material: |
304 Stainless Steel |
Heating Method: |
Hot Water/steam/oil |
Capacity: |
As U Requirement |
Heating Source: |
Steam+electricity |
Model: |
KJG-9 KJG-13 KJG-18 KJG-24 KJG-62, ETC |
Condition: |
New |
Application: |
Sludge |

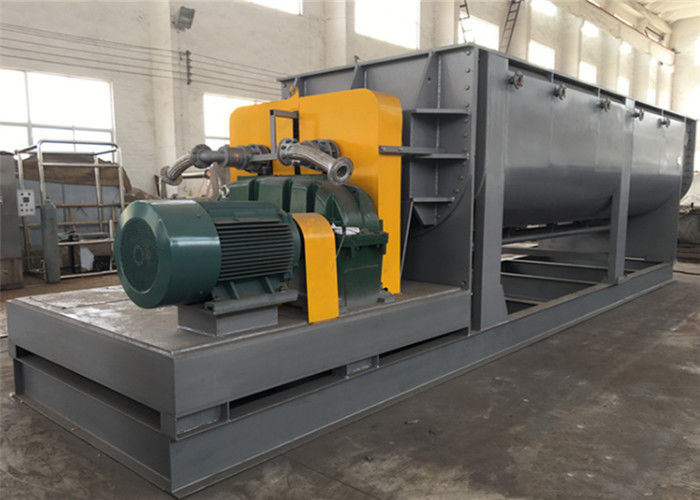

Hot Sale Environmental Protection Industry Sludge JYG Series Hollow Paddle Drying Machine
Features
• Adopts combination heating way of jacket and inside mixing, its heating conducting area is large, thermal efficiency is high.
Being installed stirrer in the machine, it makes raw material in cylinder, so the uniformity to be heated of raw materials is raised greatly.
• Being installed stirrer in the machine, pulpiness, paste-like mixture or power raw materials can be dried easily.
Product introduction
The paddle dryer is a machine used to heat treat powders, granulates, filter cakes and pasty products in a full-continuous process.
These processes vary from drying, cooling, crystallizing and calcimining to melting, evaporating, solvents, sterilizing, etc
The paddle dryer has a heated through containing rotating heated paddle shafts. The product is fed into the front of the machine. The through is oriented at a small angle of inclination, placed slightly in unloading position. The product moves to the outlet as a result of gravity. The paddles do not have a transport function.
They are designed for maximum heat transfer. At the outlet side, the product moves out of the machine via the overflow unit.
Technical parameters
| Model | KJG-2.7 | KJG-24 | KJG-52 | KJG-81 | KJG-110 |
| Heat transfer area | 2.7 | 24 | 52 | 81 | 110 |
| effective volume | 0.06 | 1.53 | 3.96 | 6.43 | 9.46 |
| revolution | 15-30 | 10-20 | 10-20 | 5-15 | 5-10 |
| power | 2.2 | 11 | 30 | 55 | 95 |
| width of dryer body | 306 | 1118 | 1474 | 1828 | 2210 |
| total width | 736 | 1474 | 1854 | 2286 | 2668 |
| length of dryer body | 1956 | 3454 | 5258 | 6020 | 6122 |
| total length | 2972 | 6147 | 8306 | 9678 | 9880 |
| distance between feeding and disharging | 1752 | 3150 | 4954 | 5562 | 5664 |
| height in center | 380 | 1066 | 1220 | 1220 | |
| total height | 762 | 2032 | 2464 | 2668 | |
| steam inlet | (2) 3/4 | (2) 1 | (2) 11/2 | (2) 11/2 | (2) 2 |
| water outlet | (2) 3/4 | (2) 1 | (2) 11/2 | (2) 11/2 | (2) 2 |
Applications
• The materials from such as the medicine t food , chemical industry, etc. can be dried.
• Suitable for pulpiness, paste-like mixture or power raw material.
• Temperature sensing material requiring the low temperature to be dried.
• Raw materials that are easy to oxidize or explode and have strong irritative or toxic.
• Demand to retrieve of the organic solvent.
Pre-sale
1. According to your needs, select right model for you.
2. According to your special requirements, design customized solution and manufacture customized products for you.
3. Welcome your visit.
Sale
1. Sign contract, pay deposit, we arrange production.
2. Product acceptance.
3. Help you formulate construction scheme.
After-sale
1. Assign engineer service for you on-site freely.
2. Install and adjust device, train how to operate.
3. After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.
