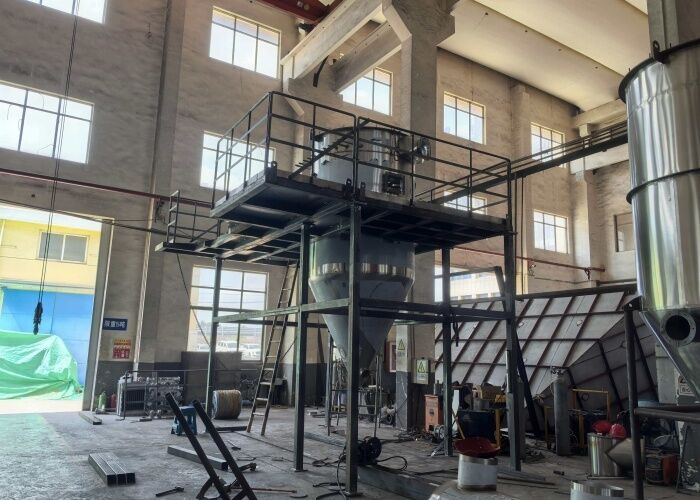

Spray Drying Plant Extracts ,Efficient Herbal Powder Production Machine
Introduction
Maximize the value of your agricultural and plant extract products with our cutting-edge spray drying solutions. From herbal extracts to essential oils and natural supplements, our spray dryers turn liquid extracts into fine, stable powders — preserving bioactive compounds, aroma, and nutrients. Ideal for farmers, herbal producers, and plant-based product manufacturers in the world.
How It Works – Spray Drying for Plant Extracts & Agriculture Products
- Liquid Extraction: Fresh plant or agricultural materials are processed into a concentrated liquid extract.
- Atomization: The liquid extract is sprayed into fine droplets using a high-speed nozzle or rotary atomizer.
- Hot Air Drying: Droplets instantly contact hot air in the drying chamber, removing moisture while preserving active ingredients.
- Powder Collection: Dry powder is separated from the air stream using a cyclone or filter system.
- Packaging: The stable, uniform powder is collected for storage, packaging, or further processing.
Key Advantage: Spray drying transforms sensitive plant extracts into high-quality, shelf-stable powders while retaining nutrients, flavors, and bioactive compounds.
Technical Parameters:
| Model |
PLG |
| 5 |
25 |
50 |
100 |
150 |
200-2000 |
| inlet temperatyre ℃ |
140-350 automatically controlled |
| outlet temperatyre ℃ |
80-90 |
| Max water evaporation capacity kg/h |
5 |
25 |
50 |
100 |
150 |
200-2000 |
| centrifugal spraying nozzle transmission mode |
compressed air transmission |
mechaical transmission |
| rotation speed (r.p.m) |
25000 |
18000 |
18000 |
18000 |
15000 |
8000-15000 |
| spraying desc diameter (mm) |
50 |
100 |
120 |
140 |
150 |
180-340 |
| max electric heating power (kw) |
9 |
36 |
63 |
81 |
99 |
settled by customer |
| overall dimensions |
1.8*0.93*2.2 |
3*2.7*4.26 |
3.7*3.2*5.1 |
4.6*4.2*6 |
5.5*4.5*7 |
depends on tryer |
| dried powder collection |
≥95 |
≥95 |
≥95 |
≥95 |
≥95 |
≥95 |
Key Features
- Gentle Drying for Sensitive Extracts: Protects active ingredients and natural flavors.
- High Yield & Consistency: Uniform powder particle size ensures superior solubility and quality.
- Versatile Applications: Suitable for plant extracts, herbal powders, essential oils, fruit & vegetable extracts.
- Hygienic & Easy to Operate: Compliant with food and pharmaceutical safety standards.
- Customizable Production Capacity: From small-scale R&D to large industrial production lines.
Benefits for Agricultural & Herbal Businesses
- Preserve the natural potency and aroma of extracts
- Extend shelf life and simplify storage and transportation
- Enable production of high-quality powdered supplements and food ingredients
- Support sustainable agricultural product processing
FAQs – Spray Dryers for Agriculture & Plant Extracts
Q1: Can your spray dryer handle heat-sensitive plant extracts?
A: Yes. Our spray dryers use precise temperature control and gentle drying technology to protect active ingredients, aroma, and color.
Q2: What types of plant extracts can be processed?
A: Herbal extracts, essential oils, fruit & vegetable extracts, botanical supplements, and other agricultural liquids.
Q3: What production capacities are available?
A: We offer models ranging from small-scale lab units to industrial-scale production lines, customizable for your needs.
Q4: How uniform is the powder particle size?
A: Our advanced atomization technology ensures consistent, fine, and soluble powders suitable for high-quality products.
Q5: Is the equipment easy to clean and maintain?
A: Yes. Our machines are designed with hygiene and easy maintenance in mind, meeting food, pharmaceutical, and herbal product standards.
Q6: Can this technology improve product shelf life?
A: Absolutely. Spray drying removes moisture, reducing spoilage and enabling long-term storage without losing potency.
