Product Details
Place of Origin: CHANGZHOU
Brand Name: Xin Shengman
Model Number: Hollow Paddle Dryer
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Price: USD1,5000-USD20,3000
Packaging Details: Plywood cases
Delivery Time: 30-60 days
Payment Terms: T/T
Supply Ability: 6sets/Month
Certification: |
ISO9001 CE |
Voltage: |
Customized |
Power: |
Variable |
After-sales Service: |
Engineers Available To Service Machinery Overseas |
Warranty: |
1 Year |
Material: |
304 Stainless Steel |
Heating Method: |
Hot Water/steam/oil |
Capacity: |
As U Requirement |
Heating Source: |
Steam+electricity |
Model: |
KJG-2.7 KJG-13 KJG-18 KJG-73 KJG-110 ETC |
Condition: |
New |
Dimension: |
Custom-made |
Certification: |
ISO9001 CE |
Voltage: |
Customized |
Power: |
Variable |
After-sales Service: |
Engineers Available To Service Machinery Overseas |
Warranty: |
1 Year |
Material: |
304 Stainless Steel |
Heating Method: |
Hot Water/steam/oil |
Capacity: |
As U Requirement |
Heating Source: |
Steam+electricity |
Model: |
KJG-2.7 KJG-13 KJG-18 KJG-73 KJG-110 ETC |
Condition: |
New |
Dimension: |
Custom-made |

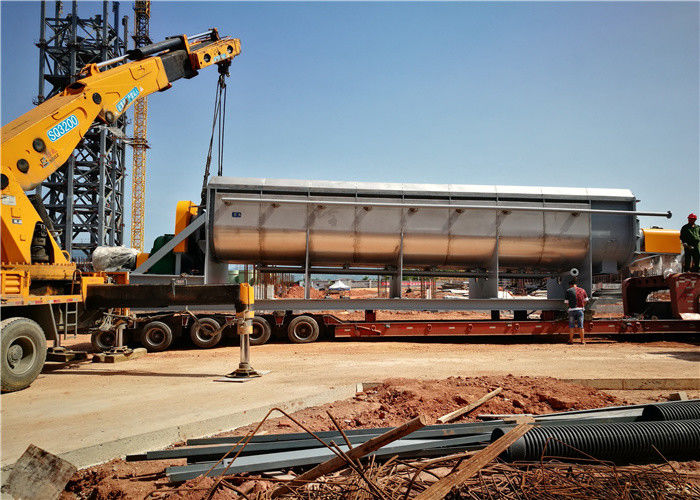

Automatic Hollow Paddle Dryer for Mud Concrete Mixer Hollow Blade Drying with Spare Parts
Description
The blade dryer has been successfully used in food, chemical, petrochemical, dye, industrial sludge and other fields. The characteristics of heat transfer, cooling and stirring of the equipment enable it to complete the following unit operations: combustion (low temperature), cooling, drying (solvent) recovery) heating (melting), reaction and sterilization. The stirring blade is also a heat transfer surface, which increases the heat transfer area per unit effective volume and changes the processing time. The wedge-shaped blade heat transfer surface has a self-cleaning function. The compression-expansion stirring function makes the materials mixed and uniform. The materials move along the paired "plug flow".
HEAT SOURCES(Temperature at 180°C - 250°C)
Heating by Steam Steamenters the hollow shaft through a rotary joint and is evenly distributed to all paddles. Condensate is removed with each revolution. Heating by Hot Oil (thermal fluid) Hot oil (thermal fluid) enters and exits the hollow shaft through a rotary joint. Pressure from the supply pump forces liquid through the hollow paddles.
Technical parameters
| Model | KJG-2.7 | KJG-24 | KJG-52 | KJG-81 | KJG-110 |
| Heat transfer area | 2.7 | 24 | 52 | 81 | 110 |
| effective volume | 0.06 | 1.53 | 3.96 | 6.43 | 9.46 |
| revolution | 15-30 | 10-20 | 10-20 | 5-15 | 5-10 |
| power | 2.2 | 11 | 30 | 55 | 95 |
| width of dryer body | 306 | 1118 | 1474 | 1828 | 2210 |
| total width | 736 | 1474 | 1854 | 2286 | 2668 |
| length of dryer body | 1956 | 3454 | 5258 | 6020 | 6122 |
| total length | 2972 | 6147 | 8306 | 9678 | 9880 |
| distance between feeding and disharging | 1752 | 3150 | 4954 | 5562 | 5664 |
| height in center | 380 | 1066 | 1220 | 1220 | |
| total height | 762 | 2032 | 2464 | 2668 | |
| steam inlet | (2) 3/4 | (2) 1 | (2) 11/2 | (2) 11/2 | (2) 2 |
| water outlet | (2) 3/4 | (2) 1 | (2) 11/2 | (2) 11/2 | (2) 2 |
Application
This dryer is widly used in pharmaceutical industry, foodstuff industry, chemical industry and etc. Especially be sutiable for the following materials:
1. Pulpiness, paste-like mixture or powder materials.
2. Thermal sensitive material which required to be dried at lower temperature.
3. Material that are easy to oxidize or explode and the material that have strong irritative or toxic.
4. Material that required recoverying solvet.
Features
1. Blanking dryer low energy consumption: due to indirect heating, there is no large amount of heat taken away with the air, the dryer wall is installed the insulation layer, save more energy than the usual convection drying method.
2. Hollow paddle dryer system cost is low: the unit effective volume has a huge heat transfer surface, to shorten the processing time, equipment size becomes smaller, it greatly reduces the building area and building space.
3. A wide variety of process problems can be solved by using any kinds of heating source. It is especially suitable for drying heat sensitive materials and light temperature materials. The normal heat transfer medium can be steam, heat transfer oil, hot water, as well as cooling water etc... The dryer can be used for continuous or batch processing. It has been widely used in many industry areas already.
4. Small environmental pollution: do not use air with dust material. Material solvent evaporation is very small, easy to handle. For the pollution of the material or the need to recover the solvent conditions, can be used the closed circuit.
5. Low operating costs: normal operation of the device, only 1 hour/day. Low-speed mixing and reasonable structure. Wear rate is very low, and maintenance costs are also very low.
6. Stable operating continuously: Because of the special compression and inflation of the agitation function of paddle dryer, the material grains touch the heat-transfer area thoroughly. Within the axis direction, the temperature, moisture, mixture, and grades of the materials is very small so as to guarantee the stability of the whole process.
