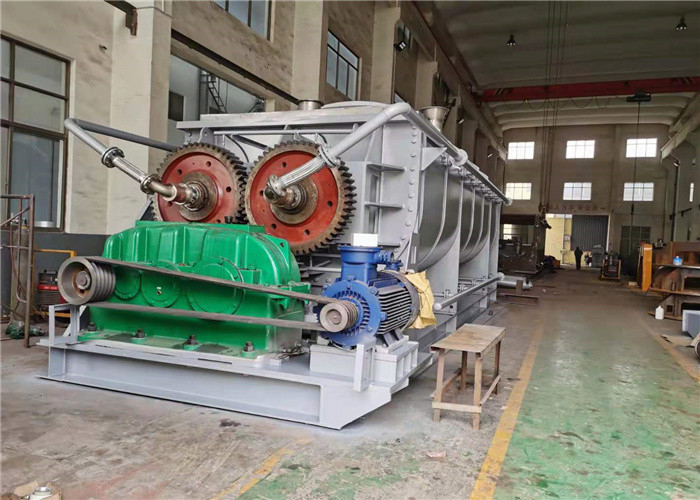

Commercial Use Hollow Blade Paddle Slot Stirring Dryer for Fly Ash Sludge
The paddle dryer is a machine used to heat treat powders, granulates, filter cakes and pasty products in a full-continuous process.
These processes vary from drying, cooling, crystallizing and calcimining to melting, evaporating, solvents, sterilizing, etc
The paddle dryer has a heated through containing rotating heated paddle shafts. The product is fed into the front of the machine. The through is oriented at a small angle of inclination, placed slightly in unloading position. The product moves to the outlet as a result of gravity. The paddles do not have a transport function.
They are designed for maximum heat transfer. At the outlet side, the product moves out of the machine via the overflow unit.
Working Principle
steam or thermal oil injected in the rotary shafts and the hollow blades.Wet sludge is fed into the paddle dryer machine by the screw feeder or sludge pump, and then is heated indirectly by the heat medium.New surface area is released continuously while the shafts rotate so that hot soda ash gets cooled in a high thermal efficiency.
Dry product is discharged through the discharge valve, while the dusty air is cleaned in the cyclone dust collector.
Technical parameters
| Model | KJG-2.7 | KJG-24 | KJG-52 | KJG-81 | KJG-110 |
| Heat transfer area | 2.7 | 24 | 52 | 81 | 110 |
| effective volume | 0.06 | 1.53 | 3.96 | 6.43 | 9.46 |
| revolution | 15-30 | 10-20 | 10-20 | 5-15 | 5-10 |
| power | 2.2 | 11 | 30 | 55 | 95 |
| width of dryer body | 306 | 1118 | 1474 | 1828 | 2210 |
| total width | 736 | 1474 | 1854 | 2286 | 2668 |
| length of dryer body | 1956 | 3454 | 5258 | 6020 | 6122 |
| total length | 2972 | 6147 | 8306 | 9678 | 9880 |
| distance between feeding and disharging | 1752 | 3150 | 4954 | 5562 | 5664 |
| height in center | 380 | 1066 | 1220 | 1220 | |
| total height | 762 | 2032 | 2464 | 2668 | |
| steam inlet | (2) 3/4 | (2) 1 | (2) 11/2 | (2) 11/2 | (2) 2 |
| water outlet | (2) 3/4 | (2) 1 | (2) 11/2 | (2) 11/2 | (2) 2 |
Applications
calcium nitrate, calcium sulfate, calcium paper, calcium carbonate, magnesium hydroxide, carbon black, iron black, iron oxide red, soda, soda ash, etc.;
2, organic chemical industry
dyestuff, industrial plastic, polystyrene, polypropylene, high density polyethylene, polypropylene, etc.;
3, smelting industry
tar, sulfur, nickel ore concentrate ore concentrate removing phenol, etc.;
4, food, medical industry
starch, pharmaceutical, salt, protein, etc.;
5, other: sludge, waste residue, chicken feed, lees, etc.;
1) Low energy consumption: As a result of indirect heating, no much air take away the heating, the outer wall has insulation layer, the heat efficiency can be up to 90%. For slurry, evaporating 1kg of water just need 1.2kg vapor.
2) cheap investment: it has huge effective heat transfer surface area per unit, reduce treatment time, let the machine size become small, so It greatly reduces the construction area and building space.
3) wide range of materials handling: can use different types of media, not only can treat heat-sensitive materials, but also handle high-temperature materials. Common medias are: water vapor, thermal oil, hot water, cooling water and so on.
4) flexible operation method: Can be continuous operation or intermittent operation, can be applied in many fields.
5) Low environmental pollution: don't use air to dry material, dust material entrainment is rare. Small solvent evaporation, easy to treat. For contaminated materials or solvent recovery conditions, closed-loop can be used.
6) Cheap operating costs: Low-speed mixing and reasonable structure, Low wear, low maintenance costs. For normal operation, just only 1 person / day.
7) Stable operation: Due to the special compression-expansion stirring of the wedge blades, the material particle contact with the heat transfer surface enough, it ensure the processing is stable.
