Home > PRODUCTS > Spray Drying Machine > SS304 Tall Form LPG Series High Speed Centrifugal Spray Dryer 5kg/H

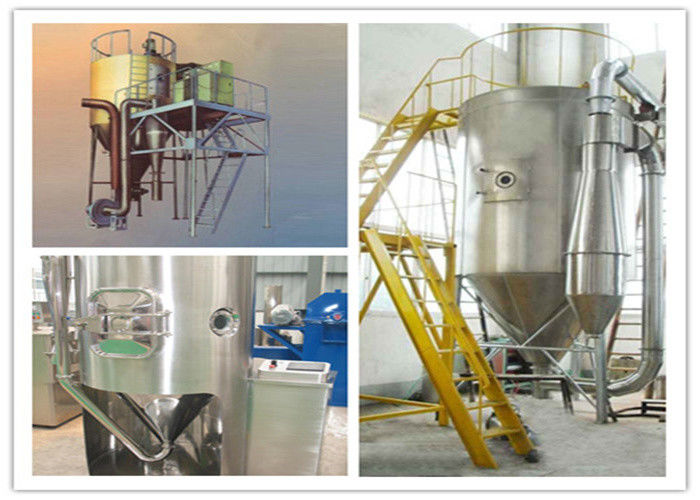

SS304 Tall Form LPG Series High Speed Centrifugal Spray Dryer 5kg/H

Product Details

Place of Origin: China

Brand Name: Xin ShengMan

Certification: CE and ISO9001

Model Number: LPG-5/10/100/200/300/500/1000

Payment & Shipping Terms

Minimum Order Quantity: 1Set

Price: USD10000-USD300000

Packaging Details: Plywood cases

Delivery Time: 60-90days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10sets/Month

Get Best Price
Highlight:

SS304 High Speed Centrifugal Spray Dryer

,

LPG Series High Speed Centrifugal Spray Dryer

,

tall form spray dryer 5kg/H

Warranty:
1 Year
Type:
Spray Dryer
Certificate:
ISO9001 And CE
Service:
Engineers Available To Service Machinery Overseas
Heating Source:
Electrical, Oil, Coal, Steam
Power (Kw):
Depend On The Model
Steel Material:
Stainless Steel 304, Carbon Steel, Or Q235A Steel
Control:
PLC Touch Screen
Package:
Wooden Case
Dimension (L*W*H):
Depend On The Model
Warranty:
1 Year
Type:
Spray Dryer
Certificate:
ISO9001 And CE
Service:
Engineers Available To Service Machinery Overseas
Heating Source:
Electrical, Oil, Coal, Steam
Power (Kw):
Depend On The Model
Steel Material:
Stainless Steel 304, Carbon Steel, Or Q235A Steel
Control:
PLC Touch Screen
Package:
Wooden Case
Dimension (L*W*H):
Depend On The Model
SS304 Tall Form LPG Series High Speed Centrifugal Spray Dryer 5kg/H

Strainless Steel LPG Series High Speed Centrifugal Spray Dryer



Descriptions


Centrifugal spray dryer is the most widely used process in liquid shaping technology. It is suitable for producing power and granules solid products from solution, emulsion, soliquid, and pumpable paste materials. So when the particle size, final moisture, bulk density and granules shape meet the accurate standard, centrifugal spray drying is a ideal drying process.






Principle

After been filtered and heated the air enters into the air distrbutor on the top of the dryer.The hot air enters into the drying room in the spiral form and uniformly. Passing through the high-speed centrifugal sprayer on the top of the tower,the material liquid will rotate and be sprayed into the extremely fine mist liquid beads.Trough the very short time of contacting the heat air,the materials can be dried into the final products.The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.


SS304 Tall Form LPG Series High Speed Centrifugal Spray Dryer 5kg/H 0



Features


1. Drying speed is fast. After the atomization of the liquid, the surface area is greatly increased. During the contact with the hot air, 95%-98% of the water can be evaporated in an instant, and the drying time takes only a few seconds, which is especially suitable for drying the heat sensitive material;

2. The product has good uniformity, fluidity and solubility;

3. The production process is simplified and the operation and control are convenient. The liquid can be dried into a powder product at one time, and does not need to be pulverized and screened after drying to reduce the production process; the particle size, bulk density and moisture of the product can be adjusted and controlled by changing the operating conditions within a certain range;

4. It adopts mechanical centrifugal atomizer, gear drive, stable speed, and can ensure uniform distribution of droplet size;

5. The direction and angle of the hot air distributor adopt an adjustable structure to ensure that the droplets and hot air are in full contact with the hot air;

6. The elbow is made of sanitary grade steel pipe once forming technology to avoid blockage of the material at the elbow.


SS304 Tall Form LPG Series High Speed Centrifugal Spray Dryer 5kg/H 1




Centrifugal spray atomizer Features

1.The drying speed is high when the material liquid is atomized,the surface area of the material will increase greatly.In the hot-air flow,95%-98% of water can be evaporated at a moment.The time of completing the drying is only several seconds. This is especially suitable for drying the heat sensitive materials.


2.Its final products own the good uniformity, flow ability & solubility. And the final products are high in purity and good in quality.


3.The production procedures are simple and the operation and control are easy.The liquid with moisture contents of 40-60%(for special materials,the contents might be up to 90%).can be dried into the powder or particle products once a time. After the drying process, there is no need for smashing and sorting,so as to reduce the operation procedures in the production and to enhance the product purity.The product particle diameters,looseness and water contents can be adjusted through changing the operation condition within a certain range. It is very convenient to carry out control and managment.







Technical parameters


Model PLG
5 25 50 100 150 200-2000
inlet temperatyre ℃ 140-350 automatically controlled
outlet temperatyre ℃ 80-90
Max water evaporation capacity  kg/h 5 25 50 100 150 200-2000
centrifugal spraying nozzle transmission mode    compressed air       transmission mechaical transmission
rotation speed (r.p.m) 25000 18000 18000 18000 15000 8000-15000
spraying desc diameter (mm)                50 100 120 140 150 180-340
max electric heating power  (kw)                 9 36 63 81 99 settled by customer
overall dimensions        1.8*0.93*2.2 3*2.7*4.26 3.7*3.2*5.1 4.6*4.2*6 5.5*4.5*7 depends on tryer
dried powder collection               ≥95 ≥95 ≥95 ≥95 ≥95 ≥95







Applications


Chemical Industry: Sodium fluoride(potassium),alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on.

Plastics and resin: AB,ABS emulsion,uric acid resin,phenolic aldehyde resin,urea-formaldehyde resin,formaldehyde resin,polythene,poly-chlotoprene and etc.

Food Industry: Fatty milk powder,protein,cocoa milk powder,substitute milk powder,egg white(yolk),food and plant,oats,chicken juice,coffee,instant dissoluble tea,seasoning meat,protein,soybean,peanut protein,hydrolysate and so forth.

Sugar, corn syrup, corn starch, glucose, pectin, malt sugar, sorbic acid potassium and etc.

Ceramic: aluminium oxide,ceramic tile material,magnesium oxide,talcum and so on.



SS304 Tall Form LPG Series High Speed Centrifugal Spray Dryer 5kg/H 2





FAQ



Q: How can I visit your factory?
A: Our company is in Changzhou city, and it is very near Shanghai city. It takes about 1 hour to get to Changchou. Or we can even visit you in Shnghai.



Q: What’s the quality of your products?
A: Our products come with best quality, and passed CE certification. And exported to lots countries around the world, such as Australia, Malaysia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.



Q: What to do if the machine has a problem?
A: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.



Q: How long is the warranty of your equipment?
A: One year.



Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.



Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai. If you request CIF, please give us your delivery port, and we will give you CIF price.
