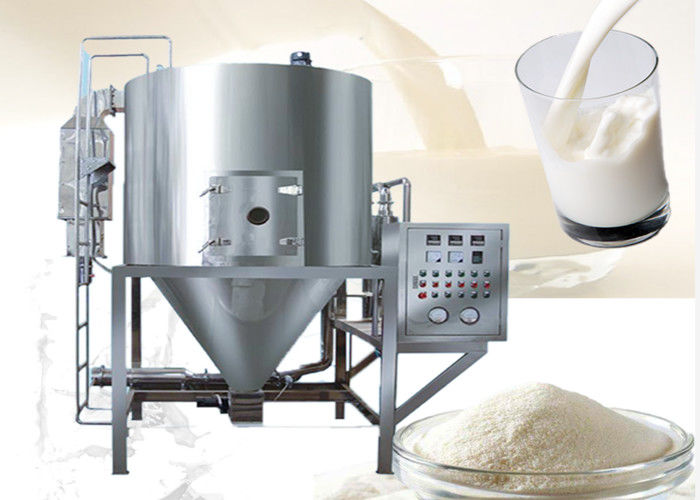

100kg/h Coconut Milk Powder Spray Dryer

Product Details

Place of Origin: China

Brand Name: Xin ShengMan

Certification: CE and ISO9001

Model Number: LPG-5/10/100

Payment & Shipping Terms

Minimum Order Quantity: 1Set

Price: USD10000-USD300000

Packaging Details: Plywood cases

Delivery Time: 60-90days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10sets/Month

Get Best Price
High Light:

100kg/H Milk Powder Spray Dryer

,

100kg/H milk spray dryer machine

,

100kg/H milk powder making machine

Warranty:
1 Year
Type:
Spray Dryer
Certificate:
ISO9001 And CE
Service:
Engineers Available To Service Machinery Overseas
Heating Source:
Electrical, Oil, Coal, Steam
Power (Kw):
Depend On The Model
Steel Material:
Stainless Steel 304, Carbon Steel, Or Q235A Steel
Control:
PLC Touch Screen
Package:
Wooden Case
Dimension (L*W*H):
Depend On The Model
Application:
Milk
Warranty:
1 Year
Type:
Spray Dryer
Certificate:
ISO9001 And CE
Service:
Engineers Available To Service Machinery Overseas
Heating Source:
Electrical, Oil, Coal, Steam
Power (Kw):
Depend On The Model
Steel Material:
Stainless Steel 304, Carbon Steel, Or Q235A Steel
Control:
PLC Touch Screen
Package:
Wooden Case
Dimension (L*W*H):
Depend On The Model
Application:
Milk
100kg/h Coconut Milk Powder Spray Dryer



High-speed Milk Drying Machine/spray Dryer For Coconut Milk Powder





Descriptions

Spray atomizer / industrial spray nozzle drying technology is shaping and drying of the most widely used industrial process. Ideal for the solution, emulsion, suspension and paste liquid plastic raw materials generated in the powdery, granular or massive solid products. Therefore, when the particle size distribution of the finished product, residual moisture content, bulk density and particle shape must meet precise standards. Spray drying is a very good process.




Working Principle

The air is filtered and heated into the top of the dryer air distributor, hot air into the spiral evenly into the drying chamber. The material liquid is sprayed into a fine atomized liquid droplet through the high-speed centrifugal nebulizer at the top of the tower body, and can be contacted with the hot air in a very short time and can be dried into finished products. The finished product is continuously discharged from the bottom of the drying tower and the cyclone, and the exhaust gas is drained by the draft fan.



100kg/h Coconut Milk Powder Spray Dryer 0



Features

At a high speed of drying, after the spraying of the material liquid, the surface area of the material will be increased greatly. In the hot-air flow, 95%~98% of water can be evaporated at a moment. The time of completing the drying needs only several seconds.

1.The liquid delivery system consists of liquid tank, magnetic filter, pump and so on as to ensure the liquid enter into the atomizer smoothly.

2.Air filtering system and heating system

Before the fresh air enter into the heater, it should pass through the Pre&post filter first, and then enter the heater for heating. For the heating method, there are electrical heater steam radiator, gas furnace and so on. Which method to choose depends on the customer site conditions.To ensure the drying medium enter into the drying chamber with high purity, the heated air should go through the High efficiency filter before enters the drying chamber.

3. Atomizing system

 The atomizing system consists of high speed centrifugal atomizer with inverter and so on.

The powder from the high speed centrifugal atomizer is between 40-120 microns.

4. Drying Chamber system

The drying chamber consists of the spiral shell, hot air distributor, main tower and relevant fittings.

The Spiral shell and hot air distributor: the spiral shell and hot air distributor at the air inlet of the tower top can regulate air flow rotation angle according to the specific condition, guide the air flow inside the tower effectively and avoid the material stick on the wall.in the middle there is the position for installing the atomizer.

Drying tower: The inner wall is SUS mirror sheet, ad welded by the arc welding. The insulation is rock wool.

The tower is manhole and view port as to convenient to clean and maintain the tower. For the Tower body cross interface, pipe elbow are arc butt design, reduce dead angle; sealed type.

The main tower is equipped with air hammer, controlled by the pulse, and hitting the main drying tower timely as to avoid the dust stick on the wall

5. Air exhausting and product collecting system

For the material collecting system, there are several types. Such as cyclone, cyclone+bag filter, bag filter, cyclone +water scrubber and so on. The method is depending on the material property itself. For the filtering system for the outlet air, we have filter on request.

6. Control system

HMI+PLC, each parameter can be displayed on the screen. Every parameter can be controlled and recorded easily.




100kg/h Coconut Milk Powder Spray Dryer 1









Technical parameters


Model PLG
5 25 50 100 150 200-2000
inlet temperatyre ℃ 140-350 automatically controlled
outlet temperatyre ℃ 80-90
Max water evaporation capacity  kg/h 5 25 50 100 150 200-2000
centrifugal spraying nozzle transmission mode    compressed air       transmission mechaical transmission
rotation speed (r.p.m) 25000 18000 18000 18000 15000 8000-15000
spraying desc diameter (mm)                50 100 120 140 150 180-340
max electric heating power  (kw)                 9 36 63 81 99 settled by customer
overall dimensions        1.8*0.93*2.2 3*2.7*4.26 3.7*3.2*5.1 4.6*4.2*6 5.5*4.5*7 depends on tryer
dried powder collection               ≥95 ≥95 ≥95 ≥95 ≥95 ≥95







Applications


Chemical Industry: Sodium fluoride(potassium),alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on.

Plastics and resin: AB,ABS emulsion,uric acid resin,phenolic aldehyde resin,urea-formaldehyde resin,formaldehyde resin,polythene,poly-chlotoprene and etc.

Food Industry: Fatty milk powder,protein,cocoa milk powder,substitute milk powder,egg white(yolk),food and plant,oats,chicken juice,coffee,instant dissoluble tea,seasoning meat,protein,soybean,peanut protein,hydrolysate and so forth.

Sugar, corn syrup, corn starch, glucose, pectin, malt sugar, sorbic acid potassium and etc.

Ceramic: aluminium oxide,ceramic tile material,magnesium oxide,talcum and so on.



100kg/h Coconut Milk Powder Spray Dryer 2
