Product Details
Place of Origin: China
Brand Name: Xin ShengMan
Certification: CE and ISO9001
Model Number: LPG-5/25/50/100/150/200-2000
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: USD10000-USD300000
Packaging Details: Plywood cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10sets/Month
Warranty: |
1 Year |
Type: |
Spray Dryer |
Certificate: |
ISO9001 And CE |
Service: |
Engineers Available To Service Machinery Overseas |
Heating Source: |
Electrical, Oil, Coal, Steam |
Power (Kw): |
Depend On The Model |
Steel Material: |
Stainless Steel 304, Carbon Steel, Or Q235A Steel |
Control: |
PLC Touch Screen |
Package: |
Wooden Case |
Dimension (L*W*H): |
Depend On The Model |
Application: |
Industrial |
New: |
100% New |
Supplier: |
Chinese Factory |
Warranty: |
1 Year |
Type: |
Spray Dryer |
Certificate: |
ISO9001 And CE |
Service: |
Engineers Available To Service Machinery Overseas |
Heating Source: |
Electrical, Oil, Coal, Steam |
Power (Kw): |
Depend On The Model |
Steel Material: |
Stainless Steel 304, Carbon Steel, Or Q235A Steel |
Control: |
PLC Touch Screen |
Package: |
Wooden Case |
Dimension (L*W*H): |
Depend On The Model |
Application: |
Industrial |
New: |
100% New |
Supplier: |
Chinese Factory |

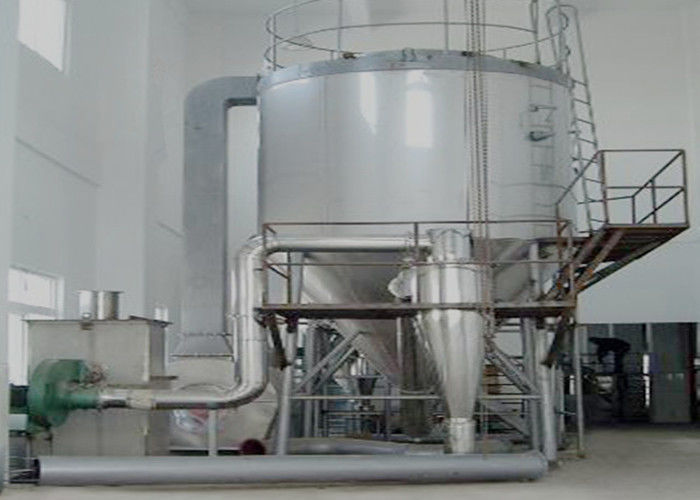

LPG series 100L Capacity Spray Drying Machine for Instant Coffee Powder
Overview
1. Drying liquid or slurry materials into dry powder
2. Atomizing type: centrifugal atomizer
3. Evaporation capacity: 5-100 kg/h
4. Heat source: steam, electricity, thermal oil or gas/oil/coal fired hot air generator
1) Particle size control: The dry particle size can be easily controlled by atomization of the liquid feed and the design of the hot gas inlet. This spray dryer can typically produce between 30 to 500 micron average particle size, in a bell shaped distribution.
2) The evaporative cooling of product: The heat and mass transfer during drying occurs in the air and vapor films surrounding the droplet. This protective envelope of vapor keeps the particle at the saturation temperature. As long as the particle does not become "bone-dry", evaporation is still taking place and the temperature of the solids will not approach the dryer outlet temperature.
3) Short residence time: The surface area produced by atomization of the liquid feed enables a short gas residence time, ranging from 3-10 seconds depending upon the application, which permits spray drying without thermal degradation.
4) Flow properties of dry product: The shape of most spray dried particles is spherical, which provides for fluid-like flow properties. This makes many downstream operations, such as packaging, pressing, filtering, and handling easier and less costly.
5) Size design of drying chamber: The size of drying chamber is specially designed to prevent droplets sticking to the inner wall, dried powder accumulating on the cone part and guarantee enough residence time.
Technical parameters
| Model | PLG | |||||
| 5 | 25 | 50 | 100 | 150 | 200-2000 | |
| inlet temperatyre ℃ | 140-350 automatically controlled | |||||
| outlet temperatyre ℃ | 80-90 | |||||
| Max water evaporation capacity kg/h | 5 | 25 | 50 | 100 | 150 | 200-2000 |
| centrifugal spraying nozzle transmission mode | compressed air transmission | mechaical transmission | ||||
| rotation speed (r.p.m) | 25000 | 18000 | 18000 | 18000 | 15000 | 8000-15000 |
| spraying desc diameter (mm) | 50 | 100 | 120 | 140 | 150 | 180-340 |
| max electric heating power (kw) | 9 | 36 | 63 | 81 | 99 | settled by customer |
| overall dimensions | 1.8*0.93*2.2 | 3*2.7*4.26 | 3.7*3.2*5.1 | 4.6*4.2*6 | 5.5*4.5*7 | depends on tryer |
| dried powder collection | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 |
Applications
Chemical Industry: Sodium fluoride(potassium),alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on.
Plastics and resin: AB,ABS emulsion,uric acid resin,phenolic aldehyde resin,urea-formaldehyde resin,formaldehyde resin,polythene,poly-chlotoprene and etc.
Food Industry: Fatty milk powder,protein,cocoa milk powder,substitute milk powder,egg white(yolk),food and plant,oats,chicken juice,coffee,instant dissoluble tea,seasoning meat,protein,soybean,peanut protein,hydrolysate and so forth.
Sugar, corn syrup, corn starch, glucose, pectin, malt sugar, sorbic acid potassium and etc.
Ceramic: aluminium oxide,ceramic tile material,magnesium oxide,talcum and so on.
FAQ
Q: How can I visit your factory?
A: Our company is in Changzhou city, and it is very near Shanghai city. It takes about 1 hour to get to Changchou. Or we can even visit you in Shnghai.
Q: What’s the quality of your products?
A: Our products come with best quality, and passed CE certification. And exported to lots countries around the world, such as Australia, Malaysia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What to do if the machine has a problem?
A: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: One year.
Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai. If you request CIF, please give us your delivery port, and we will give you CIF price.
