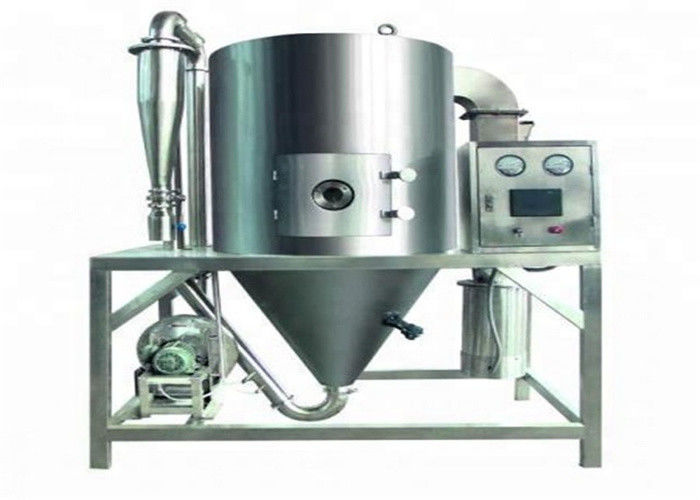

LPG-150 Rotary Atomizer Spray Dryer / Egg Powder Spray Dryer 15000RPM

LPG-150 100% New LPG Centrifugal Atomizer Spray Dryer for Juice Powder

1, lpg-150 spray dryer/fruit juice spray dryer price/centrifugal disc spray dryer

2, Liquid or slurry drying processor

3, Easy operation and control

4, Good fluidity and dissoluvability

5, Stainless Steel

Shengman company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), LPG China Spray dryer, Food ingredients spray dryer, Industrial spray dryer, Flavor spray dryer (Cocoa, Maltdextrin,Gum Acacia), Lab Spray dryer, Spray drying equipment,Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line.

We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.

Features

For the LPG series high speed centrifugal spray dryer, it consists of of liquid delivery, air filtering and heating, liquid atomizing, drying chamber, air exhausting and material collecting, control system and so on, the feature for each system as bellow:

１.The liquid delivery system consists of liquid tank, magnetic filter, pump and so on as to ensure the liquid enter into the atomizer smoothly.

２.Air filtering system and heating system

Before the fresh air enter into the heater, it should pass through the Pre&post filter first, and then enter the heater for heating. For the heating method, there are electrical heater steam radiator, gas furnace and so on. Which method to choose depends on the customer site conditions.To ensure the drying medium enter into the drying chamber with high purity, the heated air should go through the High efficiency filter before enters the drying chamber.

3. Atomizing system

 The atomizing system consists of high speed centrifugal atomizer with inverter and so on.

The powder from the high speed centrifugal atomizer is between 40-120 microns.

4. Drying Chamber system

The drying chamber consists of the spiral shell, hot air distributor, main tower and relevant fittings.

The Spiral shell and hot air distributor: the spiral shell and hot air distributor at the air inlet of the tower top can regulate air flow rotation angle according to the specific condition, guide the air flow inside the tower effectively and avoid the material stick on the wall.in the middle there is the position for installing the atomizer.

Drying tower: The inner wall is SUS mirror sheet, ad welded by the arc welding. The insulation is rock wool.

The tower is manhole and view port as to convenient to clean and maintain the tower. For the Tower body cross interface, pipe elbow are arc butt design, reduce dead angle; sealed type.

The main tower is equipped with air hammer, controlled by the pulse, and hitting the main drying tower timely as to avoid the dust stick on the wall

5. Air exhausting and product collecting system

For the material collecting system, there are several types. Such as cyclone, cyclone+bag filter, bag filter, cyclone +water scrubber and so on. The method is depending on the material property itself. For the filtering system for the outlet air, we have filter on request.

6. Control system

HMI+PLC, each parameter can be displayed on the screen. Every parameter can be controlled and recorded easily.

Centrifugal spray atomizer Features

1.The drying speed is high when the material liquid is atomized,the surface area of the material will increase greatly.In the hot-air flow,95%-98% of water can be evaporated at a moment.The time of completing the drying is only several seconds. This is especially suitable for drying the heat sensitive materials.


2.Its final products own the good uniformity, flow ability & solubility. And the final products are high in purity and good in quality.


3.The production procedures are simple and the operation and control are easy.The liquid with moisture contents of 40-60%(for special materials,the contents might be up to 90%).can be dried into the powder or particle products once a time. After the drying process, there is no need for smashing and sorting,so as to reduce the operation procedures in the production and to enhance the product purity.The product particle diameters,looseness and water contents can be adjusted through changing the operation condition within a certain range. It is very convenient to carry out control and managment.

Technical parameters


Successful Experience Overseas of Fruit Juice Centrifugal Disc Spray Dryer Machine

LPG china spray dryer has a very mature technology and process, and our company has rich overseas site installation experience and good after sale service .

Why Choose Xin shengman

• International high quality certification product chain
• Manufacturer, more reasonable price
• Solid technical support and after-sales service
• Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
• Exports to more than 20 countries and regions, good customers feedbac
• One-stop service, customized exclusive project feasibility report
