Product Details
Place of Origin: China
Brand Name: Xin ShengMan
Certification: CE and ISO9001
Model Number: LPG-5/25/50/100/150/200-2000
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: USD10000-USD300000
Packaging Details: Plywood cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10sets/Month
Warranty: |
1 Year |
Type: |
Spray Dryer |
Certificate: |
ISO9001 And CE |
Service: |
Engineers Available To Service Machinery Overseas |
Heating Source: |
Electrical, Oil, Coal, Steam |
Power (Kw): |
Depend On The Model |
Steel Material: |
Stainless Steel 304, Carbon Steel, Or Q235A Steel |
Control: |
PLC Touch Screen |
Package: |
Wooden Case |
Dimension (L*W*H): |
Depend On The Model |
Application: |
Industrial |
New: |
100% New |
Supplier: |
Chinese Factory |
Warranty: |
1 Year |
Type: |
Spray Dryer |
Certificate: |
ISO9001 And CE |
Service: |
Engineers Available To Service Machinery Overseas |
Heating Source: |
Electrical, Oil, Coal, Steam |
Power (Kw): |
Depend On The Model |
Steel Material: |
Stainless Steel 304, Carbon Steel, Or Q235A Steel |
Control: |
PLC Touch Screen |
Package: |
Wooden Case |
Dimension (L*W*H): |
Depend On The Model |
Application: |
Industrial |
New: |
100% New |
Supplier: |
Chinese Factory |
LPG Flavoring / Seasoning / Food Flavor Spray Drying Equipment
-- Considering about the flavor wall adhesion problem, we enlarge the diameter of drying tower based on normal design
-- All transit are using Arc transition
-- Construction material of flavor spray dryer is made of SUS316L or SUS304
-- Cooling device is an option for keep the lower product temperature
-- Chamber Air Jet system is an option to reduce the wall adhesion problem

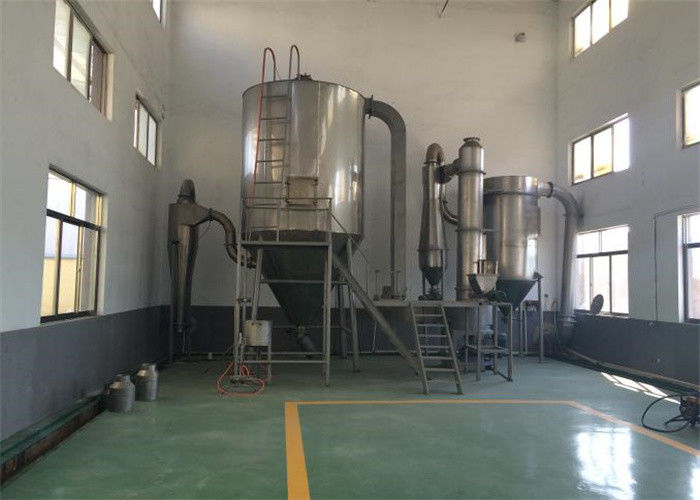

Hot air enters into dryer in spiral form under the function of air distributor after being filtered and heated. By passing through high-speed rotary atomizer on top of tower, the liquid raw material will be sprayed into the extremely fine mist beads. Through the very short time of contacting with hot air, the liquid can be dried into final solid powder products. The final products will be discharged continuously from the bottom of drying tower and from cyclone separator. Waste tail air will be discharged from exhaust fan.
--1. High speed drying. After liquid raw material being sprayed, its' surface area will be increased greatly. With higher drying efficiency, 95%-98% of water could be evaporated in a few seconds. Drying time is very short, it is suitable for heat sensitive raw material
--2. Product comes from spray dryer has very good uniformity, solubility, fluidity and purity.
--3. The production procedures are simple, the operation and control are easy. Liquid with the moisture contents ranges 40-60% (for some special materials, the moisture content is available at 90%) can be dried into the powder in one time. There is no need for grinding or sieving after spray drying, this simplifies operation procedures and improves product purity. Product size, bulk density, moisture content is adjustable in certain ranges.
Technical parameters
| Model | PLG | |||||
| 5 | 25 | 50 | 100 | 150 | 200-2000 | |
| inlet temperatyre ℃ | 140-350 automatically controlled | |||||
| outlet temperatyre ℃ | 80-90 | |||||
| Max water evaporation capacity kg/h | 5 | 25 | 50 | 100 | 150 | 200-2000 |
| centrifugal spraying nozzle transmission mode | compressed air transmission | mechaical transmission | ||||
| rotation speed (r.p.m) | 25000 | 18000 | 18000 | 18000 | 15000 | 8000-15000 |
| spraying desc diameter (mm) | 50 | 100 | 120 | 140 | 150 | 180-340 |
| max electric heating power (kw) | 9 | 36 | 63 | 81 | 99 | settled by customer |
| overall dimensions | 1.8*0.93*2.2 | 3*2.7*4.26 | 3.7*3.2*5.1 | 4.6*4.2*6 | 5.5*4.5*7 | depends on tryer |
| dried powder collection | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 |
Applications
Chemical Industry: Sodium fluoride(potassium),alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on.
Plastics and resin: AB,ABS emulsion,uric acid resin,phenolic aldehyde resin,urea-formaldehyde resin,formaldehyde resin,polythene,poly-chlotoprene and etc.
Food Industry: Fatty milk powder,protein,cocoa milk powder,substitute milk powder,egg white(yolk),food and plant,oats,chicken juice,coffee,instant dissoluble tea,seasoning meat,protein,soybean,peanut protein,hydrolysate and so forth.
Sugar, corn syrup, corn starch, glucose, pectin, malt sugar, sorbic acid potassium and etc.
Ceramic: aluminium oxide,ceramic tile material,magnesium oxide,talcum and so on.
