Product Details
Place of Origin: China
Brand Name: Xin ShengMan
Certification: CE and ISO9001
Model Number: LPG-5/25/50/100/150/200-2000
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: USD10000-USD300000
Packaging Details: Plywood cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10sets/Month
Warranty: |
1 Year |
Type: |
Spray Dryer |
Certificate: |
ISO9001 And CE |
Service: |
Engineers Available To Service Machinery Overseas |
Heating Source: |
Electrical, Oil, Coal, Steam |
Power (Kw): |
Depend On The Model |
Steel Material: |
Stainless Steel 304, Carbon Steel, Or Q235A Steel |
Control: |
PLC Touch Screen |
Package: |
Wooden Case |
Dimension (L*W*H): |
Depend On The Model |
Application: |
Industrial |
New: |
100% New |
Supplier: |
Chinese Factory |
Warranty: |
1 Year |
Type: |
Spray Dryer |
Certificate: |
ISO9001 And CE |
Service: |
Engineers Available To Service Machinery Overseas |
Heating Source: |
Electrical, Oil, Coal, Steam |
Power (Kw): |
Depend On The Model |
Steel Material: |
Stainless Steel 304, Carbon Steel, Or Q235A Steel |
Control: |
PLC Touch Screen |
Package: |
Wooden Case |
Dimension (L*W*H): |
Depend On The Model |
Application: |
Industrial |
New: |
100% New |
Supplier: |
Chinese Factory |

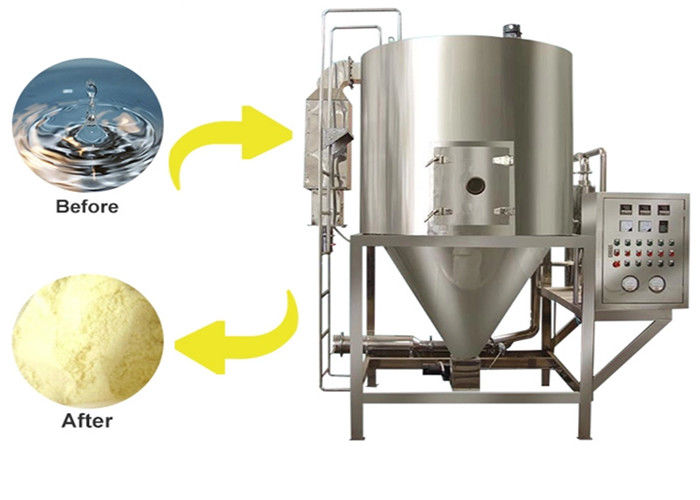

LPG Large Scale Spray Dryer Milk Powder/Centrifugal Atomizer Spray Drying Machine
Spray drying equipment is widely used in liquid forming and drying industry.
Principle
1. After fresh air is filtered and heated,it enters into the air distributor which on the top of the drier.The hot air in spiral form equably enters into the drying room.
2. When liquid raw material are passed through the high-speed centrifugal sprayer on the
top of the tower,it will be rotated and sprayed into the extreme slim mist liquid beads.
3. Raw material can be dried to the finalproducts instantly while it contact with heatedair.
4. Finished products are discharged continuously from bottom of the drying tower
and cyclones segregator.Wasted air is discharged from blower.
Features
1. Finished products have high quality and purity, good uniformity,good flow capability and solubility advantages.
Technical parameters
| Model | PLG | |||||
| 5 | 25 | 50 | 100 | 150 | 200-2000 | |
| inlet temperatyre ℃ | 140-350 automatically controlled | |||||
| outlet temperatyre ℃ | 80-90 | |||||
| Max water evaporation capacity kg/h | 5 | 25 | 50 | 100 | 150 | 200-2000 |
| centrifugal spraying nozzle transmission mode | compressed air transmission | mechaical transmission | ||||
| rotation speed (r.p.m) | 25000 | 18000 | 18000 | 18000 | 15000 | 8000-15000 |
| spraying desc diameter (mm) | 50 | 100 | 120 | 140 | 150 | 180-340 |
| max electric heating power (kw) | 9 | 36 | 63 | 81 | 99 | settled by customer |
| overall dimensions | 1.8*0.93*2.2 | 3*2.7*4.26 | 3.7*3.2*5.1 | 4.6*4.2*6 | 5.5*4.5*7 | depends on tryer |
| dried powder collection | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 |
Applications
1.Food industry: milk powder, cocoa powder, milk substitutes, blood hunting powder, egg powder etc.
2.Food and plants: oats, chicken juice, coffee powder, instant tea, protein, peanut protein, hydrolysate, etc.
3.Sugars: corn syrup, corn starch, glucose, pectin, maltose, potassium sorbate, etc.
4.Plastic resin:Washing powder,AB, ABS emulsion,polyethylene, polyvinyl chloride, etc.
5.Ceramics: magnesium oxide, talcum powder, etc.
6.Chemical industry: basic dyes and pigments,catalysts, sulfuric acid, amino acids, white carbon black, etc.
