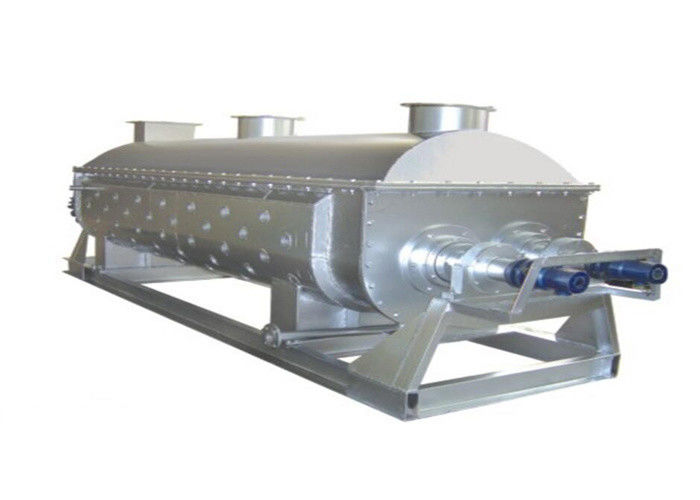

SUS304 Industrial Paddle Dryer / 11KW Horizontal Drying Machine

KJG High Quality Chinese Dryer Manufacture Sludge Hollow Paddle Dryer

Product introduction

Applicable for drying or cooling of paste, particle, powder and slurry state of material, perform the process of drying, cooling, heating, sterilizing, reacting and combustion under low temperature. The special stirring and heating transferring blade, makes high heat transferring efficiency, and provide self-cleaning function. The special chock shaped stirring and heat transferring blade has high heating efficiency and self-cleaning function of the heating transferring surface.

Features of Hollow Paddle Dryer

1. The heat consumption of blade is low:

Due to adopting indirect heating method, there will not be large amount of heat energy being taken away, besides there is additionally heat-insulation outside of heating drum body, therefore for paste materials, it only consume 1.2 kgs of steam to evaporate 1.0 kg of moisture inside the raw material.

2. The cost of the blade dryer is low:

For unit effective volume, there is a vast heat-convection area, thus it will shortens the processing duration, and also facilitates to reduce equipment’s sizes, in the end the construction area and space is greatly decreased.

3. The range of material to be processed is wide:

It can apply different heating medium, thus it can not only process heat-sensitive material but also material to be processed under high temperature. The commonly applicable heat medium is as: steam, thermal oil, hot water, cooling water and etc. It can not only run continuously but also intermittently in many process fields.

4. The pollution is less:

There is much less dust material being carried or emitted out to environment. There is also much less material solvent being evaporated, which is easy to be processed. For processing conditions such as there is contaminated material or there is solvent to be recovered, the close-circuit circulation mechanism can be adopted.

5. The operation cost is low:

By adopting low-speed stirring mechanism and reasonable structure and less wear allowance, the maintenance cost is also very low.

6. Steady operation:

Due to the special compression-expansion stirring function of V-shaped blade, it makes it possible to get material granule contact with heat-transferring surfaces fully, thus within the axial inter-zones, the material temperature, humidity and mixing gradient is very small, which can guarantee process stability.

Technical parameters

Applications of Hollow Paddle Dryer for sludge/sewage sludge

The paddle dryer is successfully applied in foodstuff, chemical, petrochemical, dyestuff, and industrial mud etc.
