Product Details
Place of Origin: CHANGZHOU
Brand Name: Xin Shengman
Certification: ISO9001 and CE
Model Number: Hollow Paddle Dryer
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Price: USD1,5000-USD20,3000
Packaging Details: Plywood cases
Delivery Time: 30-60 days
Payment Terms: T/T
Supply Ability: 6sets/Month
Voltage: |
Customized |
Power: |
Variable |
After-sales Service: |
Engineers Available To Service Machinery Overseas |
Warranty: |
1 Year |
Material: |
304 Stainless Steel |
Heating Method: |
Hot Water/steam/oil |
Capacity: |
As U Requirement |
Heating Source: |
Steam+electricity |
Model: |
KJG-9 KJG-13 KJG-18 KJG-24 KJG-62, ETC |
Condition: |
New |
Voltage: |
Customized |
Power: |
Variable |
After-sales Service: |
Engineers Available To Service Machinery Overseas |
Warranty: |
1 Year |
Material: |
304 Stainless Steel |
Heating Method: |
Hot Water/steam/oil |
Capacity: |
As U Requirement |
Heating Source: |
Steam+electricity |
Model: |
KJG-9 KJG-13 KJG-18 KJG-24 KJG-62, ETC |
Condition: |
New |

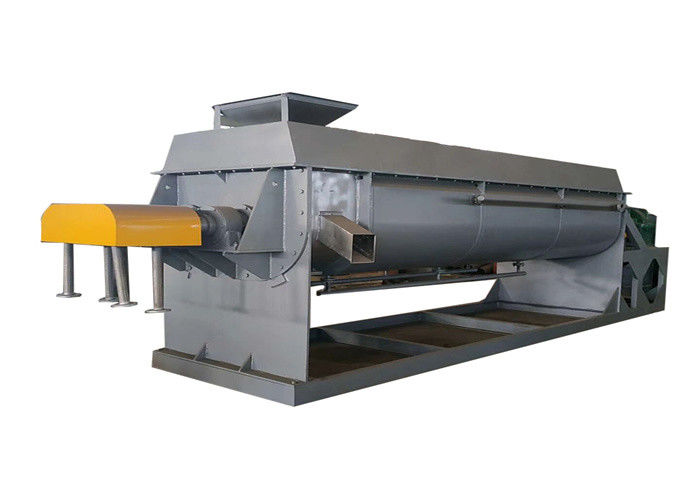

KJG Factory price Stainless Steel Blade Mixing Hollow Paddle Sludge Drying Machine Dryer
Product introduction
Hollow paddle blades type dryer machine is special for powder material,filter cake or sludge drying. Activated carbon powder is mainly used for decoloration or purification in food,medicine and chemical industry. The dry activated carbon powder is also used in water cleaning.
Working Principle
steam or thermal oil injected in the rotary shafts and the hollow blades.Wet sludge is fed into the paddle dryer machine by the screw feeder or sludge pump, and then is heated indirectly by the heat medium.New surface area is released continuously while the shafts rotate so that hot soda ash gets cooled in a high thermal efficiency.
Dry product is discharged through the discharge valve, while the dusty air is cleaned in the cyclone dust collector.
Technical parameters
| Model | KJG-2.7 | KJG-24 | KJG-52 | KJG-81 | KJG-110 |
| Heat transfer area | 2.7 | 24 | 52 | 81 | 110 |
| effective volume | 0.06 | 1.53 | 3.96 | 6.43 | 9.46 |
| revolution | 15-30 | 10-20 | 10-20 | 5-15 | 5-10 |
| power | 2.2 | 11 | 30 | 55 | 95 |
| width of dryer body | 306 | 1118 | 1474 | 1828 | 2210 |
| total width | 736 | 1474 | 1854 | 2286 | 2668 |
| length of dryer body | 1956 | 3454 | 5258 | 6020 | 6122 |
| total length | 2972 | 6147 | 8306 | 9678 | 9880 |
| distance between feeding and disharging | 1752 | 3150 | 4954 | 5562 | 5664 |
| height in center | 380 | 1066 | 1220 | 1220 | |
| total height | 762 | 2032 | 2464 | 2668 | |
| steam inlet | (2) 3/4 | (2) 1 | (2) 11/2 | (2) 11/2 | (2) 2 |
| water outlet | (2) 3/4 | (2) 1 | (2) 11/2 | (2) 11/2 | (2) 2 |
Applications
It has been successfully used in the food, chemical, petrochemical, dyes, industrial sludge and other fields. Heat transfer equipment, cooled, stirred solution of the following characteristics makes it possible to complete the unit operations: calcination (low temperature), cooled, dried (solvent recovery), heating (melting), the reaction and sterilization. Stirring blades while the heat transfer surface, so that the heat transfer area per unit effective volume is increased, the processing time is shortened. Wedge-shaped blade heat transfer surface and having a self-cleaning function. Compression - expansion of the material mixture evenly mixing function. Material axially into a "plug flow" movement in the axial zone, material temperature, humidity, mixing gradient is very small.
Pre-sale
1. According to your needs, select right model for you.
2. According to your special requirements, design customized solution and manufacture customized products for you.
3. Welcome your visit.
Sale
1. Sign contract, pay deposit, we arrange production.
2. Product acceptance.
3. Help you formulate construction scheme.
After-sale
1. Assign engineer service for you on-site freely.
2. Install and adjust device, train how to operate.
3. After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.
