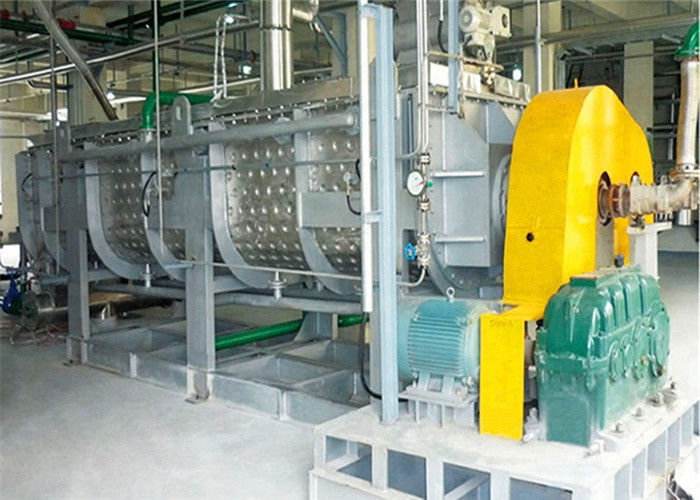

Industrial KJG Hollow Air Drying Sludge Vacuum Blade Paddle Hollow Dryer Machine
Introduction
Dual counter-rotating shafts with unique intermeshing hollow wedge-shaped paddles produce intimate mixing, optimize heat transfer, and provide a self-cleaning feature. A large heat transfer area to volume ratio is achieved by the use of hollow paddles and a jacketed vessel, through which the heating medium flows. The result is an efficient, compact machine with less space requirements and lower installation cost.
Working Principle
steam or thermal oil injected in the rotary shafts and the hollow blades.Wet sludge is fed into the paddle dryer machine by the screw feeder or sludge pump, and then is heated indirectly by the heat medium.New surface area is released continuously while the shafts rotate so that hot soda ash gets cooled in a high thermal efficiency.
Dry product is discharged through the discharge valve, while the dusty air is cleaned in the cyclone dust collector.
Technical parameters
| Model | KJG-2.7 | KJG-24 | KJG-52 | KJG-81 | KJG-110 |
| Heat transfer area | 2.7 | 24 | 52 | 81 | 110 |
| effective volume | 0.06 | 1.53 | 3.96 | 6.43 | 9.46 |
| revolution | 15-30 | 10-20 | 10-20 | 5-15 | 5-10 |
| power | 2.2 | 11 | 30 | 55 | 95 |
| width of dryer body | 306 | 1118 | 1474 | 1828 | 2210 |
| total width | 736 | 1474 | 1854 | 2286 | 2668 |
| length of dryer body | 1956 | 3454 | 5258 | 6020 | 6122 |
| total length | 2972 | 6147 | 8306 | 9678 | 9880 |
| distance between feeding and disharging | 1752 | 3150 | 4954 | 5562 | 5664 |
| height in center | 380 | 1066 | 1220 | 1220 | |
| total height | 762 | 2032 | 2464 | 2668 | |
| steam inlet | (2) 3/4 | (2) 1 | (2) 11/2 | (2) 11/2 | (2) 2 |
| water outlet | (2) 3/4 | (2) 1 | (2) 11/2 | (2) 11/2 | (2) 2 |
Applications
It has been successfully used in the food, chemical, petrochemical, dyes, industrial sludge and other fields. Heat transfer equipment, cooled, stirred solution of the following characteristics makes it possible to complete the unit operations: calcination (low temperature), cooled, dried (solvent recovery), heating (melting), the reaction and sterilization. Stirring blades while the heat transfer surface, so that the heat transfer area per unit effective volume is increased, the processing time is shortened. Wedge-shaped blade heat transfer surface and having a self-cleaning function. Compression - expansion of the material mixture evenly mixing function. Material axially into a "plug flow" movement in the axial zone, material temperature, humidity, mixing gradient is very small.
Low Operation Cost - Easy to operate - Requires minimal attention - Simple instruments monitor the process - High efficiency - Low off-gas volume Low Installation Cost - Designed with compact structure - Small off-gas system - Vertical shaft removal reduces building size requirements Low Maintenance Cost - Designed for high torque and low operating speed - Simple durable design for easy and low maintenance - No internal parts to adjust or maintain - No metal to metal contact - Shafts, pillow block bearings, and drive components are designed for long life under adverse conditions, insuring long term mechanical integrity - Robust frame supports split pillow block bearings - Grease-purged stuffing boxes. Alternate seal designs are available
