KJG 220V 380V Vacuum Paddle Dryer Chemical Dryer Machine 9880mm length

KJG Vacuum Paddle Dryer Machine of Large Drying Area in Food or Chemicals Processing

Description

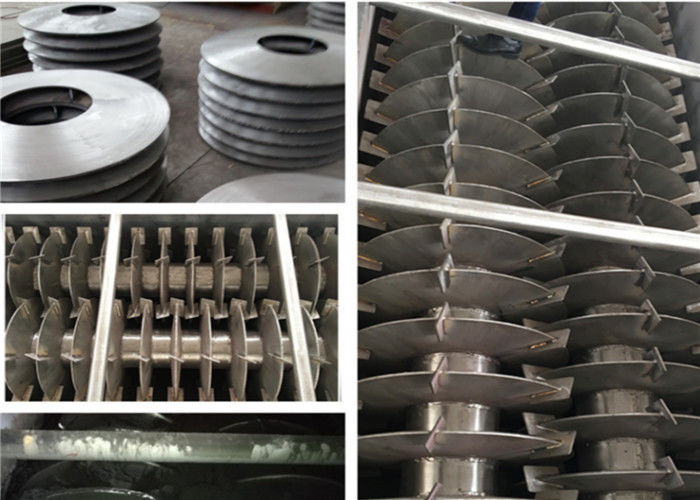

Dual counter-rotating shafts with unique intermeshing hollow wedge-shaped paddles produce intimate mixing, optimize heat transfer, and provide a self-cleaning feature. A large heat transfer area to volume ratio is achieved by the use of hollow paddles and a jacketed vessel, through which the heating medium flows. The result is an efficient, compact machine with less space requirements and lower installation cost.

HEAT SOURCES(Temperature at 180°C - 250°C)

Heating by Steam Steamenters the hollow shaft through a rotary joint and is evenly distributed to all paddles. Condensate is removed with each revolution. Heating by Hot Oil (thermal fluid) Hot oil (thermal fluid) enters and exits the hollow shaft through a rotary joint. Pressure from the supply pump forces liquid through the hollow paddles.

Technical parameters

Application

This dryer is widly used in pharmaceutical industry, foodstuff industry, chemical industry and etc. Especially be sutiable for the following materials:
1. Pulpiness, paste-like mixture or powder materials.
2. Thermal sensitive material which required to be dried at lower temperature.
3. Material that are easy to oxidize or explode and the material that have strong irritative or toxic.
4. Material that required recoverying solvet.

Low Operation Cost

- Easy to operate

- Requires minimal attention

- Simple instruments monitor the process

- High efficiency

- Low off-gas volume

Low Maintenance Cost

- Designed for high torque and low operating speed

- Simple durable design for easy and low maintenance

- No internal parts to adjust or maintain

- No metal to metal contact

- Shafts, pillow block bearings, and drive components are designed for long life under adverse conditions, insuring long term mechanical integrity

- Robust frame supports split pillow block bearings

- Grease-purged stuffing boxes. Alternate seal designs are available

Low Installation Cost

- Designed with compact structure

- Small off-gas system

- Vertical shaft removal reduces building size requirements
