Product Details
Place of Origin: CHANGZHOU
Brand Name: Xin Shengman
Certification: ISO9001 and CE
Model Number: Hollow Paddle Dryer
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Price: USD1,5000-USD20,3000
Packaging Details: Plywood cases
Delivery Time: 30-60 days
Payment Terms: T/T
Supply Ability: 6sets/Month
Voltage: |
Customized |
Power: |
Variable |
After-sales Service: |
Engineers Available To Service Machinery Overseas |
Warranty: |
1 Year |
Material: |
304 Stainless Steel |
Heating Method: |
Hot Water/steam/oil |
Capacity: |
As U Requirement |
Heating Source: |
Steam+electricity |
Model: |
KJG-2.7 KJG-13 KJG-18 KJG-73 KJG-110 ETC |
Condition: |
New |
Dimension: |
Custom-made |
Certification: |
ISO9001 CE |
Voltage: |
Customized |
Power: |
Variable |
After-sales Service: |
Engineers Available To Service Machinery Overseas |
Warranty: |
1 Year |
Material: |
304 Stainless Steel |
Heating Method: |
Hot Water/steam/oil |
Capacity: |
As U Requirement |
Heating Source: |
Steam+electricity |
Model: |
KJG-2.7 KJG-13 KJG-18 KJG-73 KJG-110 ETC |
Condition: |
New |
Dimension: |
Custom-made |
Certification: |
ISO9001 CE |

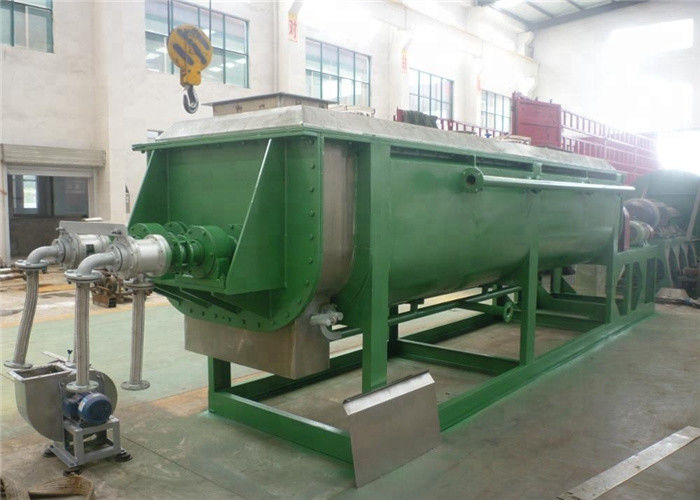

Green Color Low Temp Professional Horizontal Paddle Hollow Dryer for Chemical Industry
Product
The product may be a paste, granular, powder, slurry, indirect heating or cooling the material, to be completed by drying, cooling, heating, sterilization, reaction temperature combustion unit operation. Special mixing equipment wedge blades with high heat transfer efficiency and heat transfer surface self-cleaning function.
Works
The heat transfer medium passes through the rotary joint, through the housing jacket and hollow shaft, the hollow mixing shaft in accordance with the type of the heat medium has a different internal structure, to ensure optimum heat transfer effect.
Technical parameters
| Model | KJG-2.7 | KJG-24 | KJG-52 | KJG-81 | KJG-110 |
| Heat transfer area | 2.7 | 24 | 52 | 81 | 110 |
| effective volume | 0.06 | 1.53 | 3.96 | 6.43 | 9.46 |
| revolution | 15-30 | 10-20 | 10-20 | 5-15 | 5-10 |
| power | 2.2 | 11 | 30 | 55 | 95 |
| width of dryer body | 306 | 1118 | 1474 | 1828 | 2210 |
| total width | 736 | 1474 | 1854 | 2286 | 2668 |
| length of dryer body | 1956 | 3454 | 5258 | 6020 | 6122 |
| total length | 2972 | 6147 | 8306 | 9678 | 9880 |
| distance between feeding and disharging | 1752 | 3150 | 4954 | 5562 | 5664 |
| height in center | 380 | 1066 | 1220 | 1220 | |
| total height | 762 | 2032 | 2464 | 2668 | |
| steam inlet | (2) 3/4 | (2) 1 | (2) 11/2 | (2) 11/2 | (2) 2 |
| water outlet | (2) 3/4 | (2) 1 | (2) 11/2 | (2) 11/2 | (2) 2 |
Application
This dryer is widly used in pharmaceutical industry, foodstuff industry, chemical industry and etc. Especially be sutiable for the following materials:
1. Pulpiness, paste-like mixture or powder materials.
2. Thermal sensitive material which required to be dried at lower temperature.
3. Material that are easy to oxidize or explode and the material that have strong irritative or toxic.
4. Material that required recoverying solvet.
Features
blade dryer low energy consumption: Due to indirect heat, not a lot of air to carry the heat away, and set the dryer wall insulation layer, slurries, only 1.2kg 1kg of water evaporated water vapor.
blade dryer system costs low: unit effective volume has a huge heat transfer surface, shortening the processing time, the device size smaller. It greatly reduces the floor area and building space.
wide range of materials handling: Use different thermal medium, can deal with sensitive materials, but also to deal with the material to be heat treated. Common media are: water vapor, oil, hot water, cooling water, etc..
Continuous operation can also be intermittent operation, can be applied in many fields.
environmental pollution: do not use portable air entrained dust material rarely. Evaporation of the solvent material is very small, easy to handle. To have the contaminated material or solvent to be recovered condition, can be
Closed loop.
low operating costs: the structure. A small amount of wear, maintenance costs low.
stable operation: As the wedge-shaped blade special compression - expansion of stirring, the material particles full surface contact with the heat transfer in the axial section, the material temperature, humidity, degree of mixing small gradient, thus ensuring the process stability.
FAQ
Q1. What is the advantage about your company? A1. Our company has professional team and professional production line.
Q2. Why should I choose your products? A2. Our products are high quality and low price.
Q3. Any other good service your company can provide? A3. Yes,we can provide good after-sale and fast delivery.
