Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: ZLG
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Heating Method: |
Gas Electricity Steam |
Material: |
SUS304 Stainless Steel |
Core Components: |
Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine |
Raw Material: |
60-500kg |
Stirring Speed: |
11 R.m.p |
Main Machine: |
Square Or Round |
Time Of Operation: |
Depend On Material |
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Heating Method: |
Gas Electricity Steam |
Material: |
SUS304 Stainless Steel |
Core Components: |
Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine |
Raw Material: |
60-500kg |
Stirring Speed: |
11 R.m.p |
Main Machine: |
Square Or Round |
Time Of Operation: |
Depend On Material |

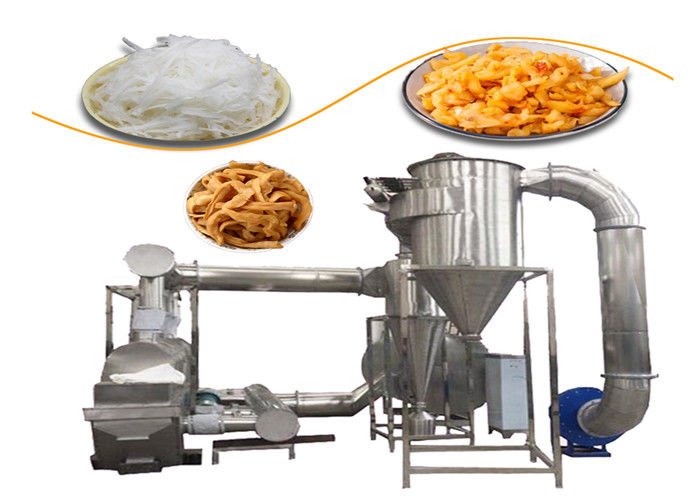

High Efficiency Vertical Fluid Boiling Fluidized bed drying machine for Milk Juice Powder Granules Pharmacy
Product information
High Efficiency boiling drying machine is used for particle size of 0.1-6 mm particle material boil dry, suitable for pharmaceutical, foodstuff, light industry, chemical industry, the working principle of the finished products, intermediates.
The air is heated and purified. The fan is introduced from the lower part and passes through the mesh plate of the hopper. In the workplace, Fluidization is formed by stirring and negative pressure. After the rapid evaporation of water with the exhaust away, the material quickly dry.
Features
The fluidized bed is round structure to avoid dead Angle. The hopper is set with stirring to avoid the agglomeration of wet materials and the formation of furrow flow when drying. It is convenient, quick and complete to use tipping, and can also design automatic feeding and discharging system as required. Close negative pressure operation, airflow through filtration.Easy to operate, easy to clean, is in line with the 'GMP' requirements of the ideal equipment.
The drying speed is fast and the temperature is even. The drying time of each batch is generally 20-60 minutes.
Technical parameters
| item | unit | ||||||
| raw material | kg | 60 | 100 | 150 | 200 | 300 | |
| fan | air volume | m³/h | 2361 | 3488 | 4901 | 6032 | 7800 |
| stirring power | kw | 0.55 | 0.55 | 0.55 | 0.55 | 1.5 | |
| stirring speed | r.m.p | 11 | |||||
| consumption of steam | kg/h | 141 | 170 | 240 | 282 | 366 | |
| time of operation | min | ||||||
| height of main machine | square round | mm | 2750 2700 | 2850 2900 | 2900 2900 | 3100 3100 | 3300 3600 |
Remark:
1. Parameters above in the table are regular model for reference;
2. We could make special model / size according to the customer's actual situation or requirement, please contact sales team to konw more details about vegetable dryer.
1) Pharmaceutical and chemical industries: all kinds of press tablet and granule, boric acid, borax, dihydroxybenzene, malic acid, maleic acid
2) Foodstuff and construction material industries: lees, monosodium glutamate, edible sugar, edible salt, mine residue, bean, seeds
3) Can also be used for raw materials to add up damp or cooling
Please contact me for double confirm if you not sure this type dryer suitable for your products
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
Company Introduction
Jiangsu Shengman Drying Equipment Engineering Co.,Ltd, established in 2011, known as a local leading high-tech enterprise, is located in Zhenglu town, Changzhou, Jiangsu, China. Shengman is a large-scale production enterprise in China drying industry with a registered capital of 35,000,000 RMB, specialized in designing &manufacturing various kinds of dryers, granulators, mixers, grinders ,dust removers, etc. Shengman owns an area of over 200,000㎡, and realizes annual sales of over 70,000,000RMB for consecutive years. Shengman has passed European Union CE authentication, ISO 9001 quality management system certification and got good bank credit for AAA. Now Shengman has been one of the largest drying equipment production enterprises in East China and keeping leading the drying industry’s development.
