Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: GFG
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Heating Method: |
Gas Electricity Steam |
Material: |
SUS304 Stainless Steel |
Core Components: |
Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine |
Raw Material: |
60-500kg |
Stirring Speed: |
11 R.m.p |
Main Machine: |
Square Or Round |
Time Of Operation: |
Depend On Material |
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Heating Method: |
Gas Electricity Steam |
Material: |
SUS304 Stainless Steel |
Core Components: |
Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine |
Raw Material: |
60-500kg |
Stirring Speed: |
11 R.m.p |
Main Machine: |
Square Or Round |
Time Of Operation: |
Depend On Material |

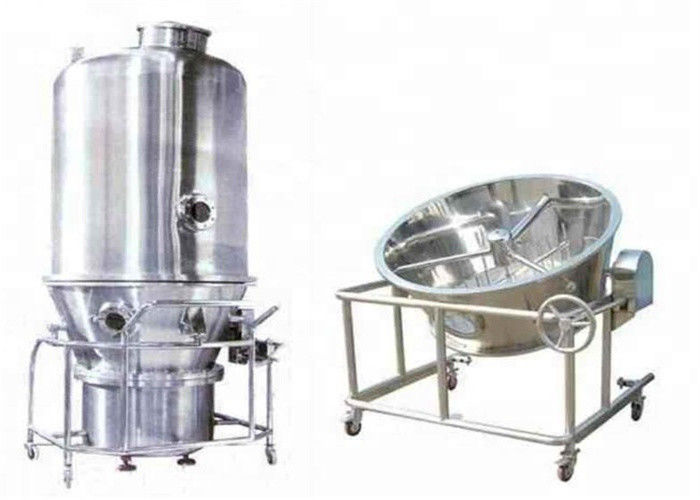

Batch type Top Selling CE Approved Fluid Bed Feedstuff Drying Machine for maggot larvae
Product information
GFG series batch type fluid bed dryer is designed based on GMP standard and is known for its enhanced drying capacity and sanitary operation condition.This design is mainly used to dry non-fragile granules and powder materials in foodstuff, pharmaceutical and chemical industry.
After being heated and filtered, clean hot air is introduced into the air distributor at the bottom of the dryer and flow through a perforated drying bowl on which wet materials are loaded. Under the effect of strong air stream and rotating agitator, wet materials are perfectly fluidized. Moisture evaporates very fast because of thorough contact and heat transfer between hot air and wet material. At the top of the dryer, bag filter is installed to separate fine particles from the exhausted damp air.
1. Robust drying chamber: The drying chamber is made by SUS304 or SUS316L steel plate, fully welded and mirror polished. The design is robust, simple and compact which requires minimum maintenance.
2. Fast and uniform drying: Due to the specially designed drying bowl and agitator, wet material can be perfectly fluidized to make sure fast and uniform drying.
3. Flexibility in heat source: The heat source can be steam, hot water, electricity, thermal oil, oil/gas/coal/biomass fired hot air generator to match with different working conditions.
4. Flexibility in drying: The dryer works in batch type so that drying time can be easily controlled. It can be used to dry materials with different moisture content and moisture type.
5. GMP design: The drying chamber is fully welded, mirror polished without dead corners for cleaning to meet GMP standard.
Technical parameters
| item | unit | ||||||
| raw material | kg | 60 | 100 | 150 | 200 | 300 | |
| fan | air volume | m³/h | 2361 | 3488 | 4901 | 6032 | 7800 |
| stirring power | kw | 0.55 | 0.55 | 0.55 | 0.55 | 1.5 | |
| stirring speed | r.m.p | 11 | |||||
| consumption of steam | kg/h | 141 | 170 | 240 | 282 | 366 | |
| time of operation | min | ||||||
| height of main machine | square round | mm | 2750 2700 | 2850 2900 | 2900 2900 | 3100 3100 | 3300 3600 |
Remark:
1. Parameters above in the table are regular model for reference;
2. We could make special model / size according to the customer's actual situation or requirement, please contact sales team to konw more details about vegetable dryer.
1) Pharmaceutical and chemical industries: all kinds of press tablet and granule, boric acid, borax, dihydroxybenzene, malic acid, maleic acid
2) Foodstuff and construction material industries: lees, monosodium glutamate, edible sugar, edible salt, mine residue, bean, seeds
3) Can also be used for raw materials to add up damp or cooling
Please contact me for double confirm if you not sure this type dryer suitable for your products
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
Company Introduction
Jiangsu Shengman Drying Equipment Engineering Co.,Ltd, established in 2011, known as a local leading high-tech enterprise, is located in Zhenglu town, Changzhou, Jiangsu, China. Shengman is a large-scale production enterprise in China drying industry with a registered capital of 35,000,000 RMB, specialized in designing &manufacturing various kinds of dryers, granulators, mixers, grinders ,dust removers, etc. Shengman owns an area of over 200,000㎡, and realizes annual sales of over 70,000,000RMB for consecutive years. Shengman has passed European Union CE authentication, ISO 9001 quality management system certification and got good bank credit for AAA. Now Shengman has been one of the largest drying equipment production enterprises in East China and keeping leading the drying industry’s development.
