Home > PRODUCTS > Hot Air Drying Oven > SUS304 360kg Industrial Hot Air Dryer Machine Pharmaceutical Drying Oven

SUS304 360kg Industrial Hot Air Dryer Machine Pharmaceutical Drying Oven

Product Details

Place of Origin: China

Brand Name: JingSu ShengMan

Certification: CE and ISO9001

Model Number: GMP

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD20000-USD300000

Packaging Details: Plywood Cases

Delivery Time: 60-90days

Payment Terms: L/C, T/T

Supply Ability: 10sets

Get Best Price
Highlight:

360kg Industrial Hot Air Dryer Machine

,

360kg Pharmaceutical Drying Oven

,

SUS304 Pharmaceutical Drying Oven

Condition:
New
Warranty:
1 Year
Heating Source:
Electricity, Steam, Or Both
Application:
Chemical
Material:
SUS304
Voltage:
220v/380v
Drying Capacity:
35-480kg
Power Of Fan:
0.45-1.8kw
Drying Trolly:
2-8 Sets
Baking Trays:
16-192
Condition:
New
Warranty:
1 Year
Heating Source:
Electricity, Steam, Or Both
Application:
Chemical
Material:
SUS304
Voltage:
220v/380v
Drying Capacity:
35-480kg
Power Of Fan:
0.45-1.8kw
Drying Trolly:
2-8 Sets
Baking Trays:
16-192

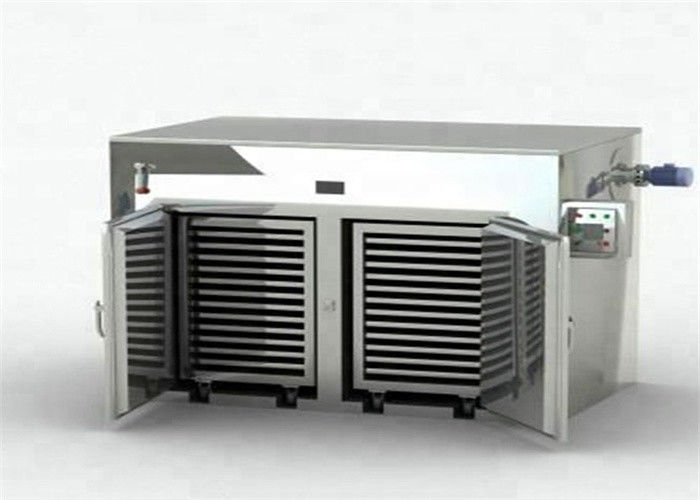

SUS304 360kg Industrial Hot Air Dryer Machine Pharmaceutical Drying Oven

GMP Model Pharmaceutical Electric Drying Oven for Medicine Powder Anti-inflammatory drugs





FEATURES

  1. Heat sources: steam, electricity, steam + electricity.
  2. Working temperature (steam heating): 50-140°C, Max 150 °C
  3. Working temperature (electric heating): 50-350°C
  4. The drying oven is equipped with automatic temperature control system and temperature reorder.
  5. The inner wall of oven body is fully welded, no dead corners.
  6. The whole drying oven is sealed and it adapted unique guide rail sealing technology to ensure the sealing tightness.
  7. The double doors of oven can be assembled and disassembled quickly in order to clean conveniently.
  8. The drying oven is equipped with high efficiency filter at the air inlet and medium efficiency air filter at the air exhaust port.
  9. The control system has text display and touch screen as optional.
  10. The machine is in conformity with requirements of GMP.



SUS304 360kg Industrial Hot Air Dryer Machine Pharmaceutical Drying Oven 0







Technical parameters



type batch drying capacity (kg) power of fan steam to be consumed (kg/h) drying trolly (set)  baking trays overall dimension mm
GMP-0 35 0.45 8 / 16 1130*1100*1750
GMP-I 120 0.45 18 2 48 2300*1200*2000
GMP-II 240 0.9 36 4 96 2300*2200*2000
GMP-III 360 1.35 54 6 144 3430*2200*2000
GMP-IV 480 1.8 72 8 192 4460*2200*2290


Note: The above data is for reference only. If having special requirements, the factory can provide the service of consultation and design.







SUS304 360kg Industrial Hot Air Dryer Machine Pharmaceutical Drying Oven 1

APPLICATION



The drying oven is suitable for drying and dehydration of material and product for pharmaceutical, chemical, food, agricultural, aquatic, light industry, heavy industry; such as medicine raw material, medicine, Chinese herbal medicine, extractum, granules, powder, pill, packing bottle, pigment and dyes, dehydrated vegetables, dried fruit, sausages, plastic, resin, electric elements, varnish, and etc.





SUS304 360kg Industrial Hot Air Dryer Machine Pharmaceutical Drying Oven 2



Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.

Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (
2). Delivery on time. (3). Provide full set of documents as customer’s requirements.



After-sale service:
Provide considerate services to minimize clients’ worries.

1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.



Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.

2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.

3. Send every client a preferential quotation.





SUS304 360kg Industrial Hot Air Dryer Machine Pharmaceutical Drying Oven 3SUS304 360kg Industrial Hot Air Dryer Machine Pharmaceutical Drying Oven 4
