Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: GMP
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Warranty: |
1 Year |
Heating Source: |
Electricity, Steam, Or Both |
Application: |
Chemical |
Material: |
SUS304 |
Voltage: |
220v/380v |
Drying Capacity: |
35-480kg |
Power Of Fan: |
0.45-1.8kw |
Drying Trolly: |
2-8 Sets |
Baking Trays: |
16-192 |
Condition: |
New |
Warranty: |
1 Year |
Heating Source: |
Electricity, Steam, Or Both |
Application: |
Chemical |
Material: |
SUS304 |
Voltage: |
220v/380v |
Drying Capacity: |
35-480kg |
Power Of Fan: |
0.45-1.8kw |
Drying Trolly: |
2-8 Sets |
Baking Trays: |
16-192 |

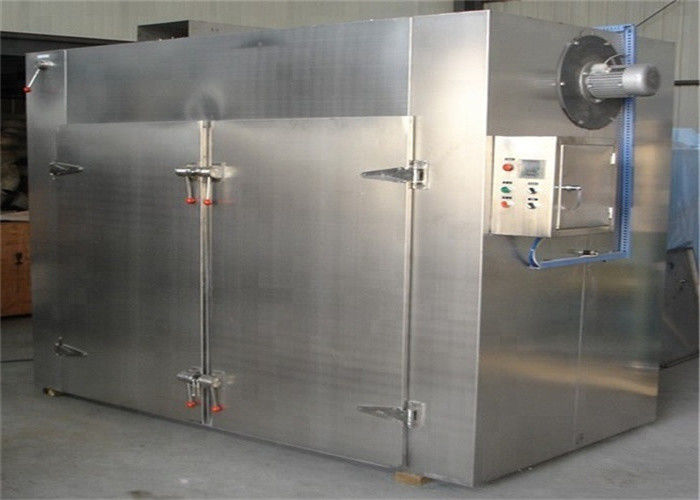

GMP Standard Hot Air Oven Vacuum Tray Dryer For API Pharmaceuticals Powder
Description
In the drying chamber, material will be dried under vacuum condition. Under the vacuum condition, the boiling point of material solution will reduce. It will increase impetus for heat and mass exchange. Therefore for certain heat exchange amount, it can save heat exchange area of evaporator. Material is under static condition during operation of the equipment, which is benefit for keeping initial status of material. Intermittent operation can adjust process conditions at any time. On the top of vacuum dryer, heating system is arranged to tackle the problem of return of condensed water, in addition, air suction is arranged at the side to improve drying efficiency. This equipment can be used for low temperature drying and organic solvent recovery. Heat source can be steam, hot water and thermal oil. It is specially suitable for drying materials that is easily oxygenated during drying.
Technical parameters
| type | batch drying capacity (kg) | power of fan | steam to be consumed (kg/h) | drying trolly (set) | baking trays | overall dimension mm |
| GMP-0 | 35 | 0.45 | 8 | / | 16 | 1130*1100*1750 |
| GMP-I | 120 | 0.45 | 18 | 2 | 48 | 2300*1200*2000 |
| GMP-II | 240 | 0.9 | 36 | 4 | 96 | 2300*2200*2000 |
| GMP-III | 360 | 1.35 | 54 | 6 | 144 | 3430*2200*2000 |
| GMP-IV | 480 | 1.8 | 72 | 8 | 192 | 4460*2200*2290 |
Note: The above data is for reference only. If having special requirements, the factory can provide the service of consultation and design.
APPLICATION
The drying oven is suitable for drying and dehydration of material and product for pharmaceutical, chemical, food, agricultural, aquatic, light industry, heavy industry; such as medicine raw material, medicine, Chinese herbal medicine, extractum, granules, powder, pill, packing bottle, pigment and dyes, dehydrated vegetables, dried fruit, sausages, plastic, resin, electric elements, varnish, and etc.
Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.
Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
