Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: CT-C
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Warranty: |
1 Year |
Heating Source: |
Electricity, Steam, Or Both |
Application: |
Chemical |
Material: |
SUS304 |
Voltage: |
220v/380v |
Drying Capacity: |
25-400kg |
Power: |
0.45-5kw |
Velocity: |
3400-13800 M³/h |
Baking Trays: |
8-192 |
Condition: |
New |
Warranty: |
1 Year |
Heating Source: |
Electricity, Steam, Or Both |
Application: |
Chemical |
Material: |
SUS304 |
Voltage: |
220v/380v |
Drying Capacity: |
25-400kg |
Power: |
0.45-5kw |
Velocity: |
3400-13800 M³/h |
Baking Trays: |
8-192 |

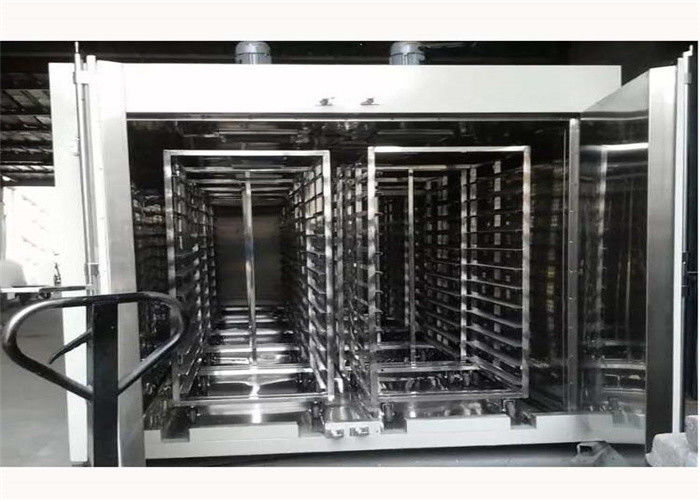

Stainless Steel Food Industrial Hot Air Dryer Machine For Sea Cucumber
Description
CT-C Fruit Dryer adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire
circulation system is enclosed to make that the heat efficiency of the tray dryer increases from 3~7% of the traditional tray
dryerto 35~45% of the present one. The highest heat efficiency can be up to 50%.The successful design of CT -C hot air circulation
oven makes that the hot air circulation tray dryer in our country reach the advanced level in the world. It saves energy and
increases the economic benefit.In1990, the medical management bureau of the State issued the industry standard and the uniform
type is RXH.
Technical parameters
| type | batch drying capacity (kg) | power | steam to be consumed (kg/h) | Velocity | baking trays | overall dimension mm |
| RXH-5-C | 25 | 5 | 5 | 3400 | 8 | 1400*1200*1600 |
| RXH-14-C | 50 | 0.45 | 10 | 3400 | 24 | 1400*1200*2000 |
| RXH-27-C | 200 | 0.9 | 36 | 6900 | 96 | 2300*2200*2000 |
| RXH41-C | 300 | 1.35 | 54 | 10350 | 144 | 2300*3200*2000 |
| RXH-54-C | 400 | 1.8 | 72 | 13800 | 192 | 4450*2200*2000 |
Note: The above data is for reference only. If having special requirements, the factory can provide the service of consultation and design.
APPLICATION
The drying oven is suitable for drying and dehydration of material and product for pharmaceutical, chemical, food, agricultural, aquatic, light industry, heavy industry; such as medicine raw material, medicine, Chinese herbal medicine, extractum, granules, powder, pill, packing bottle, pigment and dyes, dehydrated vegetables, dried fruit, sausages, plastic, resin, electric elements, varnish, and etc.
Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.
Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
