Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: ct-c
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Warranty: |
1 Year |
Heating Source: |
Electricity, Steam, Or Both |
Application: |
Chemical |
Material: |
SUS304 |
Voltage: |
220v/380v |
Drying Capacity: |
35-480kg |
Power Of Fan: |
0.45-1.8kw |
Drying Trolly: |
2-8 Sets |
Baking Trays: |
16-192 |
Condition: |
New |
Warranty: |
1 Year |
Heating Source: |
Electricity, Steam, Or Both |
Application: |
Chemical |
Material: |
SUS304 |
Voltage: |
220v/380v |
Drying Capacity: |
35-480kg |
Power Of Fan: |
0.45-1.8kw |
Drying Trolly: |
2-8 Sets |
Baking Trays: |
16-192 |

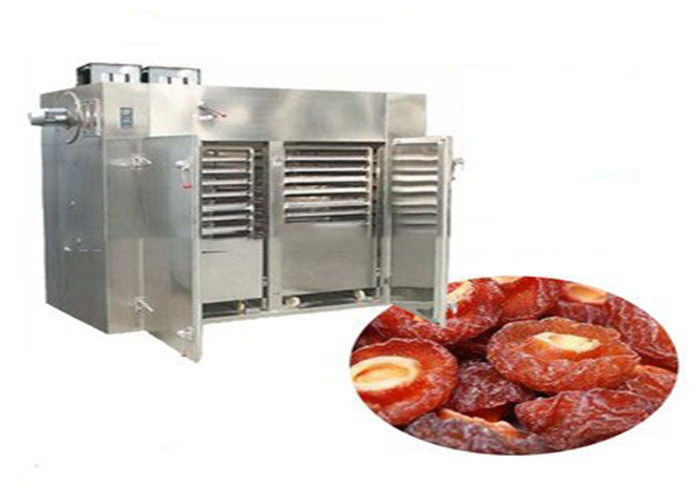

Dried fruit preserves Hot Air heating and drying ovens with computer control system
Description
1. For the heating source, there can be: steam, electricity,far infrared, or electrical steam.
2. The temperatures to be used: steam heating 50 ~ 140 "C, Max. 150 'C.
3. The temperature while using the electricity far IR: 50 - 350 'C.
4. There are automatic control system and computer control system for users' selection.
5. Commonly used steam pressure 0.02 ~ 0.8 Mpa (0.2 - 8 kg/cm2)
6. If the electrical heating and type one, the calcu4ation is 15kw, and the practical use is 5 ~
8 kW/h.
7. The special requirements should be indicated at the time of order.
8. The price for the non-standard oven should be consulted.
9. The use temperatures more than 140 'C and less than 60 'C should be indicated at thetime of order.
10. The ovens and baking plates made by our factory are uniform in the dimensions, and can be exchanged each other.
11. The baking plate dimensions: 460 x 640 x 45mm.
Technical parameters
| type | batch drying capacity (kg) | power of fan | steam to be consumed (kg/h) | drying trolly (set) | baking trays | overall dimension mm |
| GMP-0 | 35 | 0.45 | 8 | / | 16 | 1130*1100*1750 |
| GMP-I | 120 | 0.45 | 18 | 2 | 48 | 2300*1200*2000 |
| GMP-II | 240 | 0.9 | 36 | 4 | 96 | 2300*2200*2000 |
| GMP-III | 360 | 1.35 | 54 | 6 | 144 | 3430*2200*2000 |
| GMP-IV | 480 | 1.8 | 72 | 8 | 192 | 4460*2200*2290 |
Note: The above data is for reference only. If having special requirements, the factory can provide the service of consultation and design.
APPLICATION
The drying oven is suitable for drying and dehydration of material and product for pharmaceutical, chemical, food, agricultural, aquatic, light industry, heavy industry; such as medicine raw material, medicine, Chinese herbal medicine, extractum, granules, powder, pill, packing bottle, pigment and dyes, dehydrated vegetables, dried fruit, sausages, plastic, resin, electric elements, varnish, and etc.
Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.
Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
