Home > PRODUCTS > Hot Air Drying Oven > 35kg-480kg Hot Air Circulation Drying Oven / Vegetable Fruit Drying Oven

35kg-480kg Hot Air Circulation Drying Oven / Vegetable Fruit Drying Oven

Product Details

Place of Origin: China

Brand Name: JingSu ShengMan

Certification: CE and ISO9001

Model Number: ct-c

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD20000-USD300000

Packaging Details: Plywood Cases

Delivery Time: 60-90days

Payment Terms: L/C, T/T

Supply Ability: 10sets

Get Best Price
Highlight:

480kg Hot Air Circulation Drying Oven

,

35kg Hot Air Circulation Drying Oven

,

480kg Fruit Drying Oven

Condition:
New
Warranty:
1 Year
Heating Source:
Electricity, Steam, Or Both
Application:
Chemical
Material:
SUS304
Voltage:
220v/380v
Drying Capacity:
35-480kg
Power Of Fan:
0.45-1.8kw
Drying Trolly:
2-8 Sets
Baking Trays:
16-192
Condition:
New
Warranty:
1 Year
Heating Source:
Electricity, Steam, Or Both
Application:
Chemical
Material:
SUS304
Voltage:
220v/380v
Drying Capacity:
35-480kg
Power Of Fan:
0.45-1.8kw
Drying Trolly:
2-8 Sets
Baking Trays:
16-192
35kg-480kg Hot Air Circulation Drying Oven / Vegetable Fruit Drying Oven

Hot air circulating industrial drying oven for fruit mushroom tea vegetable with options of heat source



Introduction:

Nearly all hot air cycle within baker, high heating efficiency, energy saving.

Utilizing forced heat air cycle within baker, without air separating plate, material can be dried uniformly. vapor, heat water, powder, FRI all can be used as heating resources.

Low noise, steady operation; temperature auto adjustment; easy access to temperature control, repair and maintenance.

Various application; all kinds of materials drying; one of most common drying equipment.



Feature:

Heating source: Vapor, Heat conductive oil, hot water, electric heating pipe, FRI etc.

Operation temperature: Vapor heating ambient temperature ~140℃, Max 150 ℃.

Electric, FRI, ambient temperature~350 ℃.

Auto-control system and computer control system as option.

Common vapor pressure 0.2~0.8MPa.

Electro-heating (type 1)15kw.

Special requirements should be indicated while ordering.

No standard baker can be produced based on process parameter.

Operation ambient temperature exceed 140 ℃ or less than 60 ℃ should be marked out while ordering.

Bake vehicle and tray's dimension are standard, changeable.

Bake tray dimension:460×640×45mm

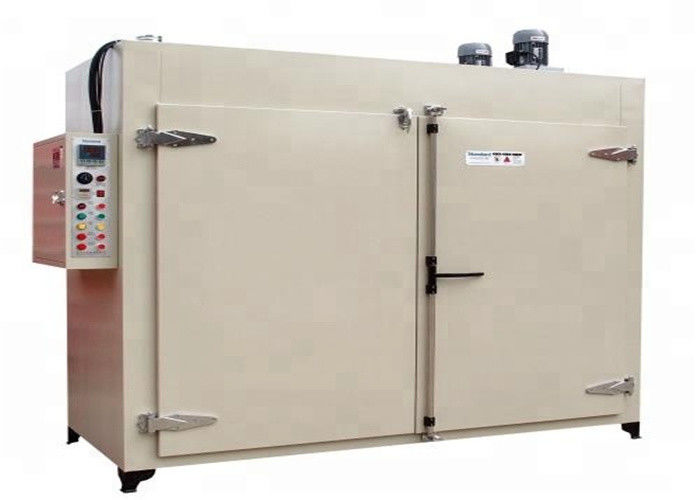

35kg-480kg Hot Air Circulation Drying Oven / Vegetable Fruit Drying Oven 0







Technical parameters



type batch drying capacity (kg) power of fan steam to be consumed (kg/h) drying trolly (set)  baking trays overall dimension mm
GMP-0 35 0.45 8 / 16 1130*1100*1750
GMP-I 120 0.45 18 2 48 2300*1200*2000
GMP-II 240 0.9 36 4 96 2300*2200*2000
GMP-III 360 1.35 54 6 144 3430*2200*2000
GMP-IV 480 1.8 72 8 192 4460*2200*2290


Note: The above data is for reference only. If having special requirements, the factory can provide the service of consultation and design.







35kg-480kg Hot Air Circulation Drying Oven / Vegetable Fruit Drying Oven 1

APPLICATION



The drying oven is suitable for drying and dehydration of material and product for pharmaceutical, chemical, food, agricultural, aquatic, light industry, heavy industry; such as medicine raw material, medicine, Chinese herbal medicine, extractum, granules, powder, pill, packing bottle, pigment and dyes, dehydrated vegetables, dried fruit, sausages, plastic, resin, electric elements, varnish, and etc.





35kg-480kg Hot Air Circulation Drying Oven / Vegetable Fruit Drying Oven 2



Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.

Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (
2). Delivery on time. (3). Provide full set of documents as customer’s requirements.



After-sale service:
Provide considerate services to minimize clients’ worries.

1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.



Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.

2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.

3. Send every client a preferential quotation.





35kg-480kg Hot Air Circulation Drying Oven / Vegetable Fruit Drying Oven 335kg-480kg Hot Air Circulation Drying Oven / Vegetable Fruit Drying Oven 4
