high speed 192 Trays 480kg Meat Drying Machine Industrial Food Dryer

Product Details

Place of Origin: China

Brand Name: JingSu ShengMan

Certification: CE and ISO9001

Model Number: ct-c

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD20000-USD300000

Packaging Details: Plywood Cases

Delivery Time: 60-90days

Payment Terms: L/C, T/T

Supply Ability: 10sets

Get Best Price
Highlight:

480kg Meat Drying Machine

,

192 Trays Meat Drying Machine

,

480kg Industrial Food Dryer

Condition:
New
Warranty:
1 Year
Heating Source:
Electricity, Steam, Or Both
Application:
Chemical
Material:
SUS304
Voltage:
220v/380v
Drying Capacity:
35-480kg
Power Of Fan:
0.45-1.8kw
Drying Trolly:
2-8 Sets
Baking Trays:
16-192
Condition:
New
Warranty:
1 Year
Heating Source:
Electricity, Steam, Or Both
Application:
Chemical
Material:
SUS304
Voltage:
220v/380v
Drying Capacity:
35-480kg
Power Of Fan:
0.45-1.8kw
Drying Trolly:
2-8 Sets
Baking Trays:
16-192

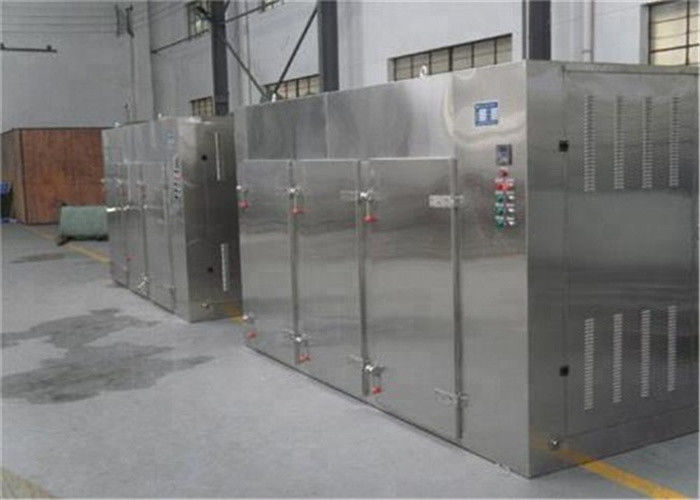

high speed 192 Trays 480kg Meat Drying Machine Industrial Food Dryer

Commercial Meat Fish Drying Oven Equipment Fruit Vegetable Dehydrator Industrial Food Dryer





Two drying cart(695*935*1430) was equipped, the hot circulation fan adopts 2 0.45 KW Axial flow fan, 48 0.5mm drying trays are also adopted. There is dehumidifier fan besides the outlet. The controlling of the temperature is displayed by numbersautomatically. Other parts are equipped as the standards in the business. This is the electric heating one.






The working standard of the drying oven.



1. Working temperature:50-140℃(can be adjusted according to the requirement)
2. The total air flow of the hot air circulation is 3450x2=6900 m3/H
3. Heating source : electrical heating heating power: 15kw
4. Max capacity: 120kg/batch







high speed 192 Trays 480kg Meat Drying Machine Industrial Food Dryer 0







Technical parameters



type batch drying capacity (kg) power of fan steam to be consumed (kg/h) drying trolly (set)  baking trays overall dimension mm
GMP-0 35 0.45 8 / 16 1130*1100*1750
GMP-I 120 0.45 18 2 48 2300*1200*2000
GMP-II 240 0.9 36 4 96 2300*2200*2000
GMP-III 360 1.35 54 6 144 3430*2200*2000
GMP-IV 480 1.8 72 8 192 4460*2200*2290


Note: The above data is for reference only. If having special requirements, the factory can provide the service of consultation and design.







high speed 192 Trays 480kg Meat Drying Machine Industrial Food Dryer 1

APPLICATION



Applicable to the pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, Heavy industries, such as heating materials and products curing, drying dehydration. Raw materials such as medicine, health medicine, Chinese medicine Pieces, extract, powder, granules, granules, Shuiwan, bottles, paint dyes, dehydrated vegetables, melons and other fruits dry sausage, plastic resins, electrical components, such as Hongqi.





high speed 192 Trays 480kg Meat Drying Machine Industrial Food Dryer 2



Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.

Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (
2). Delivery on time. (3). Provide full set of documents as customer’s requirements.



After-sale service:
Provide considerate services to minimize clients’ worries.

1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.



Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.

2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.

3. Send every client a preferential quotation.
