Product Details
Place of Origin: CHANGZHOU
Brand Name: Xin Shengman
Certification: ISO9001 and CE
Model Number: Hollow Paddle Dryer
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Price: USD1,5000-USD20,3000
Packaging Details: Plywood cases
Delivery Time: 30-60 days
Payment Terms: T/T
Supply Ability: 6sets/Month
Name: |
Sludge Drying Machine |
Power: |
Variable |
After-sales Service: |
Engineers Available To Service Machinery Overseas |
Warranty: |
1 Year |
Material: |
304 Stainless Steel |
Heating Method: |
Hot Water/steam/oil |
Capacity: |
As U Requirement |
Heating Source: |
Steam, Electricity, Etc |
Model: |
KJG-13 KJG-24 KJG-36 KJG-24 KJG-110, ETC |
Condition: |
New |
Application: |
Industry |
Voltage: |
Customed |
Name: |
Sludge Drying Machine |
Power: |
Variable |
After-sales Service: |
Engineers Available To Service Machinery Overseas |
Warranty: |
1 Year |
Material: |
304 Stainless Steel |
Heating Method: |
Hot Water/steam/oil |
Capacity: |
As U Requirement |
Heating Source: |
Steam, Electricity, Etc |
Model: |
KJG-13 KJG-24 KJG-36 KJG-24 KJG-110, ETC |
Condition: |
New |
Application: |
Industry |
Voltage: |
Customed |

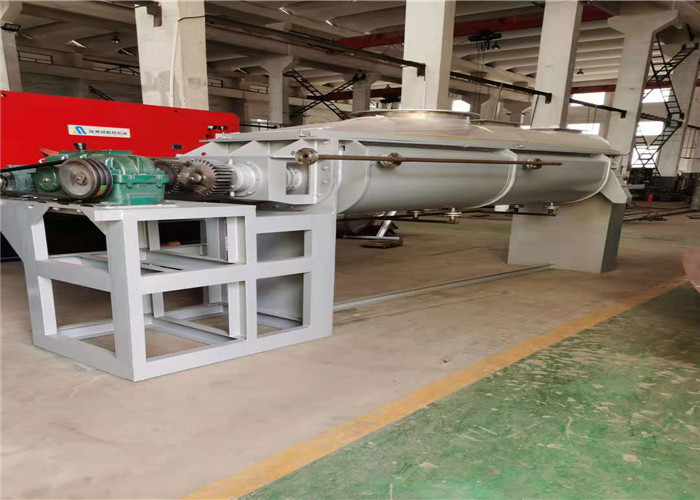

Jyg Series Municipal Sludge Process Equipment Hollow Paddle LDPE & HDPE Dryer Equipmen
The paddle dryer is a machine used to heat treat powders, granulates, filter cakes and pasty products in a full-continuous process.
These processes vary from drying, cooling, crystallizing and calcimining to melting, evaporating, solvents, sterilizing, etc
The paddle dryer has a heated through containing rotating heated paddle shafts. The product is fed into the front of the machine. The through is oriented at a small angle of inclination, placed slightly in unloading position. The product moves to the outlet as a result of gravity. The paddles do not have a transport function.
They are designed for maximum heat transfer. At the outlet side, the product moves out of the machine via the overflow unit.
Working Principle
steam or thermal oil injected in the rotary shafts and the hollow blades.Wet sludge is fed into the paddle dryer machine by the screw feeder or sludge pump, and then is heated indirectly by the heat medium.New surface area is released continuously while the shafts rotate so that hot soda ash gets cooled in a high thermal efficiency.
Dry product is discharged through the discharge valve, while the dusty air is cleaned in the cyclone dust collector.
Technical parameters
| Model | KJG-2.7 | KJG-24 | KJG-52 | KJG-81 | KJG-110 |
| Heat transfer area | 2.7 | 24 | 52 | 81 | 110 |
| effective volume | 0.06 | 1.53 | 3.96 | 6.43 | 9.46 |
| revolution | 15-30 | 10-20 | 10-20 | 5-15 | 5-10 |
| power | 2.2 | 11 | 30 | 55 | 95 |
| width of dryer body | 306 | 1118 | 1474 | 1828 | 2210 |
| total width | 736 | 1474 | 1854 | 2286 | 2668 |
| length of dryer body | 1956 | 3454 | 5258 | 6020 | 6122 |
| total length | 2972 | 6147 | 8306 | 9678 | 9880 |
| distance between feeding and disharging | 1752 | 3150 | 4954 | 5562 | 5664 |
| height in center | 380 | 1066 | 1220 | 1220 | |
| total height | 762 | 2032 | 2464 | 2668 | |
| steam inlet | (2) 3/4 | (2) 1 | (2) 11/2 | (2) 11/2 | (2) 2 |
| water outlet | (2) 3/4 | (2) 1 | (2) 11/2 | (2) 11/2 | (2) 2 |
Applications
calcium nitrate, calcium sulfate, calcium paper, calcium carbonate, magnesium hydroxide, carbon black, iron black, iron oxide red, soda, soda ash, etc.;
2, organic chemical industry
dyestuff, industrial plastic, polystyrene, polypropylene, high density polyethylene, polypropylene, etc.;
3, smelting industry
tar, sulfur, nickel ore concentrate ore concentrate removing phenol, etc.;
4, food, medical industry
starch, pharmaceutical, salt, protein, etc.;
5, other: sludge, waste residue, chicken feed, lees, etc.;
