12v 80m2 Chemical Slurry Hollow Paddle Dryer For Electroplating Sludge

Product Details

Place of Origin: CHANGZHOU

Brand Name: Xin Shengman

Certification: ISO9001 and CE

Model Number: Hollow Paddle Dryer

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Price: USD1,5000-USD20,3000

Packaging Details: Plywood cases

Delivery Time: 30-60 days

Payment Terms: T/T

Supply Ability: 6sets/Month

Get Best Price
High Light:

electroplating sludge hollow paddle dryer

,

chemical slurry hollow paddle dryer

,

self cleaning vacuum paddle dryer

Name:
Paddle Drying Machine
Power:
Variable
After-sales Service:
Engineers Available To Service Machinery Overseas
Warranty:
1 Year
Material:
304 Stainless Steel
Heating Method:
Hot Water/steam/oil
Capacity:
As U Requirement
Heating Source:
Steam, Electricity, Etc
Model:
KJG-13 KJG-24 KJG-36 KJG-24 KJG-110, ETC
Condition:
New
Application:
Industry
Name:
Paddle Drying Machine
Power:
Variable
After-sales Service:
Engineers Available To Service Machinery Overseas
Warranty:
1 Year
Material:
304 Stainless Steel
Heating Method:
Hot Water/steam/oil
Capacity:
As U Requirement
Heating Source:
Steam, Electricity, Etc
Model:
KJG-13 KJG-24 KJG-36 KJG-24 KJG-110, ETC
Condition:
New
Application:
Industry
12v 80m2 Chemical Slurry Hollow Paddle Dryer For Electroplating Sludge

12V 80m2 Chemical Slurry Hollow Shaft Paddle Dryer for Electroplating Sludge





--1 Drying efficiency could arrives 80%-90%. Heat transfer coefficient K is 100-300Kcai/h.m2ºC. Evaporation capacity is 10-30Kcai/h.m2.
--2 The dryer support continuous operation and batch operation, support vacuum drying for thermal sensitive material and normal drying. Support heating, evaporating and cooling.
--3 Thermal oil, steam, hot water and chilling fluid are available to be used as heating/cooling medium
--4 Special structure of paddle which has large heating area.
--5 Structure of dryer is very compact, almost of the dryer could be transported by normal container.





Working Principle


The Hollow Paddle Dryer has a metal wall which separates the process mass from the heat source (steam or hot oil). High thermal efficiency is obtained because the heat from the thermal medium goes directly into the process mass. As the material comes into contact with the heated through and agitators, the process mass is heated via conduction. With an insulated dryer, very little heat is lost. To evaporate 1kg of water only requires about 1.2kg of steam for slurry materials. Exhaust gas is minimal and at a low temperature. Therefore, the volume of non-condensable gas from the dryer, which might require treatment, is minimal.



The dryer is an indirect heat transfer device which utilizes a high degree of mechanical agitation to enhance contact with the product being dried. Evaporation rates per square foot of heat transfer surface are maximized through self-cleaning paddles and the mixing effect. Movement of the process material between the slanting surfaces of the revolving wedge-shaped paddles generates shearing forces, which clean the paddle surfaces and maximize conductivity. Counter rotating shafts move the material away from the walls, cleaning the walls by means of the tab on each paddle. This results in higher heat transfer rates than disc or single shaft designs.

The wedge-shaped paddles, and the intermeshing of the dual agitators, create a localized mixing effect around the paddle. This allows more individual particles in the bed to be exposed directly to the heat transfer surface, thereby increasing the heat transfer rate, allowing the use of smaller equipment.

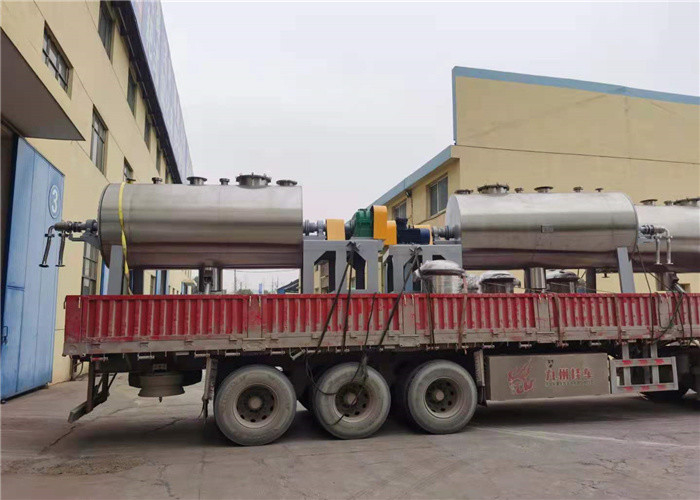

12v 80m2 Chemical Slurry Hollow Paddle Dryer For Electroplating Sludge 0

12v 80m2 Chemical Slurry Hollow Paddle Dryer For Electroplating Sludge 1





Technical parameters



Model KJG-2.7 KJG-24 KJG-52 KJG-81 KJG-110
Heat transfer area 2.7 24 52 81 110
effective volume 0.06 1.53 3.96 6.43 9.46
revolution 15-30 10-20 10-20 5-15 5-10
power 2.2 11 30 55 95
width of dryer body 306 1118 1474 1828 2210
total width 736 1474 1854 2286 2668
length of dryer body 1956 3454 5258 6020 6122
total length 2972 6147 8306 9678 9880
distance between feeding and disharging 1752 3150 4954 5562 5664
height in center 380   1066 1220 1220
total height 762   2032 2464 2668
steam inlet (2) 3/4 (2) 1 (2) 11/2 (2) 11/2 (2) 2
water outlet (2) 3/4 (2) 1 (2) 11/2 (2) 11/2 (2) 2





12v 80m2 Chemical Slurry Hollow Paddle Dryer For Electroplating Sludge 2





Applications



Petrochemical industry: polyolefin powder, polycarbonate resin, high and low-density polyethylene, linear low-density polyethylene, polyacetal granules, nylon 6, nylon 66, nylon 12, acetate, polyphenylene sulfide, propylene base resin, polypropylene, engineering plastics, polyvinyl chloride, polyvinyl alcohol, polystyrene, polyester, polyoxymethylene, styrene-acrylonitrile copolymerization, ethylene-propylene copolymerization.


Environmental protection industry: sludge, electroplating sewage sludge, boiler soot, sugar factory waste residue, pharmaceutical factory waste residue, MSG factory waste residue, coal ash.


Feed industry: soy sauce residue, bone-based feed, distiller's grains, food scraps, apple pomace, orange peel, soybean meal, chicken bone feed, fish meal, feed additives, bio-sludge.


Food industry: starch, cocoa beans, corn kernels, salt, modified starch, medicines.


Chemical industry: soda ash, NPK compound fertilizer, kaolin, bentonite, white carbon black, carbon black, phosphogypsum, calcium sulfate, calcium nitrate, magnesium carbonate, sodium cyanide, oxidized sodium fluoride, aluminum hydroxide, barium sulfate, calcium carbonate, molecular sieves, dyes, saponins.




12v 80m2 Chemical Slurry Hollow Paddle Dryer For Electroplating Sludge 3

Features

1) Low energy consumption: As a result of indirect heating, no much air take away the heating, the outer wall has insulation layer, the heat efficiency can be up to 90%. For slurry, evaporating 1kg of water just need 1.2kg vapor.
2) cheap investment: it has huge effective heat transfer surface area per unit, reduce treatment time, let the machine size become small, so It greatly reduces the construction area and building space.
3) wide range of materials handling: can use different types of media, not only can treat heat-sensitive materials, but also handle high-temperature materials. Common medias are: water vapor, thermal oil, hot water, cooling water and so on.
4) flexible operation method: Can be continuous operation or intermittent operation, can be applied in many fields.
5) Low environmental pollution: don't use air to dry material, dust material entrainment is rare. Small solvent evaporation, easy to treat. For contaminated materials or solvent recovery conditions, closed-loop can be used.
6) Cheap operating costs: Low-speed mixing and reasonable structure, Low wear, low maintenance costs. For normal operation, just only 1 person / day.
7) Stable operation: Due to the special compression-expansion stirring of the wedge blades, the material particle contact with the heat transfer surface enough, it ensure the processing is stable.



12v 80m2 Chemical Slurry Hollow Paddle Dryer For Electroplating Sludge 4
