Textile Sludge Hollow Paddle Dryer Machine Hot Water Heating

Product Details

Place of Origin: CHANGZHOU

Brand Name: Xin Shengman

Certification: ISO9001 and CE

Model Number: Hollow Paddle Dryer

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Price: USD1,5000-USD20,3000

Packaging Details: Plywood cases

Delivery Time: 30-60 days

Payment Terms: T/T

Supply Ability: 6sets/Month

Get Best Price
High Light:

textile sludge hollow paddle dryer

,

hot water heating hollow paddle dryer

,

hot water heating vacuum paddle dryer

Name:
Paddle Drying Machine
Power:
Variable
After-sales Service:
Engineers Available To Service Machinery Overseas
Warranty:
1 Year
Material:
304 Stainless Steel
Heating Method:
Hot Water/steam/oil
Capacity:
As U Requirement
Heating Source:
Steam, Electricity, Etc
Model:
KJG-13 KJG-24 KJG-36 KJG-24 KJG-110, ETC
Condition:
New
Application:
Textile Sludge
Place Of Origin:
Jiangsu, China
Name:
Paddle Drying Machine
Power:
Variable
After-sales Service:
Engineers Available To Service Machinery Overseas
Warranty:
1 Year
Material:
304 Stainless Steel
Heating Method:
Hot Water/steam/oil
Capacity:
As U Requirement
Heating Source:
Steam, Electricity, Etc
Model:
KJG-13 KJG-24 KJG-36 KJG-24 KJG-110, ETC
Condition:
New
Application:
Textile Sludge
Place Of Origin:
Jiangsu, China
Textile Sludge Hollow Paddle Dryer Machine Hot Water Heating

High quality Chinese Dryer manufacture Textile sludge Hollow paddle drying Machine



Product Description:

Dual counter-rotating shafts with unique intermeshing hollow wedge-shaped paddles produce intimate mixing, optimize heat transfer, and provide a self-cleaning feature. A large heat transfer area to volume ratio is achieved by the use of hollow paddles and a jacketed vessel, through which the heating medium flows. The result is an efficient, compact machine with less space requirements and lower installation cost.



Working Principle


The cylinder is a jacket structure in which hot steam circulates inside. During operation, water vapor is introduced into the jacket, hollow shaft, and blade to provide the heat required for drying; a very small amount of air is introduced into the dryer and used as a carrier for the steam (or organic steam) that evaporates during drying; the material enters the machine from the feed port, and is conveyed by the hollow blade to the discharge port for discharging. The material is heated and evaporated by the hollow blade and the jacket during the conveying process to be dried. The heat transfer surface of the wedge blade has a self-cleaning function. The relative motion between the particles and the wedge surface produces a washing effect that washes away the adhering material on the surface of the blade, which allows the material to have a long residence time and a high fill factor.

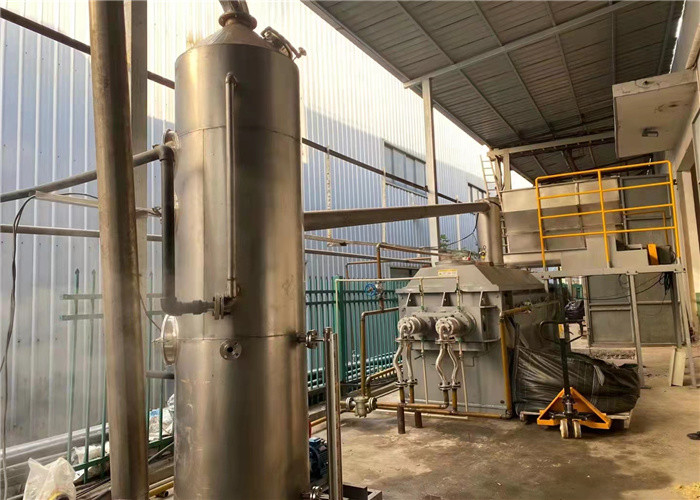

Textile Sludge Hollow Paddle Dryer Machine Hot Water Heating 0

Textile Sludge Hollow Paddle Dryer Machine Hot Water Heating 1





Technical parameters



Model KJG-2.7 KJG-24 KJG-52 KJG-81 KJG-110
Heat transfer area 2.7 24 52 81 110
effective volume 0.06 1.53 3.96 6.43 9.46
revolution 15-30 10-20 10-20 5-15 5-10
power 2.2 11 30 55 95
width of dryer body 306 1118 1474 1828 2210
total width 736 1474 1854 2286 2668
length of dryer body 1956 3454 5258 6020 6122
total length 2972 6147 8306 9678 9880
distance between feeding and disharging 1752 3150 4954 5562 5664
height in center 380   1066 1220 1220
total height 762   2032 2464 2668
steam inlet (2) 3/4 (2) 1 (2) 11/2 (2) 11/2 (2) 2
water outlet (2) 3/4 (2) 1 (2) 11/2 (2) 11/2 (2) 2





Textile Sludge Hollow Paddle Dryer Machine Hot Water Heating 2





Applications



Petrochemical industry: polyolefin powder, polycarbonate resin, high and low-density polyethylene, linear low-density polyethylene, polyacetal granules, nylon 6, nylon 66, nylon 12, acetate, polyphenylene sulfide, propylene base resin, polypropylene, engineering plastics, polyvinyl chloride, polyvinyl alcohol, polystyrene, polyester, polyoxymethylene, styrene-acrylonitrile copolymerization, ethylene-propylene copolymerization.


Environmental protection industry: sludge, electroplating sewage sludge, boiler soot, sugar factory waste residue, pharmaceutical factory waste residue, MSG factory waste residue, coal ash.


Feed industry: soy sauce residue, bone-based feed, distiller's grains, food scraps, apple pomace, orange peel, soybean meal, chicken bone feed, fish meal, feed additives, bio-sludge.


Food industry: starch, cocoa beans, corn kernels, salt, modified starch, medicines.


Chemical industry: soda ash, NPK compound fertilizer, kaolin, bentonite, white carbon black, carbon black, phosphogypsum, calcium sulfate, calcium nitrate, magnesium carbonate, sodium cyanide, oxidized sodium fluoride, aluminum hydroxide, barium sulfate, calcium carbonate, molecular sieves, dyes, saponins.




Textile Sludge Hollow Paddle Dryer Machine Hot Water Heating 3

Features

1) Low energy consumption: As a result of indirect heating, no much air take away the heating, the outer wall has insulation layer, the heat efficiency can be up to 90%. For slurry, evaporating 1kg of water just need 1.2kg vapor.
2) cheap investment: it has huge effective heat transfer surface area per unit, reduce treatment time, let the machine size become small, so It greatly reduces the construction area and building space.
3) wide range of materials handling: can use different types of media, not only can treat heat-sensitive materials, but also handle high-temperature materials. Common medias are: water vapor, thermal oil, hot water, cooling water and so on.
4) flexible operation method: Can be continuous operation or intermittent operation, can be applied in many fields.
5) Low environmental pollution: don't use air to dry material, dust material entrainment is rare. Small solvent evaporation, easy to treat. For contaminated materials or solvent recovery conditions, closed-loop can be used.
6) Cheap operating costs: Low-speed mixing and reasonable structure, Low wear, low maintenance costs. For normal operation, just only 1 person / day.
7) Stable operation: Due to the special compression-expansion stirring of the wedge blades, the material particle contact with the heat transfer surface enough, it ensure the processing is stable.



Textile Sludge Hollow Paddle Dryer Machine Hot Water Heating 4
