Product Details
Place of Origin: China
Brand Name: Xin ShengMan
Certification: CE and ISO9001
Model Number: LPG-5/10/100/200/300/500/1000
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: USD10000-USD300000
Packaging Details: Plywood cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10sets/Month
Type: |
Spray Dryer Drying Equipment |
Certificate: |
ISO9001 And CE |
Service: |
Online |
Heating Source: |
Electrical, Oil, Coal, Steam |
Voltage: |
380V 50Hz |
Steel Material: |
Stainless Steel 304, 316, Carbon Steel |
Control: |
PLC Touch Screen |
Dimension (L*W*H): |
Depend On The Model |
Atomizer: |
Centrifugal Atomizer |
Warranty: |
1 Year |
Material: |
Liquid Material |
Type: |
Spray Dryer Drying Equipment |
Certificate: |
ISO9001 And CE |
Service: |
Online |
Heating Source: |
Electrical, Oil, Coal, Steam |
Voltage: |
380V 50Hz |
Steel Material: |
Stainless Steel 304, 316, Carbon Steel |
Control: |
PLC Touch Screen |
Dimension (L*W*H): |
Depend On The Model |
Atomizer: |
Centrifugal Atomizer |
Warranty: |
1 Year |
Material: |
Liquid Material |

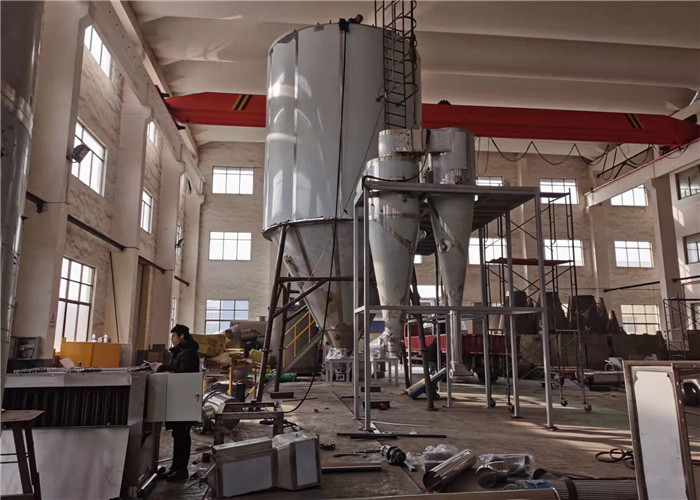

Lithium Iron Phosphate Spray Dryer drying Equipment in New Energy Industry
Descriptions
In the spray dryer, the liquid to be dried is sprayed in the form of mist. The minute droplets are readily evaporated and get converted into solid particles, which fall to the bottom of the chamber.
The vapors are transferred into the separator where the fine dry particles which are carried along with the vapors' are separated and collected. Spray dryers are available in many forms and designs.
A typical spray dryer consists of a drying chamber which is just like the cyclone separator, so as to ensure the good circulation of air to facilities heat and mass transfer and also to ensure that the dried particles are separated by the centrifugal action.
Principle
The air is through the filter and heater, the air distributor which enters the dedicator top, the hot air takes the form of spiral
and enters the dedicator evenly. The material liquid , from the material liquid trough from the at odds with the community or the leadership atomizer for the dedicator top of pump sending through the filter, make the material liquid gush out into an extremely small calorific drop, material liquid and hot air flow and keep in touch, moisture evaporate rapidly, within extremely short time dry to become finished product, finished product discharge by dry tower bottom and whirlwind separator, the waste gas is discharged by the air blower.
Features
For the LPG series high speed centrifugal spray dryer, it consists of of liquid delivery, air filtering and heating, liquid atomizing, drying chamber, air exhausting and material collecting, control system and so on, the feature for each system as bellow:
1.The liquid delivery system consists of liquid tank, magnetic filter, pump and so on as to ensure the liquid enter into the atomizer smoothly.
2.Air filtering system and heating system
Before the fresh air enter into the heater, it should pass through the Pre&post filter first, and then enter the heater for heating. For the heating method, there are electrical heater steam radiator, gas furnace and so on. Which method to choose depends on the customer site conditions.To ensure the drying medium enter into the drying chamber with high purity, the heated air should go through the High efficiency filter before enters the drying chamber.
3. Atomizing system
The atomizing system consists of high speed centrifugal atomizer with inverter and so on.
The powder from the high speed centrifugal atomizer is between 40-120 microns.
4. Drying Chamber system
The drying chamber consists of the spiral shell, hot air distributor, main tower and relevant fittings.
The Spiral shell and hot air distributor: the spiral shell and hot air distributor at the air inlet of the tower top can regulate air flow rotation angle according to the specific condition, guide the air flow inside the tower effectively and avoid the material stick on the wall.in the middle there is the position for installing the atomizer.
Drying tower: The inner wall is SUS mirror sheet, ad welded by the arc welding. The insulation is rock wool.
The tower is manhole and view port as to convenient to clean and maintain the tower. For the Tower body cross interface, pipe elbow are arc butt design, reduce dead angle; sealed type.
The main tower is equipped with air hammer, controlled by the pulse, and hitting the main drying tower timely as to avoid the dust stick on the wall
5. Air exhausting and product collecting system
For the material collecting system, there are several types. Such as cyclone, cyclone+bag filter, bag filter, cyclone +water scrubber and so on. The method is depending on the material property itself. For the filtering system for the outlet air, we have filter on request.
6. Control system
HMI+PLC, each parameter can be displayed on the screen. Every parameter can be controlled and recorded easily.
Centrifugal spray atomizer Features
1. High speed drying. The surface area of Raw Material liquid increased a lot after atomization through nebulizer, 95%-98% of moisture will be evaporated in high temperature airflow in a flash, only needs seconds time.
Technical parameters
Model | PLG | |||||
5 | 25 | 50 | 100 | 150 | 200-2000 | |
inlet temperatyre ℃ | 140-350 automatically controlled | |||||
outlet temperatyre ℃ | 80-90 | |||||
Max water evaporation capacity kg/h | 5 | 25 | 50 | 100 | 150 | 200-2000 |
centrifugal spraying nozzle transmission mode | compressed air transmission | mechaical transmission | ||||
rotation speed (r.p.m) | 25000 | 18000 | 18000 | 18000 | 15000 | 8000-15000 |
spraying desc diameter (mm) | 50 | 100 | 120 | 140 | 150 | 180-340 |
max electric heating power (kw) | 9 | 36 | 63 | 81 | 99 | settled by customer |
overall dimensions | 1.8*0.93*2.2 | 3*2.7*4.26 | 3.7*3.2*5.1 | 4.6*4.2*6 | 5.5*4.5*7 | depends on tryer |
dried powder collection | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 |
Applications
Chemical Industry: Sodium fluoride(potassium),alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on.
Plastics and resin: AB,ABS emulsion,uric acid resin,phenolic aldehyde resin,urea-formaldehyde resin,formaldehyde resin,polythene,poly-chlotoprene and etc.
Food Industry: Fatty milk powder,protein,cocoa milk powder,substitute milk powder,egg white(yolk),food and plant,oats,chicken juice,coffee,instant dissoluble tea,seasoning meat,protein,soybean,peanut protein,hydrolysate and so forth.
Sugar, corn syrup, corn starch, glucose, pectin, malt sugar, sorbic acid potassium and etc.
Ceramic: aluminium oxide,ceramic tile material,magnesium oxide,talcum and so on.
