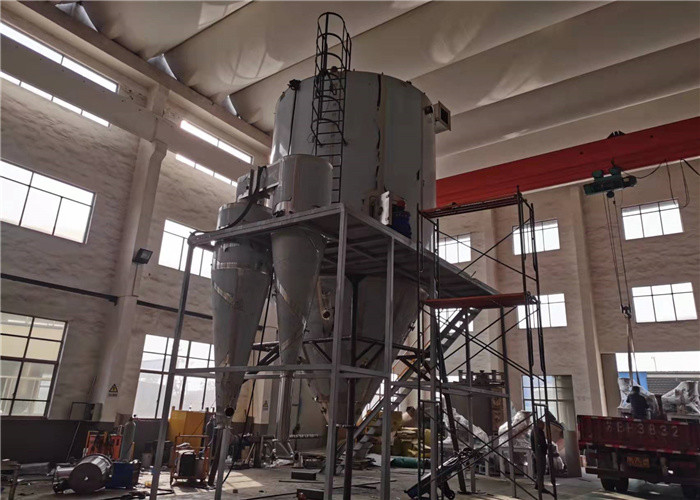

Nozzle Jet Atomization Spray Dryer Industrial Steam Heating Stainless Steel 304

Nozzle Jet Atomization spray dryer In Pharmaceutical Product PRICE For Milk Medicine Powder

1, Feed system

It is composed of screw pump and feed pipe and valve.

The screw pump adopts frequency conversion speed regulation to effectively control the feed quantity. The main part of the pipeline valve is SUS304 stainless steel, and it is clean and sanitary

2 , Medium circulation system

It is composed of blower, draft fan, muffler, air regulating butterfly valve and wind pipe

Draft fan and blower are high quality manufacturers supply, cooperation for many years, quality is stable; the blower for SUS304 stainless steel, to ensure clean air; fan with a silencer, effectively reduce the noise. The system volume, wind pressure, wind speed, is the key, based on years of experience, is now mature.

3, Air heating and cleaning system

It consists of early, medium and high temperature HEPA filters, fans, steam radiators, electric heaters, etc.

The heat source is a steam radiator and an electric heater. The material is made of stainless steel pipes and stainless steel fins. The utility model not only ensures the cleanness of the air inlet system, but also has high thermal efficiency and can guarantee the output heat

4, Drying tower system

It is composed of a dry main tower, a hot air distributor, an atomizer, an observation manhole, a tower lighting device, a pneumatic hammer, a lower bin, a cylinder body and a cone jacket, and a cooling system

This system is the core system

1, combined with the test experience, we in the design process of the main tower of the main tower: adjust the straight cylinder height to diameter ratio, adjusted by 0.9:1 routine to about 1.1:1; prolong the retention time of the material, the drying effect is ensured. The adjustment of the taper cone tower, consists of a conventional 60 degree angle adjustment to 54 degrees, fully considering the smooth material in the cone when feeding.

2, the atomizer atomizer using frequency converter to adjust the speed to achieve the best effect. The base will reduce the atomizing atomizer, the atomizing disk atomizer and increase the distance, the droplets in the air can not be returned under the spinning top, in order to ensure the normal operation of the system.

3, design a set of Taneiduo lighting devices and 1 doors, manholes.

4, hot air vortex shell tower by accelerating structure, the hot air in the tower when pressed material effectively, orderly and swirl decreased. Hot air distributor with the characteristics and requirements of the technology, do both sides distributor the wind guiding mechanism, and can adjust the angle, in order to control the hot air into the tower when the tangential angle.

5, the main tower design of jacket cooling cooling system: to avoid the main tower body wall temperature is too high and the receiving effect of the adsorption tower in the cone wall material by high temperature and coking softening phenomenon, ensure the quality of the materials.

5, Product collection system

The utility model is composed of a cyclone separator and a water film dust collector

6, Cold desiccant charging system

It is composed of air filter, freezing dehumidifier, cleaning pipe and so on. The system sends the fresh air to the clean area and collects the cooling air after the filtered fresh air passes through the refrigeration dehumidifier

7, Other auxiliary system

Are well-known manufacturers of supply, reliable performance; some pipes take into account a certain angle design, the use of suppression stainless steel pipe, to avoid the end material, blocking material, and local resistance is too large, affecting the phenomenon of material delivery

Main Features

Technical parameters


Applications

Centrifugal spray dryer is the most widely used process in liquid shaping technology. Can be used for:

Chemical industry: sodium fluoride (potassium), basic dyes and pigments, dye intermediates, compound fertilizers, formaldehyde silicic acid, catalysts, sulfuric acid, amino acids, white carbon black, etc.

Plastic resin: AB, ABS emulsion, urinary formaldehyde resin, phenolic resin, dense rubber (urea) formaldehyde resin, polyethylene, polyvinyl chloride, etc.

Food industry: fat-rich milk powder, gluten, cocoa milk powder, milk substitutes, blood hunting powder, egg white (yellow), etc.

Food and plants: oats, chicken juice, coffee, instant tea, flavored meat, protein, soybean, peanut protein, hydrolysate, etc.

Sugars: corn syrup, corn starch, glucose, pectin, maltose, potassium sorbate, etc.

Ceramics: alumina, ceramic tile materials, magnesium oxide, talcum powder, etc.

FAQ

Q: How can I visit your factory?
A: Our company is in Changzhou city, and it is very near Shanghai city. It takes about 1 hour to get to Changchou. Or we can even visit you in Shnghai.

Q: What’s the quality of your products?
A: Our products come with best quality, and passed CE certification. And exported to lots countries around the world, such as Australia, Malaysia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.

Q: What to do if the machine has a problem?
A: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.

Q: How long is the warranty of your equipment?
A: One year.

Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.

Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai. If you request CIF, please give us your delivery port, and we will give you CIF price.
