Oil Heating Touch Screen Spray Drying Machine In Pharmaceutical Chemical Food Powder

Product Details

Place of Origin: China

Brand Name: Xin ShengMan

Certification: CE and ISO9001

Model Number: LPG-5/10/25/50/100/200/300

Payment & Shipping Terms

Minimum Order Quantity: 1Set

Price: USD10000-USD600000

Packaging Details: Plywood cases

Delivery Time: 60-90days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10sets/Month

Get Best Price
Highlight:

oil heating spray drying machine

,

touch screen spray drying machine

,

touch screen spray dryer in pharmaceutical

Type:
Powder Spray Drier
Certificate:
ISO9001 And CE
Service:
Engineers Available To Service Machinery Overseas
Heating Source:
Electrical, Oil, Coal, Steam
Power (Kw):
Depend On The Model
Material:
Stainless Steel 304, Carbon Steel
Control:
PLC Touch Screen
Package:
Depend On Model
Dimension (L*W*H):
Depend On The Model
Voltage:
220V - 415V
Warranty:
12 Years
Supplier:
Factory Directly
Type:
Powder Spray Drier
Certificate:
ISO9001 And CE
Service:
Engineers Available To Service Machinery Overseas
Heating Source:
Electrical, Oil, Coal, Steam
Power (Kw):
Depend On The Model
Material:
Stainless Steel 304, Carbon Steel
Control:
PLC Touch Screen
Package:
Depend On Model
Dimension (L*W*H):
Depend On The Model
Voltage:
220V - 415V
Warranty:
12 Years
Supplier:
Factory Directly
Oil Heating Touch Screen Spray Drying Machine In Pharmaceutical Chemical Food Powder



Pharmaceutical Chemical Food Powder Spray Drier In Spray Drying Equipment



Descriptions

Spray drying is a fascinating continuous process to transform liquids (solutions, emulsions, suspensions, slurries, pastes) into micron size powder or particles with adjustable distribution, shape, porosity, density, and chemical composition. Application is found in the food, pharmaceutical, chemical, and material industries with adjustable distribution, shape, porosity, density, and chemical composition. Application is found in the food, animal feed, pharmaceutical, chemical, and material industries


Principle

After been filtered and heated the air enters into the air distrbutor on the top of the dryer.The hot air enters into the drying room in the spiral form and uniformly. Passing through the high-speed centrifugal sprayer on the top of the tower,the material liquid will rotate and be sprayed into the extremely fine mist liquid beads.Trough the very short time of contacting the heat air,the materials can be dried into the final products.The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.

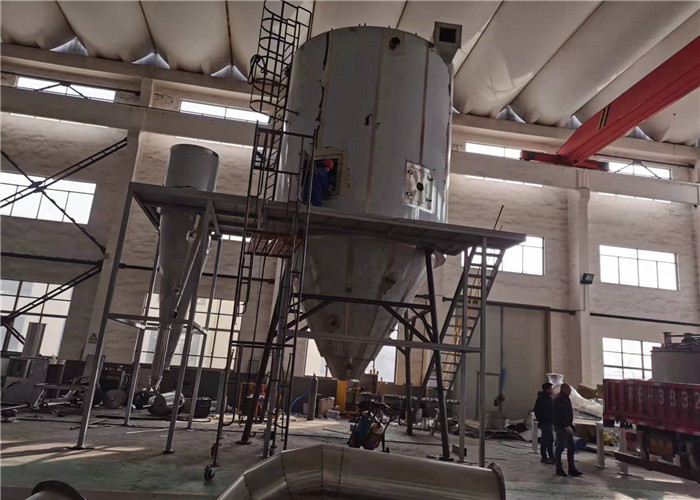

Oil Heating Touch Screen Spray Drying Machine In Pharmaceutical Chemical Food Powder 0



Features


(1) Fast drying speed, material liquid after atomization, significantly increased surface area, in the hot air flow, instantaneous evaporation can be 95% 98% moisture, to complete the drying time only a few seconds, and especially suitable for drying of thermal sensitive material.


(2) Products with good uniformity, fluidity and solubility, the product high purity, good quality.


(3) Production process is simple, convenient operation and control. Special material for 40-60% moisture content (90%) of the liquid to a dry powder products, dried without crushing and screening, reduce the production process, improve product purity. To the product particle size, bulk density, moisture, within a certain range can be adjusted by changing the operating conditions, control and management is very convenient.

Oil Heating Touch Screen Spray Drying Machine In Pharmaceutical Chemical Food Powder 1





Centrifugal spray atomizer Features

1.The drying speed is high when the material liquid is atomized,the surface area of the material will increase greatly.In the hot-air flow,95%-98% of water can be evaporated at a moment.The time of completing the drying is only several seconds. This is especially suitable for drying the heat sensitive materials.


2.Its final products own the good uniformity, flow ability & solubility. And the final products are high in purity and good in quality.


3.The production procedures are simple and the operation and control are easy.The liquid with moisture contents of 40-60%(for special materials,the contents might be up to 90%).can be dried into the powder or particle products once a time. After the drying process, there is no need for smashing and sorting,so as to reduce the operation procedures in the production and to enhance the product purity.The product particle diameters,looseness and water contents can be adjusted through changing the operation condition within a certain range. It is very convenient to carry out control and managment.



Oil Heating Touch Screen Spray Drying Machine In Pharmaceutical Chemical Food Powder 2



Technical parameters


Model PLG
5 25 50 100 150 200-2000
inlet temperatyre ℃ 140-350 automatically controlled
outlet temperatyre ℃ 80-90
Max water evaporation capacity  kg/h 5 25 50 100 150 200-2000
centrifugal spraying nozzle transmission mode    compressed air       transmission mechaical transmission
rotation speed (r.p.m) 25000 18000 18000 18000 15000 8000-15000
spraying desc diameter (mm)                50 100 120 140 150 180-340
max electric heating power  (kw)                 9 36 63 81 99 settled by customer
overall dimensions        1.8*0.93*2.2 3*2.7*4.26 3.7*3.2*5.1 4.6*4.2*6 5.5*4.5*7 depends on tryer
dried powder collection               ≥95 ≥95 ≥95 ≥95 ≥95 ≥95







Applications


Chemical Industry: Sodium fluoride(potassium),alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on.

Plastics and resin: AB,ABS emulsion,uric acid resin,phenolic aldehyde resin,urea-formaldehyde resin,formaldehyde resin,polythene,poly-chlotoprene and etc.

Food Industry: Fatty milk powder,protein,cocoa milk powder,substitute milk powder,egg white(yolk),food and plant,oats,chicken juice,coffee,instant dissoluble tea,seasoning meat,protein,soybean,peanut protein,hydrolysate and so forth.

Sugar, corn syrup, corn starch, glucose, pectin, malt sugar, sorbic acid potassium and etc.

Ceramic: aluminium oxide,ceramic tile material,magnesium oxide,talcum and so on.



Oil Heating Touch Screen Spray Drying Machine In Pharmaceutical Chemical Food Powder 3





FAQ



1. Can I use this spray drying machine to extract some raw materials?
Yes, in order to help you better, we suggest you provide the name of the raw material you want to process.
2. Can I use my own raw materials for extraction test?
Yes, of course. We can do extraction tests and send videos and test reports for your reference.
3. Do you have OEM service? Do you provide parts?
Yes, we will, as long as you provide us with your drawings and detailed requirements.
4. How can we visit your factory?
If you arrive in Shanghai, you can tell us your specific location. We will arrange a driver to pick you up.
5. How to transport equipmen?
We usually choose sea transportation. Laboratory models can be shipped by air according to customer requirements.
6. What is the voltage of the equipment?
The equipment voltage is 380V, if the user requires 220V, the specific can be customized according to the voltage standard of the country where your equipment is used.
7. what is your after-sales service?
We provide the English manual of the equipment manual. If you need, we will send an engineer to install and train workers.
