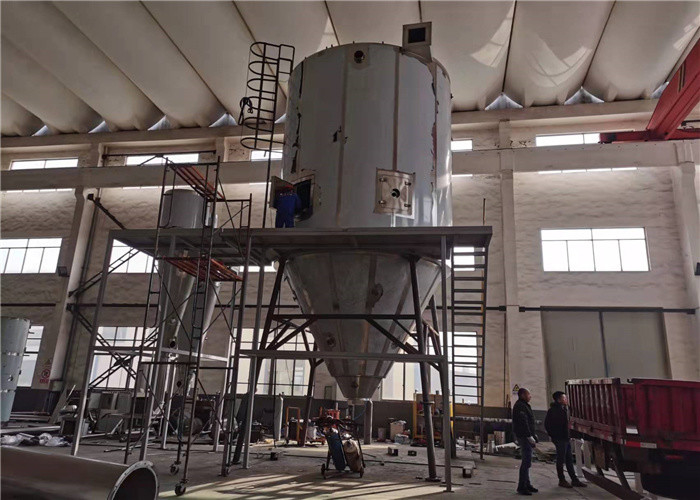

200 Kg/H Water Evaporation Centrifugal Spray Dryer Powder Making Machine

200kg/H Water Evaporation Powder Making Machine Centrifugal Atomizer Spray Drier Drying Machine

Descriptions

The spray drying is the widest used technology in the liquid shaping technology and in the drying industry. It is most suitable for producing powder, particle, or block solid products from materials of solution, emulsion, soliquoid and pumpable paste states. Therefore, when the particle size and distribution of the final products, their residual water contents, the stocking density and the particle shape meet the precision standards, the spray drying is one of the most desired technologies.

Principle

After been filtered and heated the air enters into the air distrbutor on the top of the dryer.The hot air enters into the drying room in the spiral form and uniformly. Passing through the high-speed centrifugal sprayer on the top of the tower,the material liquid will rotate and be sprayed into the extremely fine mist liquid beads.Trough the very short time of contacting the heat air,the materials can be dried into the final products.The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.


Features


(1) Fast drying speed, material liquid after atomization, significantly increased surface area, in the hot air flow, instantaneous evaporation can be 95% 98% moisture, to complete the drying time only a few seconds, and especially suitable for drying of thermal sensitive material.

(2) Products with good uniformity, fluidity and solubility, the product high purity, good quality.

(3) Production process is simple, convenient operation and control. Special material for 40-60% moisture content (90%) of the liquid to a dry powder products, dried without crushing and screening, reduce the production process, improve product purity. To the product particle size, bulk density, moisture, within a certain range can be adjusted by changing the operating conditions, control and management is very convenient.

Centrifugal spray atomizer Features

1.The drying speed is high when the material liquid is atomized,the surface area of the material will increase greatly.In the hot-air flow,95%-98% of water can be evaporated at a moment.The time of completing the drying is only several seconds. This is especially suitable for drying the heat sensitive materials.


2. Its final products own the good uniformity, flow ability & solubility. And the final products are high in purity and good in quality.


3. The production procedures are simple and the operation and control are easy.The liquid with moisture contents of 40-60%(for special materials,the contents might be up to 90%).can be dried into the powder or particle products once a time. After the drying process, there is no need for smashing and sorting,so as to reduce the operation procedures in the production and to enhance the product purity.The product particle diameters,looseness and water contents can be adjusted through changing the operation condition within a certain range. It is very convenient to carry out control and managment.

Technical parameters


FAQ

1. Can I use this spray drying machine to extract some raw materials?
Yes, in order to help you better, we suggest you provide the name of the raw material you want to process.
2. Can I use my own raw materials for extraction test?
Yes, of course. We can do extraction tests and send videos and test reports for your reference.
3. Do you have OEM service? Do you provide parts?
Yes, we will, as long as you provide us with your drawings and detailed requirements.
4. How can we visit your factory?
If you arrive in Shanghai, you can tell us your specific location. We will arrange a driver to pick you up.
5. How to transport equipmen?
We usually choose sea transportation. Laboratory models can be shipped by air according to customer requirements.
6. What is the voltage of the equipment?
The equipment voltage is 380V, if the user requires 220V, the specific can be customized according to the voltage standard of the country where your equipment is used.
7. what is your after-sales service?
We provide the English manual of the equipment manual. If you need, we will send an engineer to install and train workers.
