Product Details
Place of Origin: China
Brand Name: Xin ShengMan
Certification: CE and ISO9001
Model Number: LPG-250
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: USD10000-USD300000
Packaging Details: Plywood cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10sets/Month
Type: |
Large Spray Dryer |
Certificate: |
ISO9001 And CE |
Service: |
Engineers Available To Service Machinery Overseas |
Heating Source: |
Electrical, Oil, Coal, Steam |
Power (Kw): |
Depend On The Model |
Steel Material: |
Stainless Steel 304, Carbon Steel |
Control: |
PLC Touch Screen |
Package: |
Depend On Model |
Dimension (L*W*H): |
Depend On The Model |
Voltage: |
220V - 415V |
Warranty: |
12 Years |
Model: |
LPG-250 |
Type: |
Large Spray Dryer |
Certificate: |
ISO9001 And CE |
Service: |
Engineers Available To Service Machinery Overseas |
Heating Source: |
Electrical, Oil, Coal, Steam |
Power (Kw): |
Depend On The Model |
Steel Material: |
Stainless Steel 304, Carbon Steel |
Control: |
PLC Touch Screen |
Package: |
Depend On Model |
Dimension (L*W*H): |
Depend On The Model |
Voltage: |
220V - 415V |
Warranty: |
12 Years |
Model: |
LPG-250 |

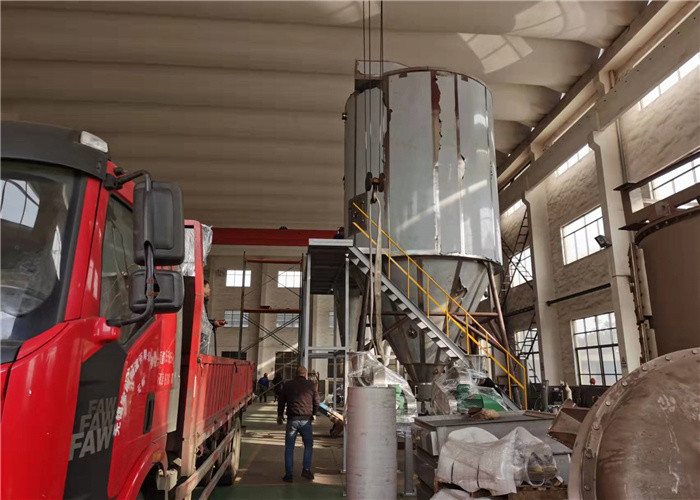

Big Customized High Speed Centrifugal Spray Dry Machine in Large Project
Descriptions
LPG Rotary atomizer spray dryer is a wide applied process in liquid process shaping and drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.
Principle
After filtering and heating, the hot fresh air enter into the air distributor at the top of drying chamber, distributed in spiral way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning.
Features
(1) Fast drying speed, material liquid after atomization, significantly increased surface area, in the hot air flow, instantaneous evaporation can be 95% 98% moisture, to complete the drying time only a few seconds, and especially suitable for drying of thermal sensitive material.
(2) Products with good uniformity, fluidity and solubility, the product high purity, good quality.
(3) Production process is simple, convenient operation and control. Special material for 40-60% moisture content (90%) of the liquid to a dry powder products, dried without crushing and screening, reduce the production process, improve product purity. To the product particle size, bulk density, moisture, within a certain range can be adjusted by changing the operating conditions, control and management is very convenient.
Centrifugal spray atomizer Features
1.The drying speed is high when the material liquid is atomized,the surface area of the material will increase greatly.In the hot-air flow,95%-98% of water can be evaporated at a moment.The time of completing the drying is only several seconds. This is especially suitable for drying the heat sensitive materials.
2.Its final products own the good uniformity, flow ability & solubility. And the final products are high in purity and good in quality.
3.The production procedures are simple and the operation and control are easy.The liquid with moisture contents of 40-60%(for special materials,the contents might be up to 90%).can be dried into the powder or particle products once a time. After the drying process, there is no need for smashing and sorting,so as to reduce the operation procedures in the production and to enhance the product purity.The product particle diameters,looseness and water contents can be adjusted through changing the operation condition within a certain range. It is very convenient to carry out control and managment.
Technical parameters
Model | PLG | |||||
5 | 25 | 50 | 100 | 150 | 200-2000 | |
inlet temperatyre ℃ | 140-350 automatically controlled | |||||
outlet temperatyre ℃ | 80-90 | |||||
Max water evaporation capacity kg/h | 5 | 25 | 50 | 100 | 150 | 200-2000 |
centrifugal spraying nozzle transmission mode | compressed air transmission | mechaical transmission | ||||
rotation speed (r.p.m) | 25000 | 18000 | 18000 | 18000 | 15000 | 8000-15000 |
spraying desc diameter (mm) | 50 | 100 | 120 | 140 | 150 | 180-340 |
max electric heating power (kw) | 9 | 36 | 63 | 81 | 99 | settled by customer |
overall dimensions | 1.8*0.93*2.2 | 3*2.7*4.26 | 3.7*3.2*5.1 | 4.6*4.2*6 | 5.5*4.5*7 | depends on tryer |
dried powder collection | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 |
Applications
Chemical Industry: Sodium fluoride(potassium),alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on.
Plastics and resin: AB,ABS emulsion,uric acid resin,phenolic aldehyde resin,urea-formaldehyde resin,formaldehyde resin,polythene,poly-chlotoprene and etc.
Food Industry: Fatty milk powder,protein,cocoa milk powder,substitute milk powder,egg white(yolk),food and plant,oats,chicken juice,coffee,instant dissoluble tea,seasoning meat,protein,soybean,peanut protein,hydrolysate and so forth.
Sugar, corn syrup, corn starch, glucose, pectin, malt sugar, sorbic acid potassium and etc.
Ceramic: aluminium oxide,ceramic tile material,magnesium oxide,talcum and so on.
In order to quote you the right drying machine equipment with best price, we would like to get the following information include in your inquiry:
-What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
-What is the capacity per hour you need (kg/h)?
-What is the initial moisture and final moisture of finished products you require to get?
-What about the maximum heat temperature of raw material?
-What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
-Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
-Provide us your country’s electricity information, such as phases, voltage, HZ?
-How about dust collect requirements?
-Other special requirements?
