500kg/H Large Scale Centrifugal Dry Powder Spray Drying Machine

Product Details

Place of Origin: China

Brand Name: Xin ShengMan

Certification: CE and ISO9001

Model Number: LPG

Payment & Shipping Terms

Minimum Order Quantity: 1Set

Price: USD10000-USD300000

Packaging Details: export

Delivery Time: 60-90days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10sets/Month

Get Best Price
Highlight:

Centrifugal Powder Spray Drying Machine

,

500kg/H Spray Drying Machine

,

500kg/H dry powder spray machine

Model:
Powder Spray Dryer
Certificate:
ISO9001 And CE
Service:
Engineers Available To Service Machinery Overseas
Heating Source:
Electrical, Oil, Coal, Steam
Steel Material:
Stainless Steel 304, 316
Control:
PLC Touch Screen
Voltage:
220V - 415V
Warranty:
12 Years
CIP System:
Optional
Input:
500kg/h
Application:
Industrial Drying
Model:
Powder Spray Dryer
Certificate:
ISO9001 And CE
Service:
Engineers Available To Service Machinery Overseas
Heating Source:
Electrical, Oil, Coal, Steam
Steel Material:
Stainless Steel 304, 316
Control:
PLC Touch Screen
Voltage:
220V - 415V
Warranty:
12 Years
CIP System:
Optional
Input:
500kg/h
Application:
Industrial Drying
500kg/H Large Scale Centrifugal Dry Powder Spray Drying Machine

500kg/H Large Scale High Speed Centrifugal Powder Spray Dryer For Industrial Drying





Description of Spray Dryer



1)The tower body is equipped with cool air jacket to reduce inside tower temperature and eliminate productpreheating and soften phenomenon.

2)The atomizer on top of tower is equipped with cooling device to reduce atomizer temperature, at the sameeffectively eliminate material return to the top in eddy current and avoid preheat coking phenomenon.

3)Tower body and pipeline is equipped with manual quick-open cleaning hole and drainage hole. CIP auto- matic cleaning device can also equipped if needed.

4)A automatic control constant temperature feeding tank can be equipped.

5)Manual high pressure washing tools can be offered as accessories together with spray dryer.

6)All product contact parts are made with Stainless Steel,(or whole parts with stainless steel)

7) Product collect way adopts two grade cyclones and water film duster.

8) Air inlet temperature is automatic and continuous control which is interlocked with feeding.

9)An air sweeping device can be optional for some products.

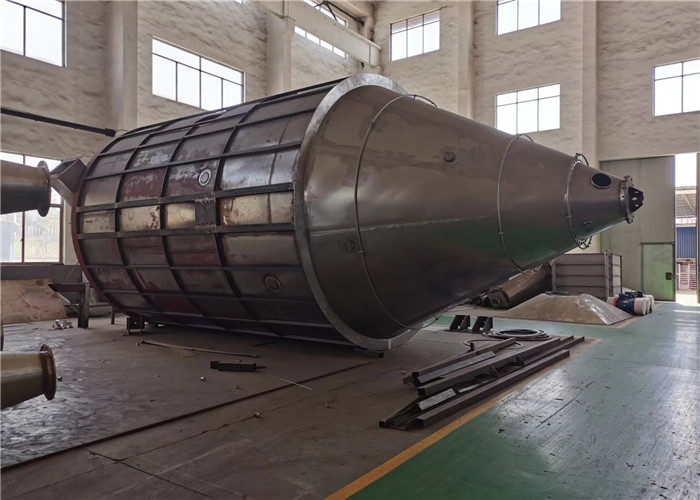

500kg/H Large Scale Centrifugal Dry  Powder Spray Drying Machine 0

Principle

After been filtered and heated the air enters into the air distrbutor on the top of the dryer.The hot air enters into the drying room in the spiral form and uniformly. Passing through the high-speed centrifugal sprayer on the top of the tower,the material liquid will rotate and be sprayed into the extremely fine mist liquid beads.Trough the very short time of contacting the heat air,the materials can be dried into the final products.The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.



500kg/H Large Scale Centrifugal Dry  Powder Spray Drying Machine 1



Features


1.compact structure, effective heat transfer area, small area

2.The mixing is uniform, high thermal efficiency, good drying effect

3.the blade shaft can mesh with each other, with self-cleaning effect, can prevent the material wall

4.Even of low energy consumption, small operating costs

5.small dust entrainment, less material loss

6.Indirect heating, no material pollution

7.The low rotation speed of liraglug impeller shaft, does not damage the product shape and properties

8.Therefore the device to operate flexible, smooth and reliable operation

500kg/H Large Scale Centrifugal Dry  Powder Spray Drying Machine 2





Centrifugal spray atomizer Features

1.The drying speed is high when the material liquid is atomized,the surface area of the material will increase greatly.In the hot-air flow,95%-98% of water can be evaporated at a moment.The time of completing the drying is only several seconds. This is especially suitable for drying the heat sensitive materials.


2. Its final products own the good uniformity, flow ability & solubility. And the final products are high in purity and good in quality.


3. The production procedures are simple and the operation and control are easy.The liquid with moisture contents of 40-60%(for special materials,the contents might be up to 90%).can be dried into the powder or particle products once a time. After the drying process, there is no need for smashing and sorting,so as to reduce the operation procedures in the production and to enhance the product purity.The product particle diameters,looseness and water contents can be adjusted through changing the operation condition within a certain range. It is very convenient to carry out control and managment.



500kg/H Large Scale Centrifugal Dry  Powder Spray Drying Machine 3



Technical parameters


Model PLG
5 25 50 100 150 200-2000
inlet temperatyre ℃ 140-350 automatically controlled
outlet temperatyre ℃ 80-90
Max water evaporation capacity  kg/h 5 25 50 100 150 200-2000
centrifugal spraying nozzle transmission mode    compressed air       transmission mechaical transmission
rotation speed (r.p.m) 25000 18000 18000 18000 15000 8000-15000
spraying desc diameter (mm)                50 100 120 140 150 180-340
max electric heating power  (kw)                 9 36 63 81 99 settled by customer
overall dimensions        1.8*0.93*2.2 3*2.7*4.26 3.7*3.2*5.1 4.6*4.2*6 5.5*4.5*7 depends on tryer
dried powder collection               ≥95 ≥95 ≥95 ≥95 ≥95 ≥95







Typical application:

Food: Amino acid, vitamin, egg powder, bone powder, flavouring, protein, milk powder, blood powder, soy sauce powder, coffee, tea powder, glucose, pentadiene carboxylic acid, pectin, flavours, vegetable juice, yeast, starch, etc.
Ceramic Alumina, zirconia, magnesium oxide, titania, pottery clay, china clay, all kinds of magnetic porcelain and metal-oxides,
etc
Chemical: Aluminium polychlorid, disperse dyes, reactive dyes, organic catalyzer, white carbon black, washing powder, zinc sulfate,
silica, sodium metasilicate, potassium fluoride, calcium carbonate, potassium sulfate, ingotganic catalyzer and all kinds of waste
liquid, etc



500kg/H Large Scale Centrifugal Dry  Powder Spray Drying Machine 4





FAQ



1. Can I use this spray drying machine to extract some raw materials?
Yes, in order to help you better, we suggest you provide the name of the raw material you want to process.
2. Can I use my own raw materials for extraction test?
Yes, of course. We can do extraction tests and send videos and test reports for your reference.
3. Do you have OEM service? Do you provide parts?
Yes, we will, as long as you provide us with your drawings and detailed requirements.
4. How can we visit your factory?
If you arrive in Shanghai, you can tell us your specific location. We will arrange a driver to pick you up.
5. How to transport equipmen?
We usually choose sea transportation. Laboratory models can be shipped by air according to customer requirements.
6. What is the voltage of the equipment?
The equipment voltage is 380V, if the user requires 220V, the specific can be customized according to the voltage standard of the country where your equipment is used.
7. what is your after-sales service?
We provide the English manual of the equipment manual. If you need, we will send an engineer to install and train workers.
