Chemical Sludge Paddle Drying Machine Hot Water Heating

Product Details

Place of Origin: CHANGZHOU

Brand Name: Xin Shengman

Certification: ISO9001 and CE

Model Number: sludge Dryer

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Price: USD1,5000-USD20,3000

Packaging Details: Plywood cases

Delivery Time: 30-60 days

Payment Terms: T/T

Supply Ability: 6sets/Month

Get Best Price
High Light:

Chemical Sludge Paddle Drying Machine

,

5000Kg/h Paddle Drying Machine

,

5000Kg/h sludge drying machine

Name:
Paddle Dryer
Power:
Customed
After-sales Service:
Engineers Available To Service Machinery Overseas
Warranty:
1 Year
Material:
SUS304, SUS304L, SUS316, SUS316L
Heating Method:
Hot Water/steam/oil
Capacity:
10-5000 Kg/h
Heating Source:
Steam, Electricity, Etc
Application:
Sludge Drying
Supplier:
Chinese Factory
Type:
Custom Type
Name:
Paddle Dryer
Power:
Customed
After-sales Service:
Engineers Available To Service Machinery Overseas
Warranty:
1 Year
Material:
SUS304, SUS304L, SUS316, SUS316L
Heating Method:
Hot Water/steam/oil
Capacity:
10-5000 Kg/h
Heating Source:
Steam, Electricity, Etc
Application:
Sludge Drying
Supplier:
Chinese Factory
Type:
Custom Type

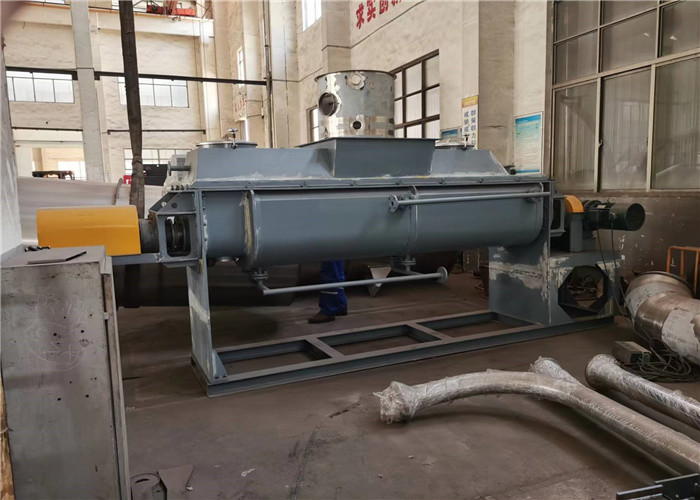

Chemical Sludge Paddle Drying Machine Hot Water Heating

Industrial Hollow Blade Paddle Drying Machine For Chemical Sludge





KJG Series Hollow Blade Dryer.



Densely lined with wedge-shaped hollow shaft hollow blades, heat medium through the hollow axial flow through blades. Unit effective volume of a very large area of heat transfer, heat medium temperature from -40℃ to 320 ℃, can be water ugh blades. Unit effect such as water, oil and so on Indirect conduction heating, the air does not carry away the heat. the heat are used to heat materials. Only through the device body heat loss to the environment. heat insulation layer Wedge-shaped blades with self-cleaning heat transfer surfaces.Wedge-shaped surface material particles and scrubbing effect relative movement, to wash away the wedge surface material attachments. so in operation have maintained a clean heat transfer surfaces. Blade dryer for the W-type shell, the shell of the general attachments for 2-4 hollow stirring shaft. Shell with a sealed cover with the cover to prevent dust leakage and collection of materials, solvent vapor materials. Set out and exit pull a block, to ensure a high degree of material level, so that heat transfer surface is covered with fully materials Heat medium through the rotary joint, passing through the shell jacket and the hollow stirring shaft, hollow shaft stirring according to the type ot thermal media have different internal structures to ensure the best heat transfer.

Chemical Sludge Paddle Drying Machine Hot Water Heating 0

Working Principle


KJG Series New Type Hollow Paddle Dryer for Industrial Sludge is a kind of conduction heating and low rotating speed-stirring type drier. There is jacket on the body of drier, hollow oar blade on the hollow shaft, filling heating medium in them, wet material is stirred by oar blade and carries on heat exchange with shaft and oar blade. The structure of the machine is generally horizontal type with two or four shafts.

Chemical Sludge Paddle Drying Machine Hot Water Heating 1

Chemical Sludge Paddle Drying Machine Hot Water Heating 2





Technical parameters



Model KJG-2.7 KJG-24 KJG-52 KJG-81 KJG-110
Heat transfer area 2.7 24 52 81 110
effective volume 0.06 1.53 3.96 6.43 9.46
revolution 15-30 10-20 10-20 5-15 5-10
power 2.2 11 30 55 95
width of dryer body 306 1118 1474 1828 2210
total width 736 1474 1854 2286 2668
length of dryer body 1956 3454 5258 6020 6122
total length 2972 6147 8306 9678 9880
distance between feeding and disharging 1752 3150 4954 5562 5664
height in center 380   1066 1220 1220
total height 762   2032 2464 2668
steam inlet (2) 3/4 (2) 1 (2) 11/2 (2) 11/2 (2) 2
water outlet (2) 3/4 (2) 1 (2) 11/2 (2) 11/2 (2) 2





Chemical Sludge Paddle Drying Machine Hot Water Heating 3





Applications



Petrochemical industry: polyolefin powder, polycarbonate resin, high and low-density polyethylene, linear low-density polyethylene, polyacetal granules, nylon 6, nylon 66, nylon 12, acetate, polyphenylene sulfide, propylene base resin, polypropylene, engineering plastics, polyvinyl chloride, polyvinyl alcohol, polystyrene, polyester, polyoxymethylene, styrene-acrylonitrile copolymerization, ethylene-propylene copolymerization.


Environmental protection industry: sludge, electroplating sewage sludge, boiler soot, sugar factory waste residue, pharmaceutical factory waste residue, MSG factory waste residue, coal ash.


Feed industry: soy sauce residue, bone-based feed, distiller's grains, food scraps, apple pomace, orange peel, soybean meal, chicken bone feed, fish meal, feed additives, bio-sludge.


Food industry: starch, cocoa beans, corn kernels, salt, modified starch, medicines.


Chemical industry: soda ash, NPK compound fertilizer, kaolin, bentonite, white carbon black, carbon black, phosphogypsum, calcium sulfate, calcium nitrate, magnesium carbonate, sodium cyanide, oxidized sodium fluoride, aluminum hydroxide, barium sulfate, calcium carbonate, molecular sieves, dyes, saponins.




Chemical Sludge Paddle Drying Machine Hot Water Heating 4

Features

1) Low energy consumption: As a result of indirect heating, no much air take away the heating, the outer wall has insulation layer, the heat efficiency can be up to 90%. For slurry, evaporating 1kg of water just need 1.2kg vapor.
2) cheap investment: it has huge effective heat transfer surface area per unit, reduce treatment time, let the machine size become small, so It greatly reduces the construction area and building space.
3) wide range of materials handling: can use different types of media, not only can treat heat-sensitive materials, but also handle high-temperature materials. Common medias are: water vapor, thermal oil, hot water, cooling water and so on.
4) flexible operation method: Can be continuous operation or intermittent operation, can be applied in many fields.
5) Low environmental pollution: don't use air to dry material, dust material entrainment is rare. Small solvent evaporation, easy to treat. For contaminated materials or solvent recovery conditions, closed-loop can be used.
6) Cheap operating costs: Low-speed mixing and reasonable structure, Low wear, low maintenance costs. For normal operation, just only 1 person / day.
7) Stable operation: Due to the special compression-expansion stirring of the wedge blades, the material particle contact with the heat transfer surface enough, it ensure the processing is stable.
