Product Details
Place of Origin: China
Brand Name: Xin ShengMan
Certification: CE and ISO9001
Model Number: Centrifugal spray dryer
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: USD10000-USD300000
Packaging Details: export
Delivery Time: 60-90days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10sets/Month
Type: |
Spray Drying Machine |
Certificate: |
ISO9001 And CE |
Service: |
Engineers Available To Service Machinery Overseas |
Heating Source: |
Electrical, Oil, Coal, Steam |
Power (Kw): |
Depend On The Model |
Steel Material: |
Stainless Steel 304, Carbon Steel |
Control: |
PLC Touch Screen |
Dimension (L*W*H): |
Depend On The Model |
Voltage: |
220V - 415V |
Warranty: |
12 Years |
CIP System: |
Optional |
Usage: |
Industrial Drying Machine |
Type: |
Spray Drying Machine |
Certificate: |
ISO9001 And CE |
Service: |
Engineers Available To Service Machinery Overseas |
Heating Source: |
Electrical, Oil, Coal, Steam |
Power (Kw): |
Depend On The Model |
Steel Material: |
Stainless Steel 304, Carbon Steel |
Control: |
PLC Touch Screen |
Dimension (L*W*H): |
Depend On The Model |
Voltage: |
220V - 415V |
Warranty: |
12 Years |
CIP System: |
Optional |
Usage: |
Industrial Drying Machine |

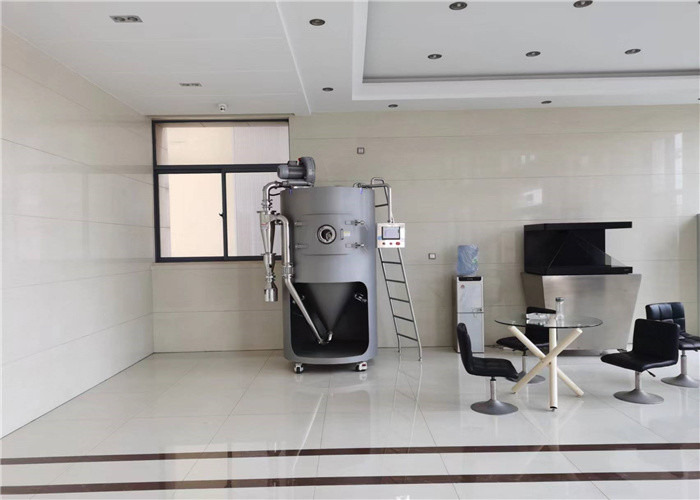

(High Hygiene Design, Top Quality, Energy Saving & Excellent Price) Spray Dryer Machine
A spray dryer is a machine that can complete drying and granulation at the same time. According to the process requirements, the pressure, flow rate, and size of the nozzle hole of the feed liquid pump, it can be adjusted to obtain the required spherical particles in a certain size ratio. As a type of continuous atmospheric dryer, the small spray dryer can spray the liquid material into a mist and make it contact with hot air thus being dried.
How does spray drying work? Here is the detail. After filtering and heating, the air enters the air distributor on the top of the dryer, and the hot air enters the drying chamber evenly in a spiral shape. The material liquid passes through the high-speed centrifugal atomizer at the top of the tower and is sprayed into very fine misty liquid beads, which can be dried into finished products in a very short time in co-current contact with hot air. The finished product is continuously output from the bottom of the drying tower and the cyclone separator, and the waste gas is evacuated by the induced draft fan.
Features
1.compact structure, effective heat transfer area, small area
2.The mixing is uniform, high thermal efficiency, good drying effect
3.the blade shaft can mesh with each other, with self-cleaning effect, can prevent the material wall
4.Even of low energy consumption, small operating costs
5.small dust entrainment, less material loss
6.Indirect heating, no material pollution
7.The low rotation speed of liraglug impeller shaft, does not damage the product shape and properties
8.Therefore the device to operate flexible, smooth and reliable operation
Centrifugal spray atomizer Features
1.The drying speed is high when the material liquid is atomized,the surface area of the material will increase greatly.In the hot-air flow,95%-98% of water can be evaporated at a moment.The time of completing the drying is only several seconds. This is especially suitable for drying the heat sensitive materials.
2. Its final products own the good uniformity, flow ability & solubility. And the final products are high in purity and good in quality.
3. The production procedures are simple and the operation and control are easy.The liquid with moisture contents of 40-60%(for special materials,the contents might be up to 90%).can be dried into the powder or particle products once a time. After the drying process, there is no need for smashing and sorting,so as to reduce the operation procedures in the production and to enhance the product purity.The product particle diameters,looseness and water contents can be adjusted through changing the operation condition within a certain range. It is very convenient to carry out control and managment.
Technical parameters
Model | PLG | |||||
5 | 25 | 50 | 100 | 150 | 200-2000 | |
inlet temperatyre ℃ | 140-350 automatically controlled | |||||
outlet temperatyre ℃ | 80-90 | |||||
Max water evaporation capacity kg/h | 5 | 25 | 50 | 100 | 150 | 200-2000 |
centrifugal spraying nozzle transmission mode | compressed air transmission | mechaical transmission | ||||
rotation speed (r.p.m) | 25000 | 18000 | 18000 | 18000 | 15000 | 8000-15000 |
spraying desc diameter (mm) | 50 | 100 | 120 | 140 | 150 | 180-340 |
max electric heating power (kw) | 9 | 36 | 63 | 81 | 99 | settled by customer |
overall dimensions | 1.8*0.93*2.2 | 3*2.7*4.26 | 3.7*3.2*5.1 | 4.6*4.2*6 | 5.5*4.5*7 | depends on tryer |
dried powder collection | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 |
FAQ
1. Can I use this spray drying machine to extract some raw materials?
Yes, in order to help you better, we suggest you provide the name of the raw material you want to process.
2. Can I use my own raw materials for extraction test?
Yes, of course. We can do extraction tests and send videos and test reports for your reference.
3. Do you have OEM service? Do you provide parts?
Yes, we will, as long as you provide us with your drawings and detailed requirements.
4. How can we visit your factory?
If you arrive in Shanghai, you can tell us your specific location. We will arrange a driver to pick you up.
5. How to transport equipmen?
We usually choose sea transportation. Laboratory models can be shipped by air according to customer requirements.
6. What is the voltage of the equipment?
The equipment voltage is 380V, if the user requires 220V, the specific can be customized according to the voltage standard of the country where your equipment is used.
7. what is your after-sales service?
We provide the English manual of the equipment manual. If you need, we will send an engineer to install and train workers.
