Product Details
Place of Origin: CHANGZHOU
Brand Name: Xin Shengman
Certification: ISO9001 and CE
Model Number: sludge Dryer
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Price: USD1,5000-USD20,3000
Packaging Details: Plywood cases
Delivery Time: 30-60 days
Payment Terms: T/T
Supply Ability: 6sets/Month
Name: |
Hollow Blade Screw Dryer |
Power: |
Customed |
After-sales Service: |
Engineers Available To Service Machinery Overseas |
Warranty: |
1 Year |
Material: |
SUS304, SUS304L, SUS316, SUS316L |
Heating Method: |
Hot Water/steam/oil |
Capacity: |
10-5000 Kg/h |
Heating Source: |
Steam, Electricity, Etc |
Application: |
Sludge Drying |
Supplier: |
Chinese Factory |
Requirement: |
Based On Customer |
Name: |
Hollow Blade Screw Dryer |
Power: |
Customed |
After-sales Service: |
Engineers Available To Service Machinery Overseas |
Warranty: |
1 Year |
Material: |
SUS304, SUS304L, SUS316, SUS316L |
Heating Method: |
Hot Water/steam/oil |
Capacity: |
10-5000 Kg/h |
Heating Source: |
Steam, Electricity, Etc |
Application: |
Sludge Drying |
Supplier: |
Chinese Factory |
Requirement: |
Based On Customer |

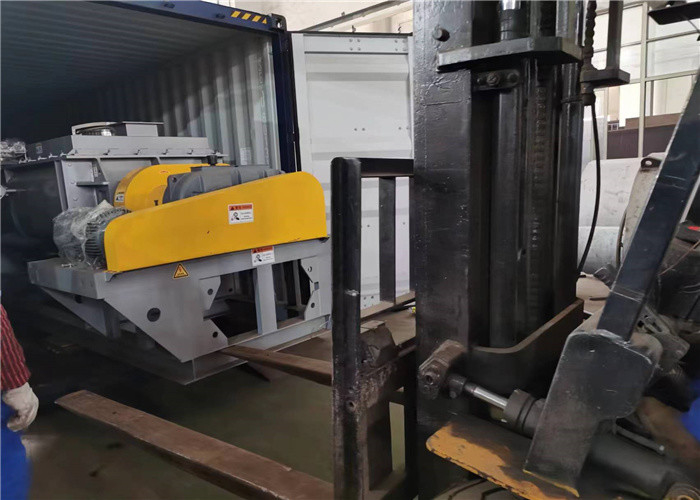

Municipal Sludge Waste Residue Customizable Hollow Blade Screw Dryer
Hollow Blade Dryer.
Hollow paddle dryer is widely used in activated sludge, sewage sludge, petrochemical sludge, paper sludge, printing and dyeing sludge, tannery sludge, electroplating sludge, municipal sewage sludge, oil sludge, chemical sludge , electro-ceramic sludge, river channel sediment silt, construction piling sludge, steel-making sludge, industrial metal pickling sludge, coal washing plant clean coal sludge, washed kaolin sludge, ceramics, marble polishing sludge, electronics factory line Sewage sludge, food plant activated sludge, mine beneficiation tailings, paper tailings/tail slag, leather/fur sludge, Chinese herbal medicine extract tailings, biological fermentation bacteria, and other high-humidity materials such as various sludges and various distiller’s grains .
KJG Series New Type Hollow Paddle Dryer for Industrial Sludge is a kind of conduction heating and low rotating speed-stirring type drier. There is jacket on the body of drier, hollow oar blade on the hollow shaft, filling heating medium in them, wet material is stirred by oar blade and carries on heat exchange with shaft and oar blade. The structure of the machine is generally horizontal type with two or four shafts.
Technical parameters
| Model | KJG-2.7 | KJG-24 | KJG-52 | KJG-81 | KJG-110 |
| Heat transfer area | 2.7 | 24 | 52 | 81 | 110 |
| effective volume | 0.06 | 1.53 | 3.96 | 6.43 | 9.46 |
| revolution | 15-30 | 10-20 | 10-20 | 5-15 | 5-10 |
| power | 2.2 | 11 | 30 | 55 | 95 |
| width of dryer body | 306 | 1118 | 1474 | 1828 | 2210 |
| total width | 736 | 1474 | 1854 | 2286 | 2668 |
| length of dryer body | 1956 | 3454 | 5258 | 6020 | 6122 |
| total length | 2972 | 6147 | 8306 | 9678 | 9880 |
| distance between feeding and disharging | 1752 | 3150 | 4954 | 5562 | 5664 |
| height in center | 380 | 1066 | 1220 | 1220 | |
| total height | 762 | 2032 | 2464 | 2668 | |
| steam inlet | (2) 3/4 | (2) 1 | (2) 11/2 | (2) 11/2 | (2) 2 |
| water outlet | (2) 3/4 | (2) 1 | (2) 11/2 | (2) 11/2 | (2) 2 |
Applications
Petrochemical industry: polyolefin powder, polycarbonate resin, high and low-density polyethylene, linear low-density polyethylene, polyacetal granules, nylon 6, nylon 66, nylon 12, acetate, polyphenylene sulfide, propylene base resin, polypropylene, engineering plastics, polyvinyl chloride, polyvinyl alcohol, polystyrene, polyester, polyoxymethylene, styrene-acrylonitrile copolymerization, ethylene-propylene copolymerization.
Environmental protection industry: sludge, electroplating sewage sludge, boiler soot, sugar factory waste residue, pharmaceutical factory waste residue, MSG factory waste residue, coal ash.
Feed industry: soy sauce residue, bone-based feed, distiller's grains, food scraps, apple pomace, orange peel, soybean meal, chicken bone feed, fish meal, feed additives, bio-sludge.
Food industry: starch, cocoa beans, corn kernels, salt, modified starch, medicines.
Chemical industry: soda ash, NPK compound fertilizer, kaolin, bentonite, white carbon black, carbon black, phosphogypsum, calcium sulfate, calcium nitrate, magnesium carbonate, sodium cyanide, oxidized sodium fluoride, aluminum hydroxide, barium sulfate, calcium carbonate, molecular sieves, dyes, saponins.
1) Low energy consumption: As a result of indirect heating, no much air take away the heating, the outer wall has insulation layer, the heat efficiency can be up to 90%. For slurry, evaporating 1kg of water just need 1.2kg vapor.
2) cheap investment: it has huge effective heat transfer surface area per unit, reduce treatment time, let the machine size become small, so It greatly reduces the construction area and building space.
3) wide range of materials handling: can use different types of media, not only can treat heat-sensitive materials, but also handle high-temperature materials. Common medias are: water vapor, thermal oil, hot water, cooling water and so on.
4) flexible operation method: Can be continuous operation or intermittent operation, can be applied in many fields.
5) Low environmental pollution: don't use air to dry material, dust material entrainment is rare. Small solvent evaporation, easy to treat. For contaminated materials or solvent recovery conditions, closed-loop can be used.
6) Cheap operating costs: Low-speed mixing and reasonable structure, Low wear, low maintenance costs. For normal operation, just only 1 person / day.
7) Stable operation: Due to the special compression-expansion stirring of the wedge blades, the material particle contact with the heat transfer surface enough, it ensure the processing is stable.
