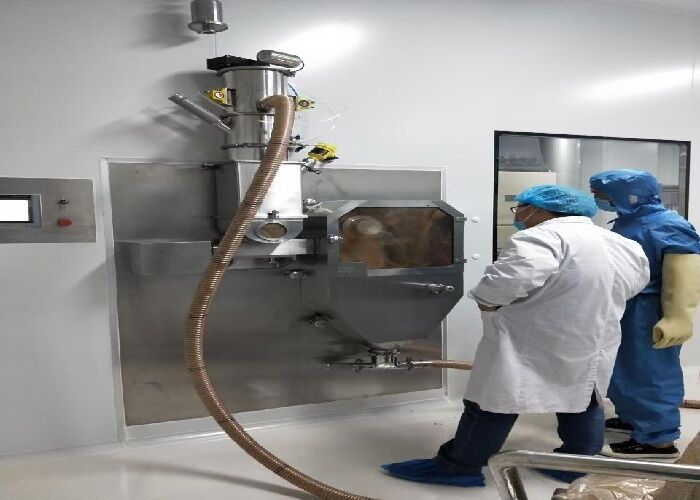

New Battery Materials Roller Compactor Dry Granulating Machine
New Battery Materials Roller Compactor Dry Granulating Machine
LG Roller Compactors are turnkey and suited for industrial, nutraceutical, and pharmaceutical dry granulation applications. This Roll Compactor features a desired twin feed screw design, with the capability to independently adjust feed rate & deaeration. Specifically, the HFS controls system throughput, while the VFS controls pre-compression of the material into the rolls. The twin feed screw design maintains lower system operating temperatures and is ideal for processing a wide range of materials. Additionally, it is proven to be exceptionally efficient with lighter bulk density powders containing large amounts of air.
The LG Roll Compaction Dry Granulator is fully equipped with a Roller Compactor, mill, screener, and elevator/conveyor. Our custom designed PLC control system can integrate with your up and downstream equipment and has the ability to communicate with your local DCS. Unit sizes are available for rates as low as 1.5 kgs/hr to 500 kgs/hr based on product density and product yield.
| Model |
LG100 |
LG100E |
LG160 |
LG200 |
LG240 |
LG360 |
|
Capacity
(kg/h)
|
1.5-15 |
12-40 |
50-150 |
100-240 |
160-320 |
360-720 |
|
Rated power
(kw)
|
3.47 |
3.53 |
7.24 |
11.37 |
15.94 |
32.55 |
| Roller size (D*W) |
100*25 |
100*40 |
160*50 |
200*75 |
240*100 |
360*150 |
For large production scale application, we provide double-supporting roller model
| Model |
LGS200 |
LGS240 |
LGS360 |
LGS500 |
|
Capacity
(kg/h)
|
200-400 |
300-640 |
1200-2000 |
1500-3000 |
|
Rated power
(kw)
|
|
|
|
|
| Roller size (D*W) |
|
|
|
|
Roller Compactor For Dry Granulation has the following features:
• In compliance with cGMP guidelines
• Contact parts are made of S.S 304 or S.S. 316 except rollers
• All covers are designed to obtain dust-free operation
• Feed screw is steplessly driven through variable frequency drive.
• Hard chome plated & mirror finished compacting rolls made of tools steel
• Pre-compaction chamber guides the product to rolls without any slippage or leakage.
• Electrical interlocking between main roll drive and feed screw drive
• Water Jacketing arrangement
• Hydraulic Power Pack system
• Inverter for rolls and milling device
• PLC system as per 21 CFR part 11 (optional)
Application of Roller compactor:
Dry Granulator is widely used in pharmaceutical industry, nutriceutical industry, food industry and chemical industry.
Pharmaceutical industry: Chinese medicine, western drugs, amoxicillin, cefalexin, etc.
Nutriceutical industry: Probiotics, lyophilized royal jelly powder, etc.
Food industry: Fruit powder, collagen powder, tea powder, etc.
Chemical industry: Magnesium oxide, antioxidants, pyrazole, etc.
Why Choose Us:
We are a leading Chinese manufacturer specializing in dry granulation equipment. With extensive experience in custom engineering solutions, we ensure that each machine meets your unique production requirements, improving efficiency and product quality.
Call-to-Action:
Contact us today to discuss your production needs and get a customized dry granulation solution!
