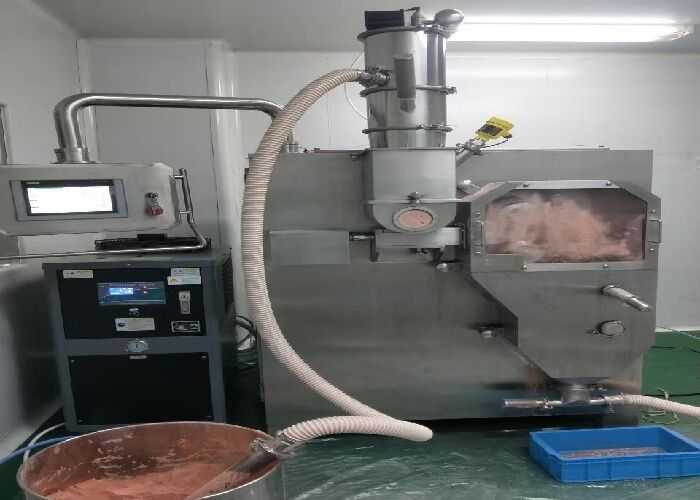

15kg/H-3000kg/H Vitamin Powder Dryer Granulator For Pharmaceutical
15kg/H-3000kg/H Vitamin Powder Dryer Granulator For Pharmaceutical
In case of low bulk densities, bad flowing properties and the risk of segregation of the mixture tablet pressing machines have problems to press high quality tablets which are required in the Pharmaceutical Industry. To press these mixtures a granulation technology is required to change the material behavior to god flowing, higher bulk density and reduce the tendency of segregation. Tablet pressing machines can typically operate with granules at higher speeds than with powders.
The cheapest way of granulation in case of high amount of active ingredient is dry granulation where on liquid binder is not necessary. So Roller Compactor For Dry Granulation is one of the most important drying granulation equipment in pharmaceutical industry and neutriceutical industry.
The pharmaceutical blend is fed into the feed hopper of the compactor where an auger is feeding the material into the nip of the rolls. Between the rolls the powder is pressed to so called flakes. In a subsequent Flake Crusher the flakes will be broken to granules. The typical granule size for filling capsules or pressing tablets varies to 20 to 80 mesh. Typical these processes requires machines which are easy to clean and guarantee a high quality of the produced granules. The quality of the granules needs to be validated.
| Model |
LG100 |
LG100E |
LG160 |
LG200 |
LG240 |
LG360 |
|
Capacity
(kg/h)
|
1.5-15 |
12-40 |
50-150 |
100-240 |
160-320 |
360-720 |
|
Rated power
(kw)
|
3.47 |
3.53 |
7.24 |
11.37 |
15.94 |
32.55 |
| Roller size (D*W) |
100*25 |
100*40 |
160*50 |
200*75 |
240*100 |
360*150 |
For large production scale application, we provide double-supporting roller model
| Model |
LGS200 |
LGS240 |
LGS360 |
LGS500 |
|
Capacity
(kg/h)
|
200-400 |
300-640 |
1200-2000 |
1500-3000 |
|
Rated power
(kw)
|
|
|
|
|
| Roller size (D*W) |
|
|
|
|
Roller Compactor For Dry Granulation has the following features:
• In compliance with cGMP guidelines
• Contact parts are made of S.S 304 or S.S. 316 except rollers
• All covers are designed to obtain dust-free operation
• Feed screw is steplessly driven through variable frequency drive.
• Hard chome plated & mirror finished compacting rolls made of tools steel
• Pre-compaction chamber guides the product to rolls without any slippage or leakage.
• Electrical interlocking between main roll drive and feed screw drive
• Water Jacketing arrangement
• Hydraulic Power Pack system
• Inverter for rolls and milling device
• PLC system as per 21 CFR part 11 (optional)
Application of Roller compactor:
Dry Granulator is widely used in pharmaceutical industry, nutriceutical industry, food industry and chemical industry.
Pharmaceutical industry: Chinese medicine, western drugs, amoxicillin, cefalexin, etc.
Nutriceutical industry: Probiotics, lyophilized royal jelly powder, etc.
Food industry: Fruit powder, collagen powder, tea powder, etc.
Chemical industry: Magnesium oxide, antioxidants, pyrazole, etc.
