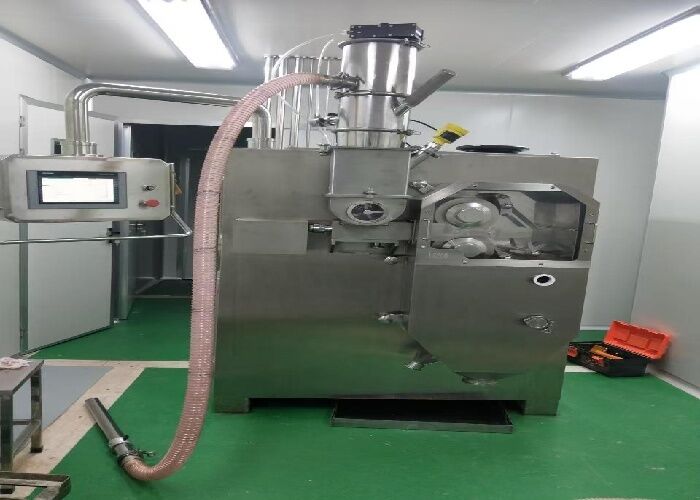

Carbon Nanotube Dry Granulating Machine For Battery Material With Factory Price

Product Details

Place of Origin: changzhou

Brand Name: Shengman

Certification: CE

Model Number: LG

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD30,000-300,000

Packaging Details: exporting package

Delivery Time: 30-90 days

Payment Terms: T/T

Supply Ability: 1-10sets/month

Get Best Price

Product Details

Product Description

Highlight:

Features:	No Waters And Solvents	Machine Type:	Dry Granulating Machine
Capacity:	Required By Customers	Pressure Range:	0~25Mpa
Supplier:	Chinese Factory	Control System:	PLC
Feeding Type:	Horizontal Feeding Type	Warranty:	One Year
Material:	SS304, 316L	Core Selling Point:	Famous Brand Plc
Applicable Industry:	Battery Material	Advantages:	Strict Process Requirements
Package:	Wooden Case Or Wooden Pallet

Features:	No Waters And Solvents
Machine Type:	Dry Granulating Machine
Capacity:	Required By Customers
Pressure Range:	0~25Mpa
Supplier:	Chinese Factory
Control System:	PLC
Feeding Type:	Horizontal Feeding Type
Warranty:	One Year
Material:	SS304, 316L
Core Selling Point:	Famous Brand Plc
Applicable Industry:	Battery Material
Advantages:	Strict Process Requirements
Package:	Wooden Case Or Wooden Pallet

Carbon Nanotube Dry Granulating Machine For Battery Material With Factory Price

Carbon Nanotube Dry Granulating Machine For Battery Material

The work principl of the Roller Compactor dry granulation machine is:

Roll Compaction involves feeding powder between two counter-rotating rolls, where it is pressed together to create a dense, compact ribbon which is then milled to achieve a uniform particle size.

By controlling the following parameters on the Roll Compactor it is possible to generate the ideal powder for your process needs:

Feed system design & speed

Roll dimensions – diameter & width

Roll speed, force & gap

Roll surface profile

Powder compact routing

Mill rotor design & velocity

Mill screen type & hole size

Model	LG100	LG100E	LG160	LG200	LG240	LG360
Capacity (kg/h)	1.5-15	12-40	50-150	100-240	160-320	360-720
Rated power (kw)	3.47	3.53	7.24	11.37	15.94	32.55
Roller size (D*W)	100*25	100*40	160*50	200*75	240*100	360*150

For large production scale application, we provide double-supporting roller model

Model	LGS200	LGS240	LGS360	LGS500
Capacity (kg/h)	200-400	300-640	1200-2000	1500-3000
Rated power (kw)
Roller size (D*W)

Roller Compactor For Dry Granulation has the following features:

• In compliance with cGMP guidelines
• Contact parts are made of S.S 304 or S.S. 316 except rollers
• All covers are designed to obtain dust-free operation
• Feed screw is steplessly driven through variable frequency drive.
• Hard chome plated & mirror finished compacting rolls made of tools steel
• Pre-compaction chamber guides the product to rolls without any slippage or leakage.
• Electrical interlocking between main roll drive and feed screw drive
• Water Jacketing arrangement
• Hydraulic Power Pack system
• Inverter for rolls and milling device
• PLC system as per 21 CFR part 11 (optional)

Application of Roller compactor:

Dry Granulator is widely used in pharmaceutical industry, nutriceutical industry, food industry and chemical industry.

Pharmaceutical industry: Chinese medicine, western drugs, amoxicillin, cefalexin, etc.

Nutriceutical industry: Probiotics, lyophilized royal jelly powder, etc.

Food industry: Fruit powder, collagen powder, tea powder, etc.

Chemical industry: Magnesium oxide, antioxidants, pyrazole, etc.

Why Choose Us:
We are a leading Chinese manufacturer specializing in dry granulation equipment. With extensive experience in custom engineering solutions, we ensure that each machine meets your unique production requirements, improving efficiency and product quality.

Call-to-Action:
Contact us today to discuss your production needs and get a customized dry granulation solution!
