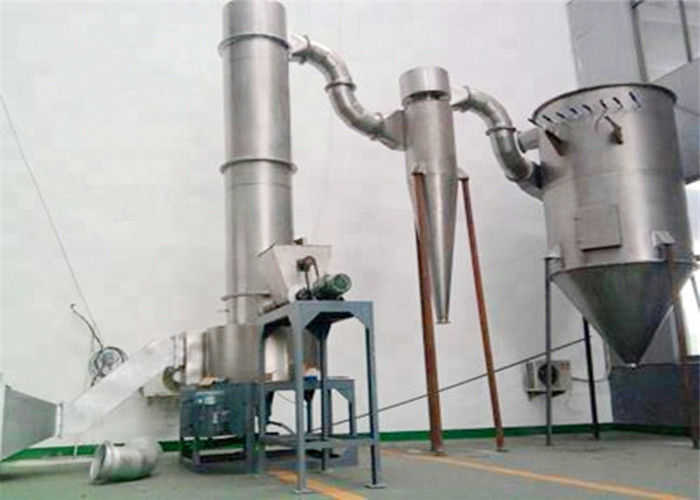

380V 10-20kg/H Small Biomass Dryer Pipe Drying Equipment Customized

Small pipe drying equipment for coffee grass chips powder high quality hot air wood sawdust biomass rotary flash Dryer

Product Description

Wet material is input into the hopper. The dryer is equipped with two fuel boilers,air inlet, steel pipe, exhaust blower (fan),air lock and cyclone. Wet materials are input into the hopper. The fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly. And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of dryer, thus wet materials is finished to dry, and the dried materials are discharged from the outlet with air lock.
This wood dryer can reduces the moisture to 8-12%.with the advantages of lower cost consumption and high efficiency.

Working principle

Hot air enters into drying chamber from the bottom of dryer with appropriate spouting speed. Raw material is crushed by dis-integrator and dried by hot air. After being crushed, raw material could have bigger surface area, bigger surface area of raw material and speed difference between raw material with hot air increase drying efficiency.

Technical parameters

Feature

1 There are several feeding systems available, we can get stable stable feeding without bridging phenomenon
2 There has cooling system on agitating part of dryer, avoiding over-heat of raw material.
3 Special designed gas sealing device and shaft cooling device to lengthen life span of driving system.
4 Special designed air distribution system, which could reduce air pressure drop, improve efficiency of hot air
5 There has classification ring in dryer chamber, size and final moisture content of product is adjustable.
6 It could increase bulk density of product compared with other drying equipments
7 There has high spiral air speed inside dryer, drying time is short, it could prevent wall-stick problem, and metamorphism of heat-sensitive material.
8 There has air blowing system, blowing air from bottom of dryer with 30-60m/s speed, it could prevent powder back to hot air pipe.
9 relatively low outlet air temperature, to improve drying efficiency.
10 Strong disintegrating system and spiral hot air could crush material, and obtain fine, uniform product.

After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.

Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.

2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.

3. Send every client a preferential quotation.
