Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: XSG
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Warranty: |
1 Year |
Material: |
Stainless Steel |
Type: |
Flash Dryer |
Water Evaporation: |
10-2000 |
Power: |
5-135kw |
Weight: |
Customized |
Capacity: |
5-500kg/h |
Voltage: |
220V/380V |
Barrel Diameter: |
200-1600mm |
Condition: |
New |
Warranty: |
1 Year |
Material: |
Stainless Steel |
Type: |
Flash Dryer |
Water Evaporation: |
10-2000 |
Power: |
5-135kw |
Weight: |
Customized |
Capacity: |
5-500kg/h |
Voltage: |
220V/380V |
Barrel Diameter: |
200-1600mm |
Vacuum Wood Dryer Price Cassava Starch Airflow Dryer Sawdust Drying Machine
Product Description

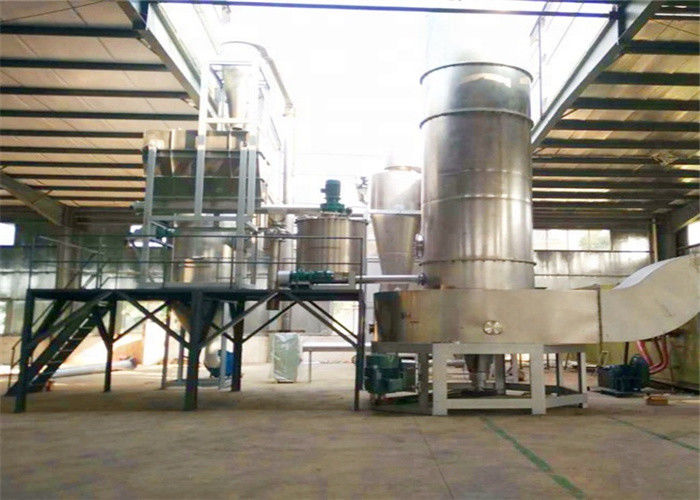

The hot airflow sawdust dryer is a hot air pulse dryer, also known as a hot air duct dryer. hot airflow sawdust dryer is widely used in food, feed, chemical, pharmaceutical, mining and other industries. The advantage of this dryer is direct heating, fast-drying, foldable installation and space-saving. The air dryer is used to mix the moist material with the high-temperature airflow, and finally separate the water from the raw material through the separator.
Working principle
Hot air enters into drying chamber from the bottom of dryer with appropriate spouting speed. Raw material is crushed by dis-integrator and dried by hot air. After being crushed, raw material could have bigger surface area, bigger surface area of raw material and speed difference between raw material with hot air increase drying efficiency.
Technical parameters
| type | Barrel diameter mm | main machine dimension mm | main machine power kw | treatment wind capacity m/h | water evaporation quantity kg/h |
| XSG-2 | 200 | 250*2800 | 5-9 | 300-800 | 10-20 |
| XSG-3 | 300 | 400*3300 | 8-15 | 600-1500 | 20-50 |
| XSG-5 | 500 | 600*4000 | 12-24 | 1500-4000 | 30-100 |
| XSG-6 | 600 | 700*4200 | 20-29 | 2500-5000 | 40-200 |
| XSG-8 | 800 | 900*4600 | 24-35 | 3000-8000 | 60-600 |
| XSG-10 | 1000 | 1100*5000 | 40-62 | 5000-12500 | 100-1000 |
| XSG-12 | 1200 | 1300*5200 | 50-89 | 10000-20000 | 150-1300 |
| XSG-14 | 1400 | 1500*5400 | 60-105 | 14000-27000 | 200-1600 |
| XSG-16 | 1600 | 1700*6000 | 70-135 | 18700-36000 | 250-2000 |
This machine is for drying sawdust powder or other straw powder. If the material's moisture is above 12%, the drying machine is needed to dry the moisture from 12% to 6%-8%. The productivity can be designed as the requirement from customers
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
