Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: DW
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Voltage: |
220v-450v |
Place Of Origin: |
Jiangsu China |
Warranty: |
1 Year |
Drying Strength: |
150-900kg/h |
Quantity Of Uni: |
4*3 -5*3 |
Length Of Drying: |
24m-30m |
Material: |
Stainless Steel, Carbon Steel |
Temperature: |
50-140℃ |
Power: |
35.3-72.5kw |
Condition: |
New |
Voltage: |
220v-450v |
Place Of Origin: |
Jiangsu China |
Warranty: |
1 Year |
Drying Strength: |
150-900kg/h |
Quantity Of Uni: |
4*3 -5*3 |
Length Of Drying: |
24m-30m |
Material: |
Stainless Steel, Carbon Steel |
Temperature: |
50-140℃ |
Power: |
35.3-72.5kw |

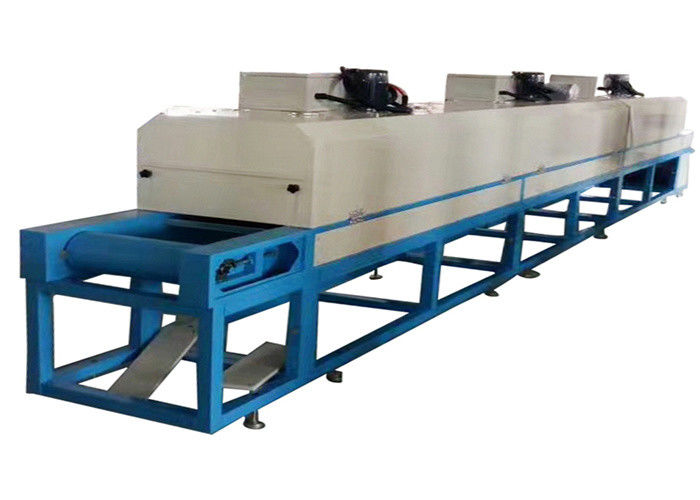

CE, ISO Approved Industrial conveyor mesh belt dryer for coffee bean cocoa
Product Description
The mesh belt dryer is a kind of batch, continuous production drying equpment, mainly for better ventilation sheet, strip, granular material, such as: cassava slice,kind of briquettes etc.
Features of latest techonology wood chips briquettes mesh belt dryer:
It has high efficiency, advanced techonology,high-yield high evaporation intensity, standardization of production
The capacity could be increased according to the segments.
Advantage
1. Reasonable structure, convenient installation, smooth operation, simple use and long service life;
2. Unique sealing device makes the distribution of hot air more uniform and ensures the consistency of product quality;
3. Can adjust air volume, heating temperature, material residence time and feeding speed to achieve the best drying effect;
4. Most air is recycled and highly energy efficient
Technical parameters
| spec | unit | DW3-1.2-8 | DW3-1.2-10 | DW3-1.6-8 | DW3-1.6-10 | DW3-2-8 | DW3-2-12 |
| unit number | 4*3 | 5*3 | 4*3 | 5*3 | 4*3 | 5*3 | |
| drying length | m | 24 | 30 | 24 | 30 | 24 | |
| thickness of material | mm | 10-80 | |||||
| temperature | ℃ | 60-130 | |||||
| steam pressure | Mpa | 0.2-0.8 | |||||
| steam consumption | kg | 360-1350 | |||||
| drying strength | kg/h | 150-900 | |||||
| power | kw | 35.3 | 41.9 | 46.5 | 55.5 | 60.5 | 72.5 |
Remark:
1. Parameters above in the table are regular model for reference;
2. We could make special model / size according to the customer's actual situation or requirement, please contact sales team to konw more details about vegetable dryer.
Application
Widely used in metallurgy, building materials, ceramics, organic fertilizer, chemical and other industries, and the ideal equipment for food and vegetables drying processing.Multilayer belt type hot air dryer is used of steel net work as a transport carrier material for continuous drying equipment, the most suitable for flow operation.Due to the conveyor is a mesh, so drying rules or irregular various substance is the most appropriate.This machine not only can be used with other equipment,but also used alone.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
