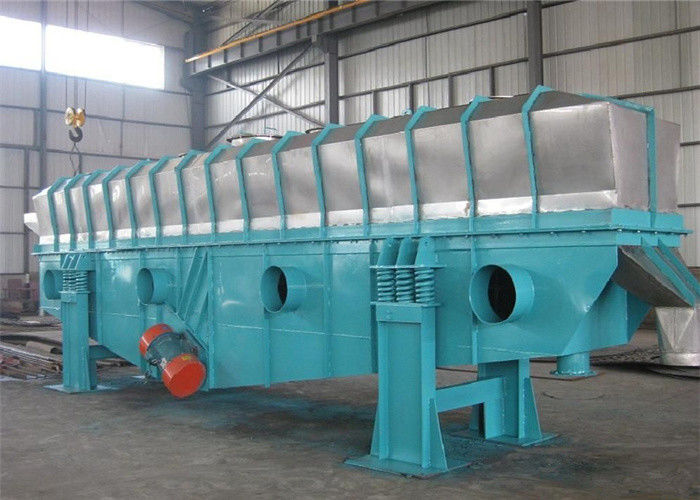

420kg/h Industrial Fluid Bed Dryer For Monosodium Glutamate One Year Warranty
Customized Vibrating Fluid Bed Dehydrator for Monosodium Glutamate with one year warranty
Introduction
Vibration fluid bed dryer is a continuous drying equipment for non-sticky particles. Its working principle is: cold air is filtered through the filter, and then goes into the heater, and is heated to a certain temperature, then hot air is distributed into the lower bed via multiple inlets and flows up through perforated plate of the bed. Material goes evenly into the bed through screw feeder, under the action of the vibration force, the material moves up forward continuously along the horizontal direction, while undergoes heat exchange with the hot air coming up from bottom, the moisture of material is evaporated rapidly, and the wet air is discharged from the exhaust fan, and the material is fully dried and discharged from the discharge port.
The material has been feed into the fluid bed dryer, under the dual function of the vibration and air flow, the material move along the fluid bed as throwing forward continuously. Hot air upward through the fluid bed and wet materials from the heat after the exchange, after the cyclone dust emissions from dry materials from discharging from the discharging end.
Features
1. Adopts new type quick-open structure for upper bed and bottom bed. Upper bed can be moved easily. So it is very convenient to clean and wash the drying system.
2. Bed plate adopts laser punching, it can avoid the deformation in common punching process effectively.
3. Bottom bed adopts stainless steel seamless tube for supporting, the structure of bed is more stronger and make the life of equipment longer.
Material is heated uniformly, heat exchanging is full and drying intensity is high. Energy can be saved about 30%.
4. Vibration source is vibrating motor. It features constant operation, convenient maintenance, low noise and long life.
Fluid state is stable, there is no phenomenon of gap or blowing out.
5. There is less damage to the surface of material. It can be used for drying material that is easy to broken. The work efficiency is not affected even if the granule of material is irregular.
6. Adopts full sealed structure. It effectively avoids cross infection between and air, the operation environment is clean.
3. Technical parameters
| MODEL |
area of fludized -bed |
temperature of inlet air |
temperature of outlet air |
capacity to vapor moisture |
vibration motor |
| |
㎡ |
℃ |
℃ |
kg/h |
model |
power kw |
| ZLG3*0.3 |
0.9 |
70-140 |
40-70 |
20-35 |
YZS8-6 |
0.75*2 |
| ZLG0.45*0.6 |
2.7 |
|
|
70-90 |
YZS15-6 |
1.1*2 |
| ZLG6*0.45 |
2.7 |
|
|
80-100 |
YZS15-6 |
1.1*2 |
| ZLG6*0.6 |
3.6 |
|
|
100-130 |
YZS20-6 |
1.5*2 |
| ZLG6*0.9 |
5.4 |
|
|
140-170 |
YZS30-6 |
2.2*2 |
| ZLG7.5*0.6 |
4.5 |
|
|
130-150 |
YZS30-6 |
2.2*2 |
| ZLG7.5*1.5 |
11.25 |
|
|
230-330 |
YZS50-6 |
3.7*2 |
| ZLG8*1.8 |
14.4 |
|
|
290-420 |
YZS75-6 |
5.5*2 |
Remark:
1. Parameters above in the table are regular model for reference;
2. We could make special model / size according to the customer's actual situation or requirement, please contact sales team to konw more details about vegetable dryer.
Applications
I> Inorganic: borax, boric acid, glass fibers, ammonium hydrogen fluoride, potassium permanganate, sodium perborate, ammonium thiocyanate, sodium thiocyanate, cobalt sulfate, nickel sulfate, zinc sulfate heptahydrate, ammonium chloride, calcium, strontium chloride, sodium chlorate, strontium, copper sulfate pentahydrate, sodium chlorite, sodium sulfite, ammonium nitrate, calcium nitrate, sodium nitrate, potassium bromide, sodium bromide, sodium sulfate, sodium salt
II> Organics: oxalic acid, succinic acid, hydroquinone, p-nitrobenzoic acid, fumaric acid, pentaerythritol, resorcinol, catechol, calcium hypochlorite, sodium silicate, GDL, sodium gluconate, thiourea, sorbitol, dicyandiamide, iminodiacetonitrile, itaconic acid
III> Fertilizer: potassium dihydrogen phosphate, calcium hydrogen phosphate, monoammonium phosphate, ammonium sulfate, magnesium sulfate heptahydrate
IV> Pesticides: Imidacloprid granules, granules glyphosate
V> Polymer: High-absorbent resin, a polystyrene resin, sodium polyacrylate
VI> Chemicals: washing powder
VII> Chemical additives: methyl cellulose, polyacrylamide, hydroxyethyl cellulose
♦ Food and beverage industry:L-arabinose, acesulfame, erythritol, trehalose, caramel, tartaric acid, coffee, bread crumbs, milk powder, citric acid, potassium citrate, sodium citrate , maltitol, xylose, xylitol, Ru refined, sugar, potassium sorbate, salt, sodium saccharin, monosodium glutamate, sodium iso-VC,
♦ Pharmaceutical medical industry:honeysuckle, taurine, vitamin C
♦ Animal husbandry and fishery industry:canola ,seeds
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
