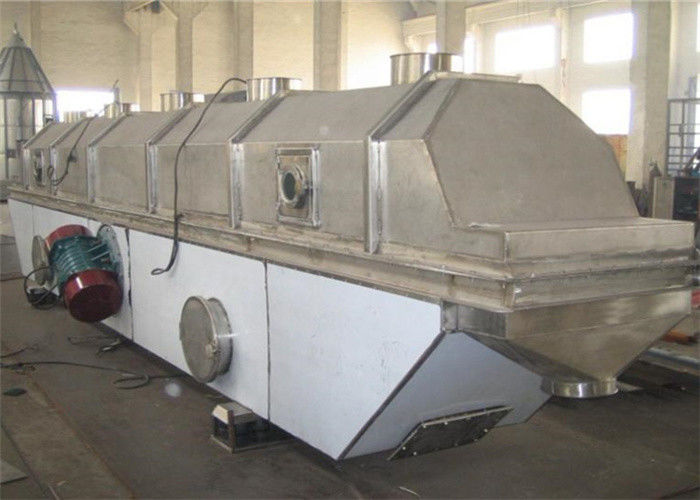

0.9-14.4m2 Vibro Fluidized Bed Dryer Glassfiber Desiccated Coconut Dryer Machine

High quality Efficiency Glass Fiber Desiccated Coconut Vibrating Fluid Fluidized bed Drying Machine

Introduction & working principle

CD series of vibration fluid bed dryer is a continuous drying equipment for non-sticky particles. Its working principle is: cold air is filtered through the filter, and then goes into the heater, and is heated to a certain temperature, then hot air is distributed into the lower bed via multiple inlets and flows up through perforated plate of the bed. Material goes evenly into the bed through feeding conveyor and feeder, under the action of the vibration force, the material moves up forward continuously along the horizontal direction, while undergoes heat exchange with the hot air coming up from bottom, the moisture of material is evaporated rapidly, and the wet air is discharged from the exhaust fan, and the material is fully dried and discharged from the discharge port.

Features

1. Adopts new type quick-open structure for upper bed and bottom bed. Upper bed can be moved easily. So it is very convenient to clean and wash the drying system.
2. Bed plate adopts laser punching, it can avoid the deformation in common punching process effectively.
3. Bottom bed adopts stainless steel seamless tube for supporting, the structure of bed is more stronger and make the life of equipment longer.
Material is heated uniformly, heat exchanging is full and drying intensity is high. Energy can be saved about 30%.
4. Vibration source is vibrating motor. It features constant operation, convenient maintenance, low noise and long life.
Fluid state is stable, there is no phenomenon of gap or blowing out.
5. There is less damage to the surface of material. It can be used for drying material that is easy to broken. The work efficiency is not affected even if the granule of material is irregular.
6. Adopts full sealed structure. It effectively avoids cross infection between and air, the operation environment is clean.

3. Technical parameters

Remark:

1. Parameters above in the table are regular model for reference;

2. We could make special model / size according to the customer's actual situation or requirement, please contact sales team to konw more details about vegetable dryer.

Applications

♦ Food and beverage industry:L-arabinose, acesulfame, erythritol, trehalose, caramel, tartaric acid, coffee, bread crumbs, milk powder, citric acid, potassium citrate, sodium citrate , maltitol, xylose, xylitol, Ru refined, sugar, potassium sorbate, salt, sodium saccharin, monosodium glutamate, sodium iso-VC,

♦ Pharmaceutical medical industry:honeysuckle, taurine, vitamin C

♦ Animal husbandry and fishery industry:canola ,seeds

Please contact me for double confirm if you not sure this type dryer suitable for your products

After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.

Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.

2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.

3. Send every client a preferential quotation.
