Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: zs
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Grinder |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
Power: |
4-15kw |
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Grinder |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
Power: |
4-15kw |

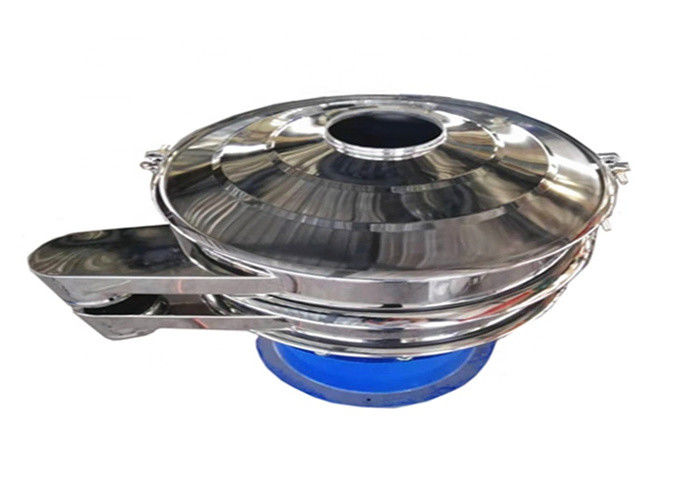

Stainless Steel Electric Sieving Pellet Powder Industrial Rotating Circular Rotary Vibrating Screen Sieve Price
Rotary vibrating screen use upright motor as the source of vibration, equipped eccentricity hammer on the both sides of motor, change circumrotate to level, upright and incline movement, then pass these three movement to the surface of the screen. Adjust the phase angle on the both sides of the top and bottom to change the movement orbits of the surface screen.
Rotary vibrating screen is a high precision screening machine.is designed for accurate grading or sizing of wet and dry materials up to six fractions in one operation Used to sieve granule, powder, and liquid
Technical Parameters
| MODEL | Production capacity (kg/h) | mesh | power of motor (kw) | revolution of main shaft (r/min) | overall dimension (mm) | net weight (kg) |
| ZS-350 | 60-500 | 12-200 | 0.55 | 1380 | 540*540*1060 | 100 |
| ZS-515 | 100-1300 | 12-200 | 0.75 | 1370 | 710*710*1290 | 180 |
| ZS-650 | 180-2000 | 12-200 | 1.5 | 1370 | 880*880*1350 | 250 |
| ZS-800 | 250-3500 | 5-325 | 1.5 | 1500 | 900*900*1200 | 300 |
Note: because the raw material exist in difference, the output in the table is for reference only
Technical advantages
1. High efficiency, refined design,duration,any powers and mucilage are suitable for using.
2. Easily replace the screen, simple operation and convenience washing.
3. Never jam the mesh with no power flying and filter size of the power between 500 mesh or 0.028mm.
4. Discharge the impurity and coarse materials automobile and operates continuously.
5. Small volume, move easily.
6. The highest layers of the screen are 5 layers. But 3 layers are suggested
Applications
1)Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder
2)Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce, syrup
3)Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder
4)Medicinal industry: all kinds of medicine
5)Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon
Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.
Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
Jiangsu Shengman Drying Equipment Engineering Co.,Ltd, established in 2011, known as a local leading high-tech enterprise, is located in Zhenglu town, Changzhou, Jiangsu, China. Shengman is a large-scale production enterprise in China drying industry with a registered capital of 35,000,000 RMB, specialized in designing &manufacturing various kinds of dryers, granulators, mixers, grinders ,dust removers, etc. Shengman owns an area of over 200,000㎡, and realizes annual sales of over 70,000,000RMB for consecutive years. Shengman has passed European Union CE authentication, ISO 9001 quality management system certification and got good bank credit for AAA. Now Shengman has been one of the largest drying equipment production enterprises in East China and keeping leading the drying industry’s development.
