Home > PRODUCTS > Industrial Grinding Machine > GMP Standard 100-300kg/h Industrial Grinding Machine Pepper Salt Pulverizer B-30

GMP Standard 100-300kg/h Industrial Grinding Machine Pepper Salt Pulverizer B-30

Product Details

Place of Origin: China

Brand Name: JingSu ShengMan

Certification: CE and ISO9001

Model Number: B series

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD20000-USD300000

Packaging Details: Plywood Cases

Delivery Time: 60-90days

Payment Terms: L/C, T/T

Supply Ability: 10sets

Get Best Price
High Light:

300kg/H Industrial Grinding Machine

,

300kg/H Salt Pulverizer

,

GMP Standard Industrial Grinding Machine

Condition:
New
Warranty:
1 Year
Voltage:
Customized
Machine Type:
Grinder
Heating System:
Steam,Electronic,oil
Standard:
GMP
Material:
Stainless Steel
Dimension:
Requirement From Customer
Application:
Pharmaceutical, Food, Chemical
Power:
4-15kw
Condition:
New
Warranty:
1 Year
Voltage:
Customized
Machine Type:
Grinder
Heating System:
Steam,Electronic,oil
Standard:
GMP
Material:
Stainless Steel
Dimension:
Requirement From Customer
Application:
Pharmaceutical, Food, Chemical
Power:
4-15kw
GMP Standard 100-300kg/h Industrial Grinding Machine Pepper Salt Pulverizer B-30

B-30 Universal Salt/Pepper/Rice Grinder Machine and Coffee Grinder Machine pulverizer for food





Introduction

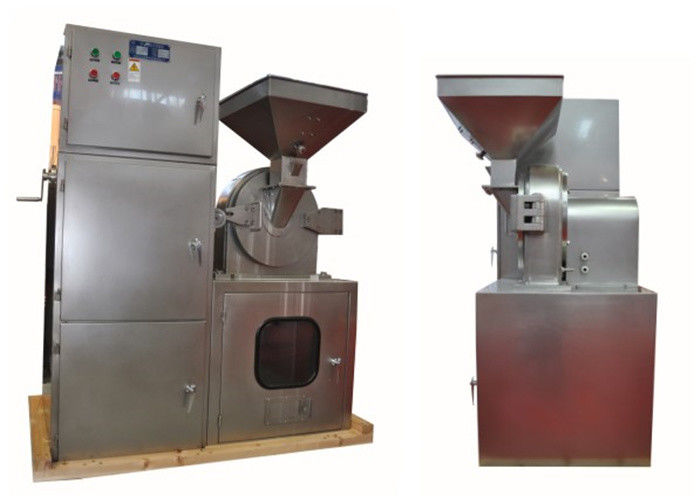

grinder set consists of Model 30B grinder, EXC collector of raw material and ESC collective duster. It solves the problem, i.e. the dust is flying during the period of crushing raw material.
The principle of work is as follows: after raw material is fed into the crushing chamber, it undertakes the comprehensive actions such as impacted by teeth, shearing force, friction force, impacted between raw materials, finally the raw materials are crushed. Through sieving. The needed powder can be got.
The grinder, collector, of raw material and ESC collective duster are all made of stainless steel and are in conformity with the requirements of GMP





GMP Standard 100-300kg/h  Industrial Grinding Machine Pepper Salt Pulverizer B-30 0


Technical Parameters

Model
20B
30B
40B
60B
80B
Production capacity(kg/h)
20-150
100-300
150-800
500-1500
800-3500
Main speed(r/min)
4500
3800
3600
2800
2200
Feed size(mm)
6
10
12
15
15
Crush size(mm)
10-150
10-120
10-120
10-120
10-120
Power(kw)
4
5.5
11
18.5
30
Weight(kg)
250
320
420
600
800
Dimensions L*W*H(mm)
550*600*1250
600*700*1450
945*800*1730
1000*900*1680
1250*1100*2280


Note: because the raw material exist in difference, the output in the table is for reference only



GMP Standard 100-300kg/h  Industrial Grinding Machine Pepper Salt Pulverizer B-30 1





Technical advantages



This machine use high speed of operation activities fluted disc and fixed fluted disc of relative motion between, shattered by the tooth things impact, shear and friction and material each other collision comprehensive effect to achieve the purpose of grinding material. This machine has simple structure, smooth operation, low noise, crushing effect is good. After crushing material directly from the crushing chamber discharge. The particle size, but through the selection of different aperture screen to achieve.




Applications

The machine (set) is widely used for the fragile materials in pharmaceutical, chemical, foodstuff, and pesticide industries.



GMP Standard 100-300kg/h  Industrial Grinding Machine Pepper Salt Pulverizer B-30 2








Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.

Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (
2). Delivery on time. (3). Provide full set of documents as customer’s requirements.



After-sale service:
Provide considerate services to minimize clients’ worries.

1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.



Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.

2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.

3. Send every client a preferential quotation.



GMP Standard 100-300kg/h  Industrial Grinding Machine Pepper Salt Pulverizer B-30 3

GMP Standard 100-300kg/h  Industrial Grinding Machine Pepper Salt Pulverizer B-30 4





Jiangsu Shengman Drying Equipment Engineering Co.,Ltd, established in 2011, known as a local leading high-tech enterprise, is located in Zhenglu town, Changzhou, Jiangsu, China. Shengman is a large-scale production enterprise in China drying industry with a registered capital of 35,000,000 RMB, specialized in designing &manufacturing various kinds of dryers, granulators, mixers, grinders ,dust removers, etc. Shengman owns an area of over 200,000㎡, and realizes annual sales of over 70,000,000RMB for consecutive years. Shengman has passed European Union CE authentication, ISO 9001 quality management system certification and got good bank credit for AAA. Now Shengman has been one of the largest drying equipment production enterprises in East China and keeping leading the drying industry’s development.
