Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: JRF
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Furnace |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
Hot Air Temperature: |
10-620℃ |
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Furnace |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
Hot Air Temperature: |
10-620℃ |

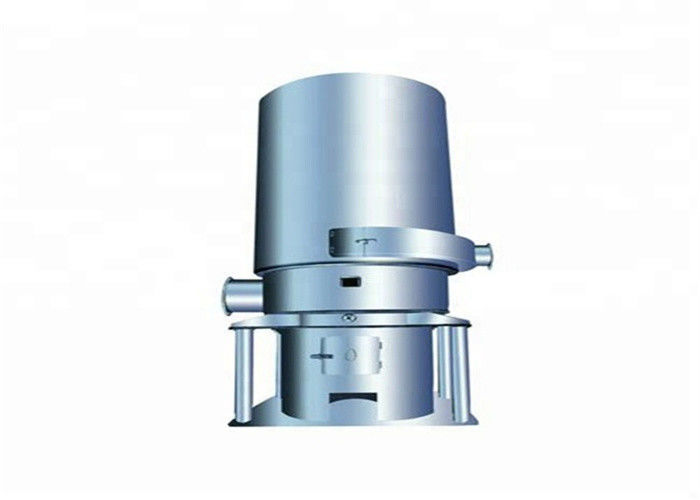

JRF Model Industrial Coal Combustion Hot Air Furnace for Grain/Coal Combustion Hot Air Furnace
Working Principle
The furnace combines the combustion with the heat exchange, using the latest indirect heating technology that the heat exchange is taken place at the position of the high temperature in the furnace. The smoke and the air go into the dierent channels, without any pollution for the heating. The heat ef‑ciency rate is high (up to 60-75%).The temperature increase is fast. The furnace is small in s ize, easy in the installation, reliable in the operation and low in the price(making a comparison with one ton boile r, the price of this system is only half price of the heating system for the boiler).
Technical Parameters
| NameSpec | JRF-15 | JRF-20 | JRF-30 | JRF-40 | JRF-60 | JRF-80 | JRF-100 |
| Diametral of interior barrel | 760 | 760 | 1170 | 1170 | 1470 | 1670 | 1870 |
| Diametral of exterior barrel | 1280 | 1280 | 1840 | 1840 | 2200 | 2460 | 2700 |
| Total height | 3500 | 3500 | 4260 | 4760 | 4810 | 5110 | 5310 |
| Total weight of equipment | 3.15T | 3.65T | 6.8T | 7.5T | 9.8T | 11.7T | 13.5T |
| Diameter of hot air outlet opening | 300 | 300 | 500 | 500 | 500 | 600 | 600 |
| Height of hot air outlet opening | 1585 | 1585 | 1670 | 1670 | 1670 | 1770 | 1770 |
| Diameter of flue outlet opening | 250 | 250 | 250 | 250 | 250 | 300 | 320 |
| Height of flue outlet opening | 2050 | 2050 | 2220 | 2220 | 2220 | 2385 | 2385 |
| Specification of angle head | XZD/G 578 | XZD/G 810 | |||||
| coal consumption per hour | 43kg | 57kg | 85kg | 115kg | 170kg | 230kg | 286kg |
| combustion value of coal | 5000kcal/h | ||||||
| Heat efficiency | 70-78% | 75-80% | |||||
| Suction fan flue | Y5-47-3.15C -1.5KW |
Y5-47-4C -2.2KW |
Y5-47-4C -3KW |
Y5-47-4C -4KW |
Y5-47-5C -7.5KW |
Y5-47-5C -7.5KW |
|
Note: because the raw material exist in difference, the output in the table is for reference only
Characteristics
The furnace uses the high temperature resistant method so that its life is much longer than the life of the pipe arrangement hot a ir furnace. The furnace uses the smoke and air longitudinal splashing heat radiation sheets and the negative pressures smoke elimination mode. There is no dust collected on the heat exchange position. There is no need to carry out the cleaning. The heat feature is stable. V arious coal and wood can be used as the fuel. The furnace is equipped with the air leading device and the combustion is complete. All the technical and economic indexes of the furnace have reached the advanced level at home.
Material to be dried
The furnace is the versatile hot air equipment. It is used with other equipment for drying various materials. The furnace is widely used for the heating and moisture removing for the grain, s eed,feed, fruit, de-watering vegetable. mushroom, edible fungus, tremella, tea, tobacco leaf, other farming products, food, medicine, chemical raw material ,light and heavy industry products.
Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.
Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
