Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: ZSL
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Furnace |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
Hot Air Temperature: |
10-620℃ |
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Furnace |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
Hot Air Temperature: |
10-620℃ |

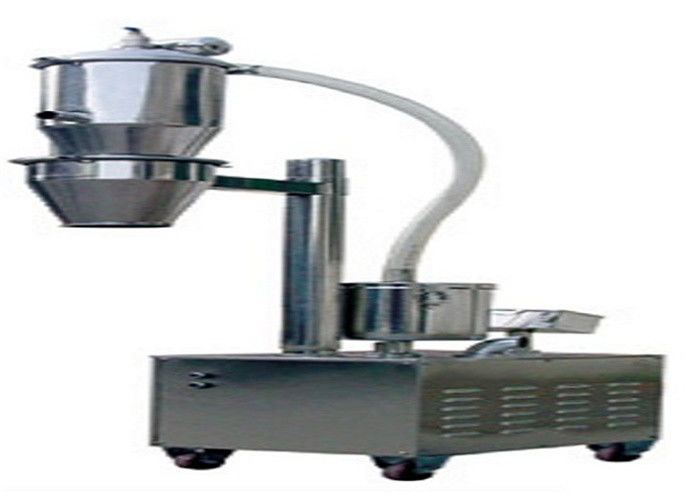

ZSL III Serial Vacuum Feeder
vacuum feeder
Air drive vacuum feeder use the air compress air through the vacuum maker get the pure vacuum to transfer the material .the mechanical vacuum pump is no need. The machinery structure is simple. cubage is small
,avoid repair ,low noise. control is convenient ,clear up the material static and cover the GMP standard.
Vacuum maker get the pure vacuum .make the transfer material avoid the separate layer .guarantee the material is homogeneous. so this machine is first choice to tablet press ,capsule filling machine. dry granulator
,packing machine. Pulverizer ,shrinking screen etc.
When the compress air supply to the vacuum maker. it produce the negative pressure come into being the
Vacuum airflow .the material be absorbed inbreathe the material jaws. Form air flow ,through the inbreathe
Material jaws to the material storehouse of the material feeder. The filter separate the material and air. When the material storehouse is full ,the controller shut power. The vacuum stop working .same time the
The gate of material storehouse open .the material fall into the feeder of the relate machine. then the
Compress air through the pulse clean the filter. Waiting for the time coming or the get the signal from
The material level sensor ,the feeder restart .
Remark: Machine will be designed according to customer's detail requirements. Please contact with us for choose.
Technical Parameters
| Mode Parameters |
ZSL-Ⅲ-2.2 | ZSL-Ⅲ-3.0 | ZSL-Ⅲ-4.0 | ZSL-Ⅲ-5.5 | ZSL-Ⅲ-7.5 |
| working Pressure(kpa) | <18 | <20 | <22 | <28 | <31 |
| Air volume(m3/h) | 210 | 300 | 330 | 370 | 480 |
| Power(kw) | 2.2 | 3.0 | 4.0 | 5.5 | 7.5 |
| Traffic capacity(Kg/h) | 900-1200 | 1200-1500 | 1500-1800 | 1800-2100 | 2100-2400 |
Note: because the raw material exist in difference, the output in the table is for reference only
Application:
This equipment main function are heating and removing damp. It is widely applied in agricultural, medical and chemical industry, such as grain, seeds, feedstuff, fruits, dehydrated vegetable, mushroom, agaric, white fungus, tea, tobacco leaf, foodstuff, medicines, chemical raw materials.
Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.
Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
Jiangsu Shengman Drying Equipment Engineering Co.,Ltd, established in 2011, known as a local leading high-tech enterprise, is located in Zhenglu town, Changzhou, Jiangsu, China. Shengman is a large-scale production enterprise in China drying industry with a registered capital of 35,000,000 RMB, specialized in designing &manufacturing various kinds of dryers, granulators, mixers, grinders ,dust removers, etc. Shengman owns an area of over 200,000㎡, and realizes annual sales of over 70,000,000RMB for consecutive years. Shengman has passed European Union CE authentication, ISO 9001 quality management system certification and got good bank credit for AAA. Now Shengman has been one of the largest drying equipment production enterprises in East China and keeping leading the drying industry’s development.
