ISO9001 10-620degree electric Oil Fired Hot Air Furnace For Industrial Chemicals

Product Details

Place of Origin: China

Brand Name: JingSu ShengMan

Certification: CE and ISO9001

Model Number: RLY

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD20000-USD300000

Packaging Details: Plywood Cases

Delivery Time: 60-90days

Payment Terms: L/C, T/T

Supply Ability: 10sets

Get Best Price
High Light:

620degree Oil Fired Hot Air Furnace

,

620degree electric hot air furnace

,

ISO9001 Oil Fired Hot Air Furnace

Condition:
New
Warranty:
1 Year
Voltage:
Customized
Machine Type:
Furnace
Heating System:
Steam,Electronic,oil
Standard:
GMP
Material:
Stainless Steel
Dimension:
Requirement From Customer
Application:
Pharmaceutical, Food, Chemical
Hot Air Temperature:
10-620℃
Condition:
New
Warranty:
1 Year
Voltage:
Customized
Machine Type:
Furnace
Heating System:
Steam,Electronic,oil
Standard:
GMP
Material:
Stainless Steel
Dimension:
Requirement From Customer
Application:
Pharmaceutical, Food, Chemical
Hot Air Temperature:
10-620℃

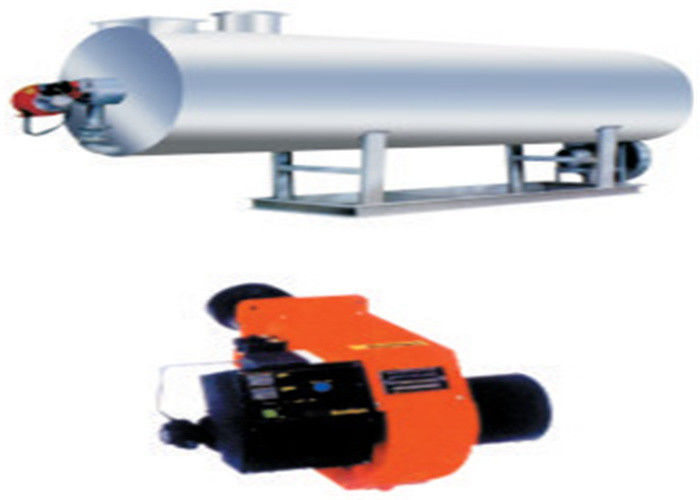

ISO9001 10-620degree electric Oil Fired Hot Air Furnace For Industrial Chemicals

Hot Sale Energy-saving High efficiency RLY Oil Fired Hot Air Furnace for tremella and industrial chemicals



Descriptions

Our company’s RLY series oil fuel hot air furnace is a highly efficient equipment which combines burning and heating exchange two functions together. Heating efficiency can reach to 65-75%,the output temperature of hot air can be 300°C, for special designed furnace, it can reach to 500-800°C, smoke and air are separated, therefore, when heat exchanged, inside of burner is clean hot air; this machine can be totally applied with other drying equipments together.





Working principle

When the fuel is burned in firebox,high temperature smoke gas is produced. Those smoke gas is sent byhot air furnace which has strong exchange heating function to dried air. After quantity of heat is emanated,hot fueling gas temperature is decreased to 250°C and those gas are exhausted by fan. Fresh air is sent to hot air furnace by selected blow fan machine. After absorbed heating energy, when air temperature reaches to specific degree, it is sent to outlet of hot air,while hot air temperature meet the highest limited point,the burner will stop burning automatically or turn to small fire burning, when hot air temperature decreases to the lowest preseted degree, burner start running again, the speed of heating can be adjusted by air inlet valve.

ISO9001 10-620degree electric Oil Fired Hot Air Furnace For Industrial Chemicals 0


Technical Parameters



Model
Burner
Oil Combustion kg/h
Capacity
104kcal/h
Overall Dimension
L×W×H mm
Hot Air Inlet
L×W mm
Total Weight
kg
RLY1
RIELLO.G3/DL3FS
1.3-1.6
1
1200×1200×1600
Φ200
460
RLY4
RIELLO.G10/DL10FS
5-6.5
4
1700×1300×1600
Φ250
850
RLY10
RIELLO.G20/DL23FS
13-16
10
2300×1568×1870
Φ300
2200
RLY20
RIELLO 1G/DL34FS
26-32
20
2800×1568×1870
Φ400
2670
RLY30
RL50/DL55FT
39-48
30
3400×1568×1870
Φ450
3060
RLY40
RL70/DL75FT
52-64
40
4440×1768×2070
Φ550
5600
RLY60
RL100/DL100FT
78-96
60
5140×1868×2070
Φ600
8460
RLY100
PRESS 4G/DL 120FT
130-140
100
6440×2480×2300
550×600
12800
RLY160
P300/DL250FT
200-270
160
7470×2920×3480
750×900
15780
RLY200
P300/DL300FT
260-300
200
8175×2920×3480
750×900
18500
RLY360
G1510
480-620
360
9300×2920×3480

21000


Note: because the raw material exist in difference, the output in the table is for reference only





ISO9001 10-620degree electric Oil Fired Hot Air Furnace For Industrial Chemicals 1



Characteristics

Convenient operation and low labor cost. Structure compact and small occupied area. advanced burning machine, fuel can be fully consumed no environment pollution.





Application:



This equipment main function are heating and removing damp. It is widely applied in agricultural, medical and chemical industry, such as grain, seeds, feedstuff, fruits, dehydrated vegetable, mushroom, agaric, white fungus, tea, tobacco leaf, foodstuff, medicines, chemical raw materials.







ISO9001 10-620degree electric Oil Fired Hot Air Furnace For Industrial Chemicals 2


Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.

Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (
2). Delivery on time. (3). Provide full set of documents as customer’s requirements.



After-sale service:
Provide considerate services to minimize clients’ worries.

1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.



Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.

2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.

3. Send every client a preferential quotation.



ISO9001 10-620degree electric Oil Fired Hot Air Furnace For Industrial Chemicals 3
