Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: HDJ
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Mixer |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
Power: |
0.37-11kw |
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Mixer |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
Power: |
0.37-11kw |

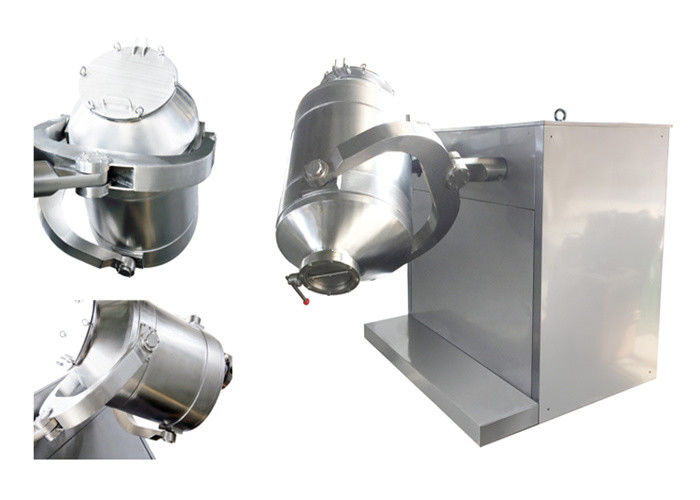

Pharmaceutical Automatic Mixing Equipment Multi Direction Mixer For Chemical Powder
Description
Because the mixing drum has multi directional motion, it makes raw material inside the drum has many crossmixing points, therefore the mixing effect is good. Its degree of uniformity may be over 99.9%. Its Max loading efficiency may be 0.9 (The loading effciency of ordinary is 0.4~0.6). Its mixing time is short is short and its efficiency is high.
The design of mixing drum is unique. Its inner wall is polished finely. Its advantages are no dead corner, no pollution to raw material, convenient in discharge, easy in clean and so on.During the period of operation, because the mixing drum has multidirectional actions of motion, it speeds up the fluid and diffused effect of raw material. Meanwhile it avoids the phenomenon of segregation and accumulation caused by centrifugal effect in ordinary mixer and no dead corner .It can guarantee the best quality of mixed raw material.
Structure: this machine consists of stand, transmission system, electric control system, multidirectional motion mechanism, mixing drum and so on. The mixing drum contacted with raw material is made is made of stainless steel. The inner and outer wall of drum is polished.
Technical Parameters
Note: because the raw material exist in difference, the output in the table is for reference only
Features
1, The running actions of the mixing tank in multi direction, good mixing effect,
2, Featuring unique structure, high mixing function and uniform mixing,
3, This machine has beautiful appearance, uniform mixing and wide application
The rotating cylinder of EYH Two Dimensional Mixer can achieve two motions at the same time. One is the rotation of cylinder and the other is swinging of the cylinder along the swinging rack. Materials to be mixed will be rotated when they cylinder is swinging. As the result of these two motions, materials can be mixed fully in a short time. EYH Two Dimensional Mixer is suitable for mixing of all powder and granule materials.
Application
Our machine is a novel materials mixing machine widely applicable to industries such as pharmaceutical, chemical, foodstuff and light industry as well as R&D institutes. The machine is a very uniform mixing of power or granular materials with a good mobility.
Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.
Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
